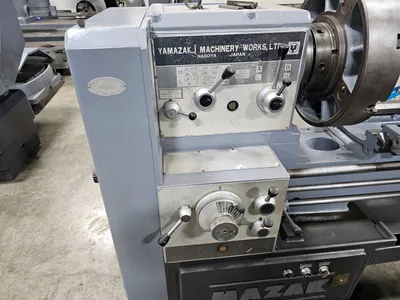

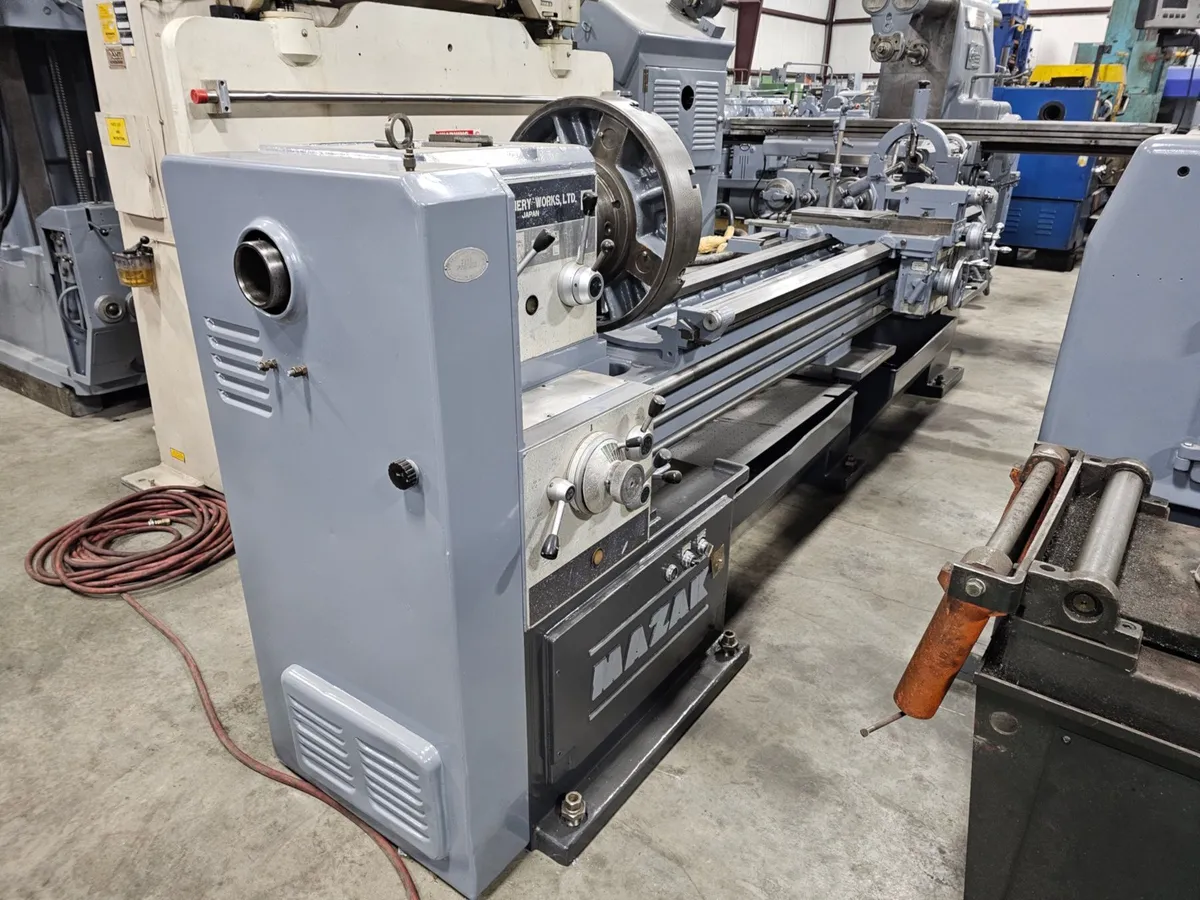

21" X 100" Mazak Engine Lathe Model 21100

Swing Over Bed Ways..........................................21"
Swing Over Cross Slide.......................................14"
Center Distance..............................................100"
Width Of Bed.................................................14.5"
Compound Rest Top Slide Travel...............................4.31"
Cross Slide Travel...........................................14.18"
Spindle Hole.................................................3-1/8"
Spindle Speeds...............................................25 To 1,500 Rpm's
Spindle Nose.................................................D-1-6
Chuck Size ..................................................15" 3-Jaw
Chuck Size...................................................15" 4-Jaw
Feeds (76) Longitudinal......................................0.003 To 0.0424
Feeds Cross..................................................0.00150 To 0.0212
Lead Screw Diameter..........................................1.37" X 4 TPI
Threads Inch (40)............................................4 To 56 T.P.I.
Threads Metric (20)..........................................0.5 To 6 T.P.I.
Module (20) .................................................0.05 To 7 M
D.P. (19)....................................................4 To 28 DP
Tail Stock Quill Diameter....................................3"
Tail Stock Quill Travel......................................5.87"
Tail Stock Taper.............................................# 5 Morse
Main Motor...................................................7.5 Hp. 220 / 440
Floor Space Width X Length...................................R-L 150" X F-B 48"
Machine Height...............................................65"
Weight.......................................................6,400 Lbs.
Steady Rest 6" Roller Type...................................Yes
Coolant Pan..................................................Yes
Taper Attachment.............................................Yes
Thread Dial..................................................Yes

Note: Machine has been cleaned, painted and cycled.

Condition: Fair
