2023 Weiler Model E-90X236 CNC Flatbed Lathe

Manufacturer...............................Weiler
Model......................................E 90
Year.......................................2023

Control Type...............................Weiler

Maximum Swing..............................35.43"
Swing Over Cross Slide.....................20.09″
Cross Slide Travel.........................23.2"
Turning Length / Center Distance...........236″
Width Of Bed...............................23.6″
Spindle Speed..............................1 ~ 500 RPM
Feed Range.................................0.00004 To 2.0
Threading Range............................1/64 To 112 TPI
Rapid Traverse Range Z / X Axis............394 / 197 IPM
Spindle Bore...............................14.2″
Chuck Size Front...........................32" 4-Jaw
Chuck Size Rear............................32" 4-Jaw
Tail Stock Quill Diameter..................5.5″
Tail Stock Quill Travel...................7.87″
Tail Stock Inside Taper Of Quill...........6 MT
Spindle Motor(2 Gear Stages)...............50/60HP
Wired......................................230 Volts / 3 Phase
Dimensions.................................R-L 336″ x F-B 91″
Height.....................................75″
Weight.....................................26,750 lbs.
Steady Rest with Roller Jaws...............8.66”-15.75”

EQUIPPED WITH:

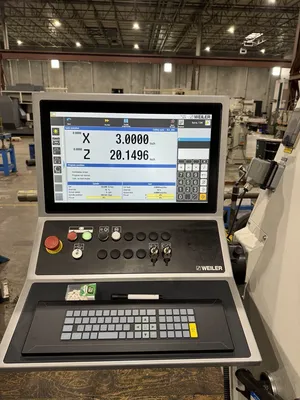

•Weiler ONE1 Conversational CNC Control
•Parat Size 4 Quick Change Indexable Tool Post
•4 x WDR 4/40 Turning & Facing Holders
•2 x WB 4/60 Ø 2.0” Diameter Boring Bar Holders
•32” 4-Jaw Oil Country Independent Chuck w/ 14.37” Hole (Front)
•32” 4-Jaw Oil Country Independent Chuck w/ 14.37” Hole (Rear)
•Steady Rest with Roller Jaws 8.66”-15.75” diameter
•Rear Quill adjustable from front
•Extended Quills for Roller Jaws 0.787”-8.66” diameter
•Chip Conveyor for 236” Center Distance Machine
•Removable 4” diameter Boring Bar Block
•Increased Capacity Coolant

Replacement cost over $800,000.00 and one year delivery.
