New WELLS 613 | New Machinery Saws, Horizontal Saw
Have one to sell?
ConditionNew
1 available
New

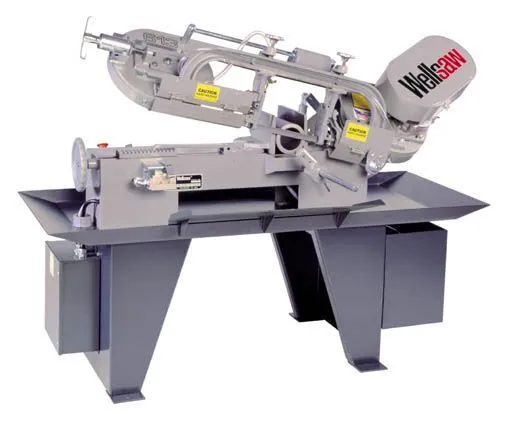

New Wellsaw Model 613, 7” x 13” Capacity, ¾” blade
Features:
Adjustable Sawing Force Control via
Counterbalance Spring and Sliding Weight
Hydraulic Feed Rate Control
Ball Bearing Blade Guides, Field Adjustable
Perimeter Ring Gear Blade Drive
1 HP Baldor® Motor
Complies with DOE Small Motor Rule
Four Blade Speeds
Rite-Tension® Blade Tensioning Device
Wet Cutting System
Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Vise Jaws
Quick Acting Vise
Positive Frame Lock
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Sample Coolant for Initial Start-Up
Specifications:
Capacity:.........................................Round 7"
Capacity:.........................................Flat 13"
Capacity Rectangular:............................ 6"H x 13W"
Capacity 45° Angle:.............................. 6" x 6.5"
Blade Size:.......................................3/4" x .035" x 8' 3" (99")
Blade Speeds:.....................................50-90-160-250 SFPM
Blade Guides:.....................................Six Sealed Ball Bearings
Blade Tension:....................................Manual Rite-Tension ®
Electrical Options:...............................115-208-230/60/1
Electrical Options:...............................208-230-460/60/3
Coolant System:...................................Tank Capacity 8 gallons
Submersible Pump:.................................115V/.6 Amp/170 GPH
Vise Control:.....................................Quick Acting / Manual Screw
Swivel Vise:......................................To 45°
Feed Control:.....................................Variable Hydraulic
Band Wheels:......................................11" Diameter Cast Iron
Bed Height:.......................................29"
Shipping dimensions:..............................R-L 63" X F-B 35"
Height:...........................................60"
Shipping Weight:..................................680 lbs.
Voltage and Phase.................................Wellsaw Part Number
1HP 115/60/1......................................DL 613-721
1HP 208/60/1......................................DL 613-838
1HP 230/60/1......................................DL 613-738
1HP 208/60/3......................................DL 613-739
1HP 230/60/3......................................DL 613-720
1HP 460/60/3......................................DL 613-740
Options for consideration:........................Part Number............Price
Infinitely Variable Blade Speed Drive.............DL 613-498.............$845.00
Powered Vise / pneumatic..........................DL 613-736.............$1,819.00
Overhead Bundle Clamp Air Powered........................................$1,969.00
(To be mounted on infeed conveyor. Sold separately)
Work Light with 250va transformer.................DL 613-781.............$208.00
Flush Hose Kit (w/ hi-output pump)................DL 613-905.............$316.00
Micro Lubricant System (MQL)......................DL 613-902.............$906.00
Lubricant for Micro System – 1 gallon.............100318-028.............$71.00
Tiger-Tooth® Bi-Metal Blades, Set of six (6)......098004-030W............$372.00
Sawing Coolant/ Semi-synthetic/ water soluble
1 gallon jug (makes 10 -15 Gals.).................100318-027.............$42.50
5 gallon pail (makes 50 to 80 Gals.)..............100318-026.............$197.00
Spare Parts Kit..........................................................$280.24
Material Handling Options:
Mid-Duty Stock Stand,
single 18" wide roller, 250# capacity.............098047-001.............$216.00
Heavy-Duty Stock Stand:
6" wide roller, 1000# capacity....................M-325..................$586.00
(Use part number M-325H if saw will have casters or vibration mounts)
12" wide roller, 1000# capacity...................M-326..................$607.00
(Use part number M-326H if saw will have casters or vibration mounts)
Gravity Roller Conveyors, freestanding
2” rollers on 6” centers.........................098050-006..............$679.00
10 ft. w/ 3 legs/ 6,600 lb rolling capacity......098050-007..............$1,132.00
Mounting Options:
Casters, set of four (2 locking).................100113-003..............$186.00
OR
Vibration Mounts.................................0988041-004.............$110.00
Disconnect Options:
Fused Disconnect Lever Type (NEMA 1).....................................$790.00
OR
Fused Disconnect Rotary Type (NEMA Type 12)..............................$846.00
Notes of Freight Quotes. If this quote includes freight charges please consider the following:
Unless specified in the quote,
Freight is quoted only for the item (s) at the time of the request.
Should the customer add options to the order the freight amount will increase.
This quote is valid for 10 days.
Freight is quoted only for the item(s) at the time of the request. If your customer changes the order or adds options to the order this quote is no longer valid.
This freight quote is based upon shipment to a BUSINESS location in the ZIP code you provided. The carrier assumes that the business has a loading dock and fork truck to unload the package.
There will be additional charges if the carrier determines that the ship-to location is Non-Commercial, also referred to as “residential” or “farm”.
There will also be additional fees for:
No dock
Lift gate services
Advance-notice phone calls
Delivery to schools, training centers, church or government offices
Delivery to location needing an appointment and/or escort such as: military facility, secure commercial facility (i.e. large mill or plant)
These policies are controlled by the carrier not by Wellsaw.
OSHA STATEMENT
Wellsaw bandsaw machines meet the OSHA safety standards that are in effect as of the time of this writing. Compliance with OSHA requirements is the legal responsibility of the user. All Wellsaw bandsaws now include as standard equipment, blade guards, low voltage protected switches with automatic cut-off at the completion of a cut, enclosed belt and pulley guards and grounded electrical features.
