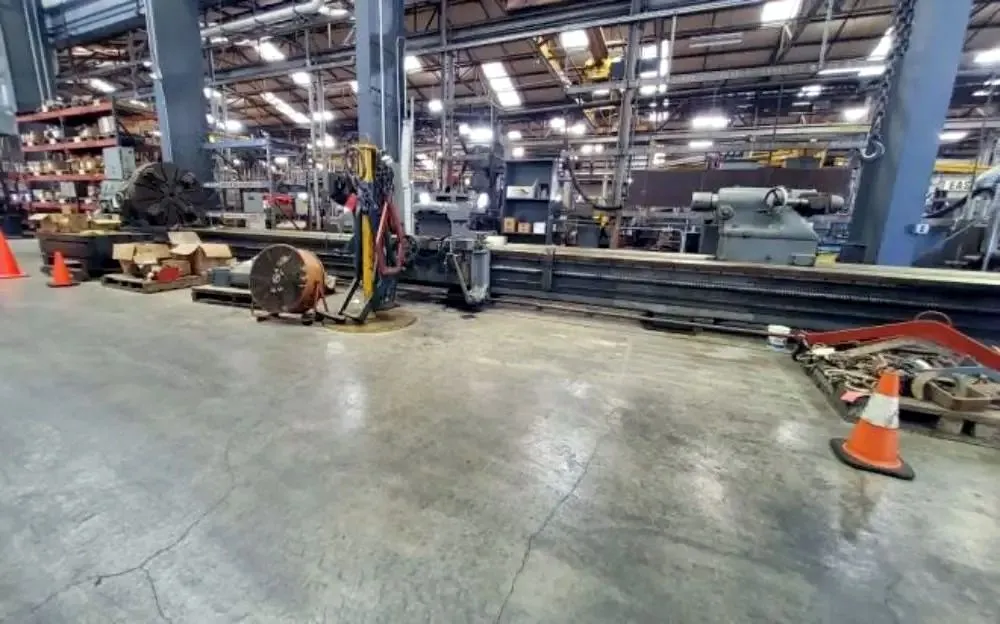

48" X 420" American Engine Lathe

Swing over bed ways, rated................................48"
Swing over bed ways, actual...............................50"
Swing over cross-slide....................................35.5"
Distance between centers..................................420" (35')
Hole thru spindle.........................................2-5/8"
Tailstock spindle diameter................................9.5"
Tailstock spindle travel..................................20"
Tailstock, spindle taper..................................#6 MT
Spindle speeds, range.....................................0.63 TO 163 RPM
Carriage longitudinal feeds, range........................0.006 TO 0.338 IPR
Threading range...........................................5 TO 28 TPI
Main motor, horsepower....................................50 HP
Electrical system.........................................440/3/60
Floor space required......................................R-L 45' X F-B 6'
Weight, approximately.....................................68,000 Lbs.

Note:
Machine will be cleaned,painted and cycled.
