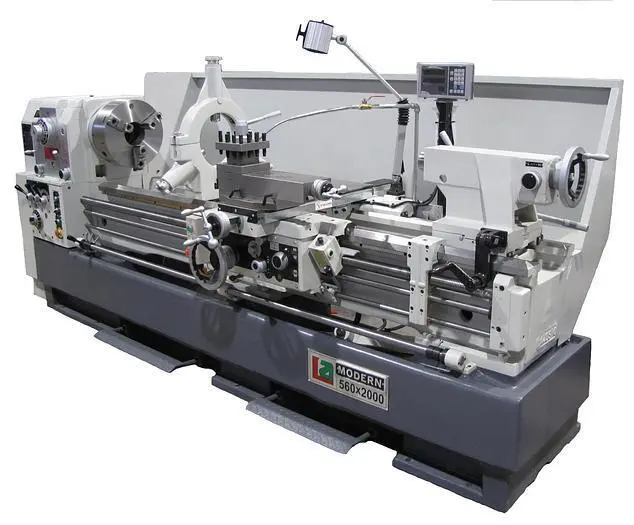

22" X 80" New Modern Engine Lathe

Swing Over Bed Ways........................................22"
Swing Over Cross Slide.....................................13"
Swing In Gap & Width.......................................30-7/8" X 10-5/8"
Width Of Ways..............................................15-3/4"
Max Travel Of Compound Slide...............................7-1/2"
Max. Cross Travel Of Lower Slide...........................10"
Center Distance............................................80"
Chuck Size.................................................15" 3-Jaw
Chuck Size.................................................16" 4-Jaw
Spindle Hole...............................................4-1/16"
Spindle Nose...............................................D-11
Spindle Speeds.............................................13 To 1,200 Rpm's
Feeds Cross................................................0.0015 To .00913
Feeds Long.................................................0.035 To.980
Threads Inch...............................................2 To 72 TPI
Threads Metric.............................................0.2 To 14 MM
Module.....................................................0.25 TO 10 MM
D.P........................................................3-1/4" To 96 DP
Tail Stock Quill Travel....................................5"
Tail Stock Taper...........................................# 5 Morse
Tail Stock Quill Diameter..................................2-15/16"
Main Motor.................................................15 Hp.
Machine Dimension..........................................R-L 144" X F-B 48"
Machine Height.............................................60"
Weight.....................................................8,030 Lbs.
Rapid Traverse Z-Axis......................................Yes
Full Length Splash Guard...................................Yes
Telescopic Taper Attachment................................Yes
Steady Rest................................................Yes
Hardened And Ground Ways (RC 32)...........................Yes
Thread Dial................................................Yes
Coolant....................................................Yes
4-Way Tool Post............................................Yes
Dead Center................................................Yes
Live Center................................................Yes
Work Light.................................................Yes
Fagor D.R.O. 2 Axis........................................Yes

Optional:Prices subject to change without notice:
ToolPost & Holders:
Aloris DA #5-SET (Tool Post and 5 holders).................$2,740.00
Chucks:
*Gator 20" 4-Jaw With two-piece jaws DM D1-11..............$3,750.00
*Gator 16" 3-Jaw With two-piece jaws DM D1-11..............$3,950.00
