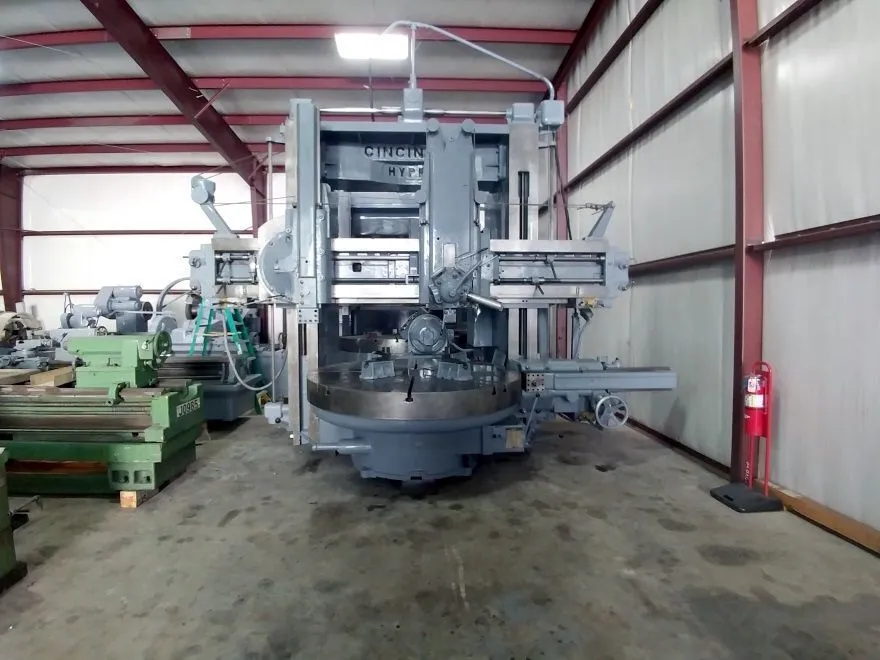

Cincinnati Hy-Pro Model 72 Vertical Turret Lathe

Table Size...........................................72"
Boring Mill Jaws.....................................4
Max. Swing...........................................76"
Height Under Rail....................................62"
Table Speed..........................................1.94 To 56
Rail Travel..........................................66"
Feeds................................................0.004 To .750 I.P.M.
Right Ram Head Swivel................................45 +/-Degrees
Right Turret Head Travel Left To Right...............45"
Right Turret Head Travel Up & Down...................34"
Ram Diameters........................................7"
Left Ram Head Swivel.................................45 +/-Degrees
Left Ram Head Travel Left To Right...................45"
Left Ram Head Travel Up & Down.......................34"
Side Head Travel Up & Down...........................55"
Side Head Travel In & Out............................37"
Main Motor...........................................40 Hp.
Machine Width Left To Right..........................14'
Machine Depth Front To Back..........................10.6"
Machine Height.......................................12'
Machine Weight.......................................75,000 Lbs.
Rapids...............................................Yes
Pendant Control......................................Yes
Floor Mount..........................................Yes (No Pit)

Note:
Photos is for reference only. It shows what the machine
will look like once it is back together and cleaned and painted.
Machine was disassembled for shipment. We will be
putting the machine back together shortly.
Machine will be plug and play once delivered.

Optional: Not Included In Trade In.
Newall 800 2 Axis DRO with 1 Displays
(On The Turret Head)
Price Installed.......................................$6,000.00

Optional: Not Included In Trade In.
Newall 800 2 Axis DRO with 1 Displays
(On the Ram Head)
Price Installed.......................................$5,600.00

Optional: Not Included In Trade In.
Newall 800 2 Axis DRO with 2 Axis Display
(Side Head)
Price Installed.......................................$4,800.00
