24.2" X 30.3" LEAD WELL LTC-25IS HORIZONTAL TURNING CENTER With Fanuc OiTF CONTROL
Have one to sell?
ConditionNew
1 available
New

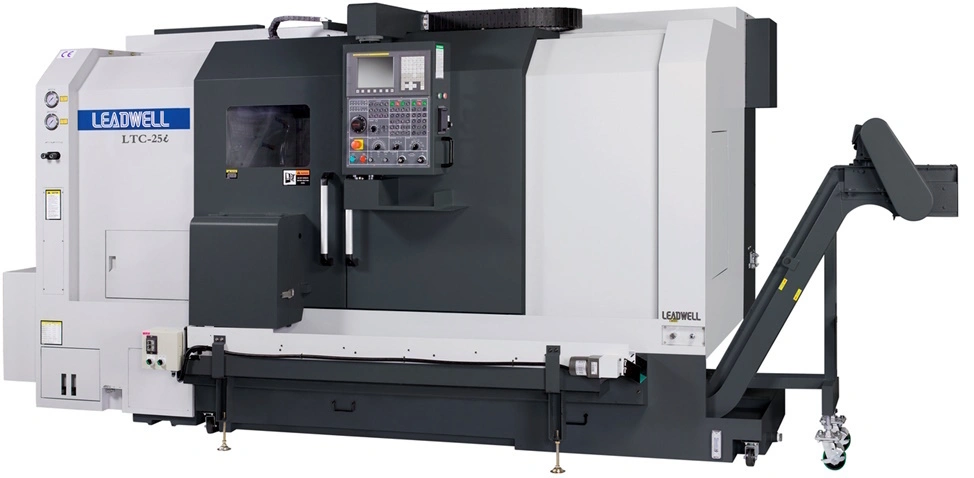

LEAD WELL LTC-25IS HORIZONTAL TURNING CENTER
HIGH LIGHT FEATURES AND INCLUDED EQUIPMENT
Fagor 8060 Control Or Fanuc 0iTF Control
Max turning capacity: Diameter 24” x 30”
Heavy duty spindle motor: 30 Hp.
Heavy duty Cut 0.5 diameter @7.2”, 450RPM
12” hydraulic chuck on both main and sub spindle.
A2-8 spindle nose, 85mm (3.35”) bar capacity.
Hi/low pressure control on hydraulic chuck.
Automatic Renishaw tool setter on main spindle.
Chain type chip conveyor with chip bucket.
4bar high pressure coolant system.
Auto lubrication system.
Heat exchanger for electrical cabinet.
Foot switch for chuck open/close.
Manual pulse generator (MPG = electronic handwheel)
Tool holder package.
45° MASSIVE SLANT BED
The rigid meehanite cast iron 45° slant bed - with large X and Z axis + tail stock
box ways for heavy component support - allows chips to fall directly into the
chip tank, avoiding accumulation inside the machine.
The chip tank employs large wheels making it easy to move it for chip removal
and cleaning.
All the chips are channeled to the included belt-type lift-up chip conveyor which
disposes these outside the machine on the right side.
DIRECTLY COUPLED SERVO MOTORS
The Leadwell LTC series servo motors are directly connected to the ball screws
with rigid shaft couplings. These couplings ensure that even under severe loading
from sharp corner machining precise interpolation is achieved. This design is
superior to both belt driven and flexible shaft coupling designs.
SPINDLES
Leadwell produces superior spindles. Built with high precision P4 grade bearings
the one-piece cartridge ensures precise alignment for smooth run-out free operations.
The massive headstock, rigid spindle and superior bearing design along with high
rpm all facilitate heavy stock removal and precision tolerances.
Both the headstock and spindles are machined in a temperature controlled
environment and are assembled in a clean room.
TOOL SETTER
The included removable tool setter has a touch sensor that can measure various tool lengths and detect broken tools. It can be easily programmed to store all the tool information to reduce tool change-over time.
LASER CALIBRATION
Lasers are used to measure the positioning accuracy of every machine over the full
length of travel of each axis. Leadwell uses these measurements to compensate any
axis error so that each machine meets the high accuracy requirements. Each machine
is shipped with a positioning accuracy chart.
MACHINE GEOMETRY CHECKING
Precision indicators are used to verify that spindle runout and headstock to tailstock alignment meet all the specifications.
CUTTING AND COOLANT TESTING
Each machine must complete rigorous cutting tests to ensure machine integrity.
Coolant tests guarantee that all components are working properly and machines
are 100% leak proof.
LEADWELL LTC-25IS TURNING CENTER
WITH A2-8 SPINDLE NOSE 3.35” SPINDLE BORE WITH /12 “HYDRAULIC
CHUCK WITH FAGOR 8060 CONTROL
SPECIFICATIONS
Capacity
Maximum Swing...................................670mm (24.2”)
Maximum Turning Diameter........................450mm (24”)
Maximum Turning Length..........................1020mm(30.3”)
Bar Capacity....................................85mm (3.35”)
Travel
X-Axis Travel With Heavy Duty Box Guide Ways....12.01” + 0.4"
Z1-Axis Travel With Heavy Duty Box Guide ways...31.5”
Z2-Axis Travel With Heavy Duty Box Guide Ways...30.7”
LEFT SPINDLE
Spindle Nose....................................A2-8
Maximum Spindle Speed...........................4,000 rpm
Spindle Motor...................................30 Hp.
Hydraulic Chuck Diameter........................12”
Bar Capacity....................................3.35”
RIGHT SPINDLE
Spindle Nose....................................A2-8
Maximum Spindle Speed...........................4,000 rpm
Spindle Motor...................................25 Hp.
Hydraulic Chuck Diameter........................12”
Bar Capacity....................................3.35”
TURRET
Number Of Tool Stations.........................12
Shank Height For Square Tool....................25mm (1”)
Shank Diameter For Boring Bar...................50.8mm (2”)
Turret Indexing Time To Adjacent Tool...........1.3 Second
Turret Indexing Time 180 Degree.................3.1 Second
X-Axis Rapid Feed Rate..........................590” Per Minute
Z1-Axis Rapid Feed Rate.........................787” Per Minute
Z2-Axis Rapid Feed Rate.........................787” Per Minute
Length x Width x Height.........................200” x 82.1” x 93.1”
Weight..........................................19,621 Lbs.
STANDARD & INCLUDED EQUIPMENT:
Fagor 8055 Control Or Fanuc OiTF
Foot Switch For Chuck Open / Close
Renishaw Tool Setter ON Mian Spindle
Programmable Tailstock
Chain Type Chip Conveyor And Bucket
4 Bar High Pressure Coolant System
Auto Lubrication System
Heat Exchanger For Electrical Cabinet
Tool Holder Package
Note: The above machine specifications are subject to change without notice.
