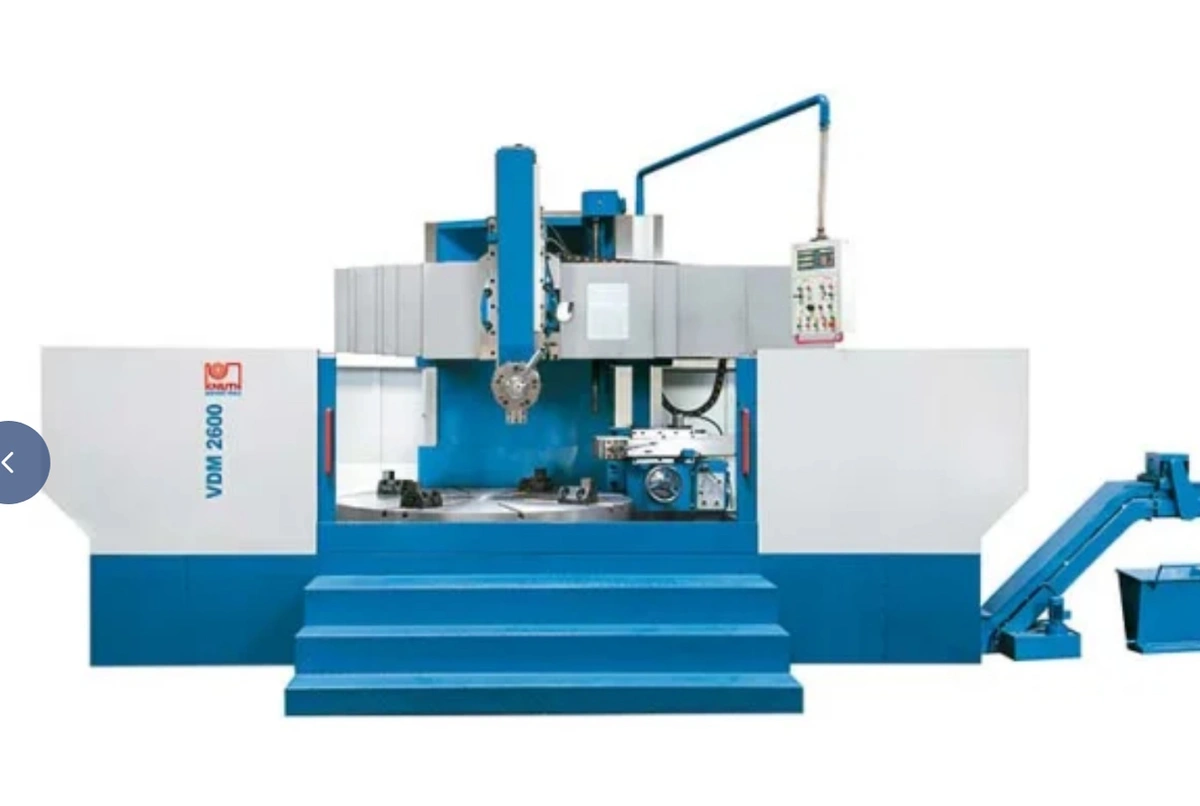

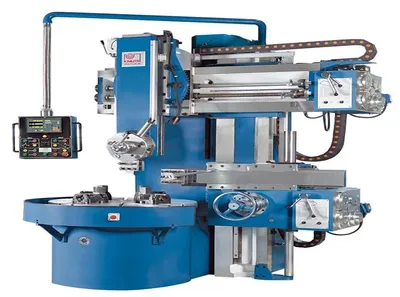

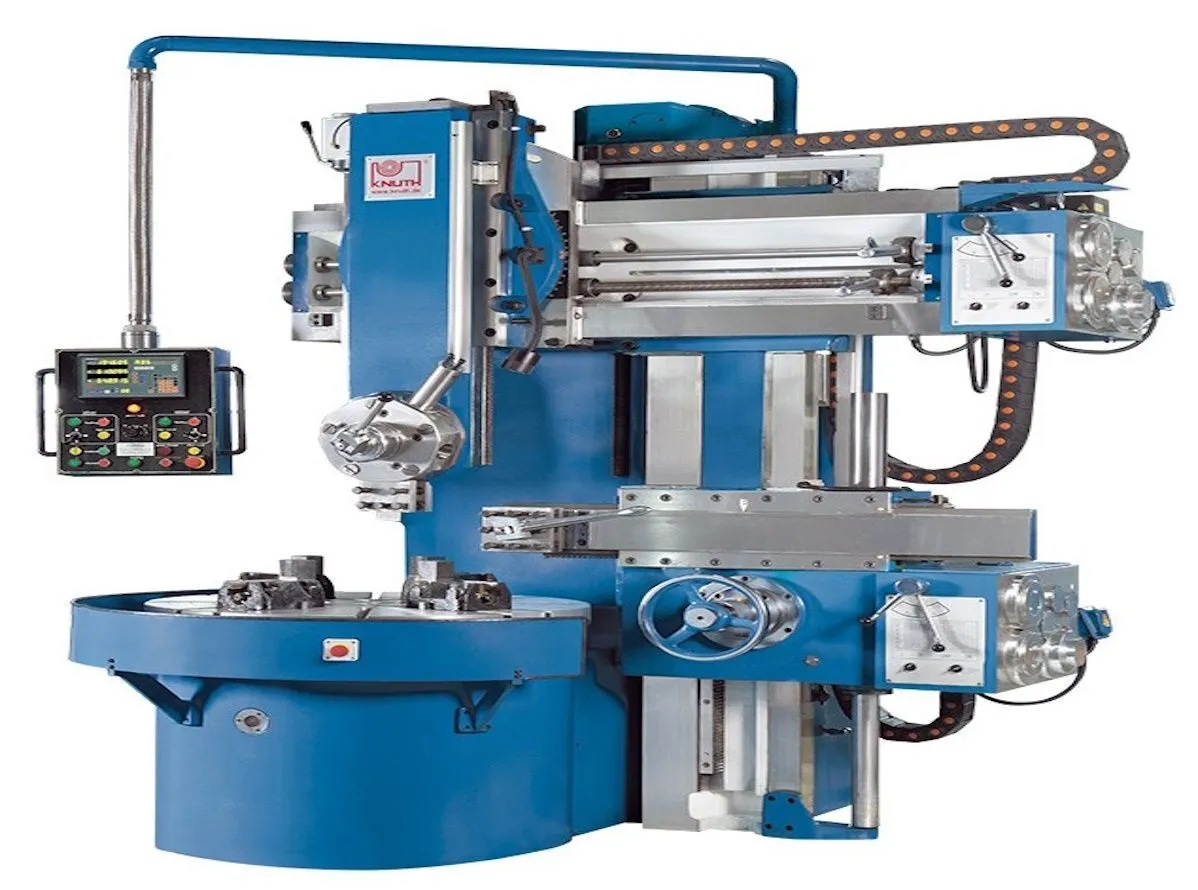

Knuth Model VDM 2600 S 102" Vertical Turret Lathe
The VDM series of vertical lathes offers modern, conventional solutions for machining large workpiece diameters and heavy workpiece weights. Their design enables particularly easy and safe loading and unloading. The feed drive is a high-torque servo motor and a powerful hydraulic system clamps the crossbeam. The main drive provides high torque for heavy machining and a side support is available for machining the outer contour. The standard mounted 3-axis position indicator ensures precision.
Optimum assembly with crane and forklift
Infinitely variable feed control via servo motor
Long, sturdy vertical boom
Side support with boom and independent feed
Reduction gear drive for high torque
Product Details
Infinitely variable feed control via servo-motor.
Optimum tooling and easy access for cranes and forklift trucks.
Heavy-duty column with wide, hardened guideways.
Hydraulic clamping of cross traverse.
Rigid guide construction ensures maximum rigidity and accuracy of
the vertical boom.
Spindle runs in a high-precision two-row roller bearing and is adjustable.
Reduction gear drive ensures high torque and a speed range of 10 - 315 rpm.
Servo motor technology ensures powerful, infinitely variable feed of the
vertical boom.
WORKING AREA
Table diameter (max.)...................................90"
Turning diameter of upper tool holder...................102"
Turning diameter of side tool holder....................91"
Machining height (max.).................................59"
Turret Swivel range of upper tool holder................+/- 30°
Workpiece length (max.).................................59"
Workpiece weight (max.).................................22,000 lbs.
HEADSTOCK
Speed range.............................................10 rpm - 315 rpm's
Spindle torque (max.)...................................23,602 ft.lb
TRAVELS
Turret Travel X1 axis, upper support....................51"
Turret Travel Z1 axis , upper support...................39"
Side Head Travel X2 axis , side support.................29"
Side Head Travel Z2 axis , side support.................46"
Rail Travel Travel W-axis, traverse.....................43"
FEED
Feed speed X-axis.......................................0.0315 in/min - 3.3858 in/min
Feed speed Z-axis.......................................0.0315 in/min - 3.3858 in/min
Feed speed W-axis.......................................17 in/min
DRIVE CAPACITY
Motor rating main drive.................................49.6 Hp
Motor rating X-axis.....................................1.7 Hp
Motor rating Z-axis.....................................2.41 Hp
MEASURES AND WEIGHTS
Overall dimensions (length x width).....................R-L 312" X F-B 209"
Height..................................................213"
Weight..................................................60,500 lbs.
TOOL HEAD
Tool holder.............................................1.2 in x 1.6 in
Tool weight max.........................................110 lbs.
Standard Equipment
3-axis position indicator X.Pos 3.2
Fully enclosed housing
Chip conveyor
Tool holder vertical
Tool holder horizontal
Automatic central lubrication
Work lamp
Anchor bolts
Operating tools
Operator manual
Note: Prices Subject to change without notice.
Delivery 9 months after receipt on Purchase Order and Down Payment.
