COSEN SH-650M 16.5" X 16.5" Semi Automatic Scissor Style Mitering Band Saw
Have one to sell?
ConditionNew
1 available
New

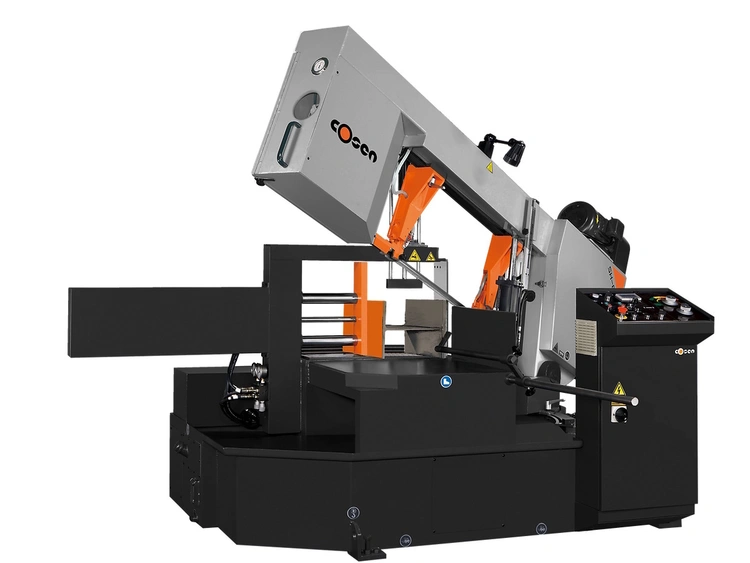

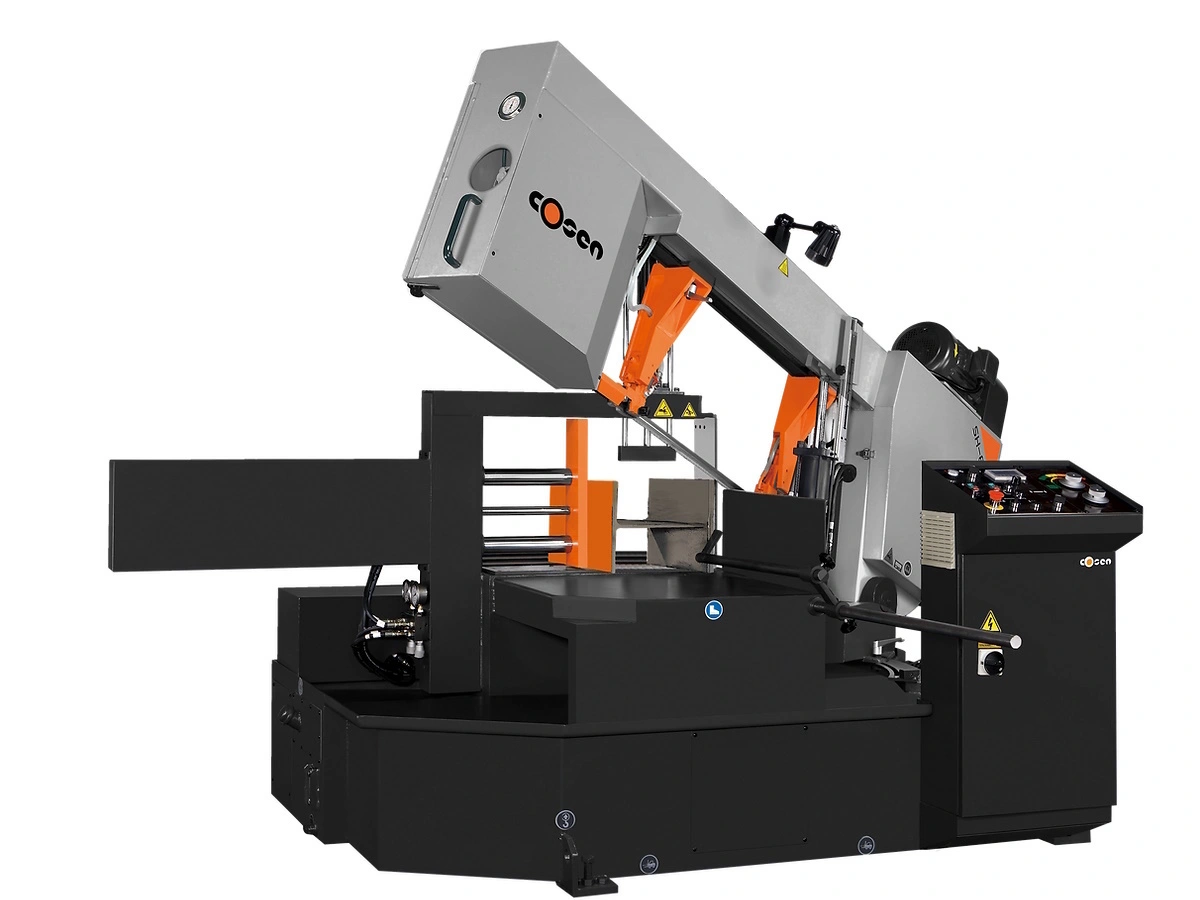

COSEN SH-650M 16.5" X 16.5" Semi Automatic Scissor Style Mitering Band Saw
FEATURES
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-650M fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Machine Features:
Swivel saw head allows miter cutting from 0 degrees to 60 degrees
Hydraulic cylinder plus precision ground hinge support
Hardened worm gear for durability
Variable speed blade drive
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Cast-iron hydraulic vise
Dual valve feed pressure and feed rate system for optimal cutting performance
Automatic hydraulic blade tensioning device
Machine Specifications:
Maximum Cutting Capacity Round...........................16.5" X.16.5"
Round Angle..............................................90 ° +/- 16.5"
Round Angle..............................................45 ° +/- 15.7"
Round Angle..............................................60 ° =/- 9.8"
Rectangle (H x W)........................................0° 15”X25.6”
Rectangle (H & W)........................................45° +/-15"X 15.7"
Rectangle (H X W)........................................60° +/- 15" X 9.8"
Blade Inverter Controlled Speed w/ LED readout...........79 – 394 fpm
Blade Size...............................................17'4" X 1.25" X .042"
Work Bed Height..........................................29.5”
Motor Saw Blade..........................................7.5 HP
Hydraulic................................................1 HP
Coolant..................................................1/8 HP
Coolant Tank Capacity....................................15.9 Gallon
Hydraulic Tank Capacity..................................11.9 Gallon
Power....................................................230V, 3 PH, 60 Hz
Max AMP..................................................Draw 230V-25.37 Amp
Power Option.............................................460, 3 PH, 60 Hz
Max. AMP Option..........................................Draw 460V- 12.68 Amp
Floor Space..............................................R-L 112” x 62.9”
Height...................................................69.5”
Weight...................................................3,977 Lbs.
Auto. Material Feed System Job Storage NA
(Not Available on Semi-Auto Saws) Single Index Stroke NA
Multiple Stroke Indexing NA
Included Accessories:
Adjustable material stop
Adjustable work light
Additional flushing hose for cleaning
Bi-metal saw blade
Tool box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Hydraulic powered Chip Auger
Hydraulic top clamps for bundle cutting
Inverter blade drive system with LED blade speed indicator
Optional Accessories*
Variable Vise Pressure Regulator (Part# AHA-10400KIT2)...$1,995.00
Extra Wide Heavy-duty Roller Table 5’ long
(Part# RT-5-26PM) Capacity- 4200 lbs.....................$3,195.00
Extra Wide Heavy-duty Roller Table 10’ long
(Part# RT-10-26PM) Capacity- 7700 lbs....................$4,695.00
Buck Boost Transformer for incoming power of
208V or below............................................$2,495.00
Voltage change to 460V 3PH...............................$995.00
Micro Droplet Applicator.................................$3,295.00
Cosen Cool Misting Fluid 1 gal...........................$99.00
Cosen Cool Misting Fluid 5 gal...........................$449.00
Shipping Cost
*Please note that machine design and specs can change without notice*
