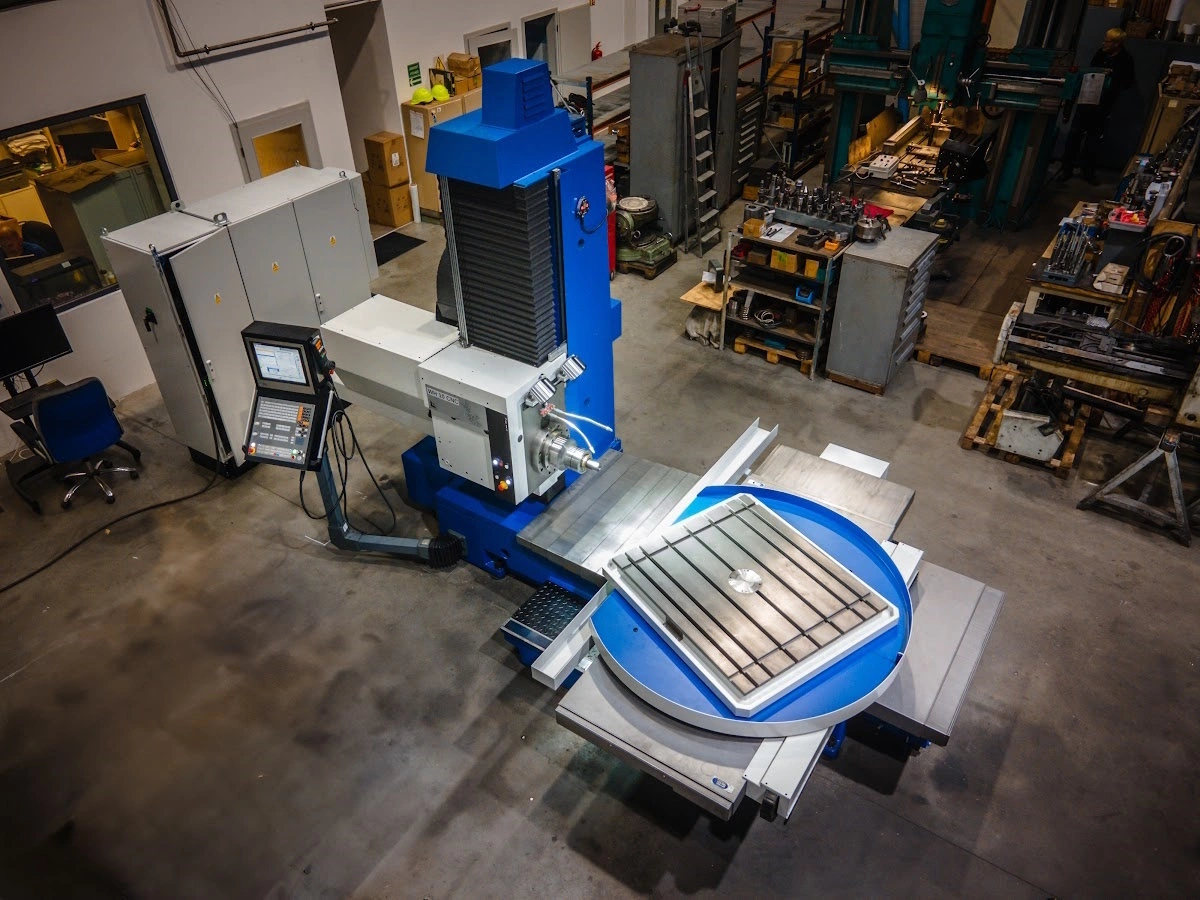

Tos CNC Horizontal Boring Mill Model WH 10 Rebuilt 2024

Specifications:

Control System...............................................Heidenhain iTNC 620
Diameter Of Working Spindle..................................3.9"
Travel X-Axis................................................49"
Travel Y-Axis................................................44"
Spindle Speed /Min...........................................16 - 2500 RPM
Spindle Travel - W Axis......................................23"
Travel Z-Axis................................................37"
Spindle Taper................................................ISO 50
Rapid Traverse...............................................314 IPM
Main Motor Power.............................................28 HP
Clamping Area Of Table.......................................39" x 44"
Max. Weight Of Workpiece.....................................6,620 Lbs
Floor Space..................................................
Machine Height...............................................
Machine Weight...............................................25,132 Lbs.
Cooling Through Spindle......................................No
Tool Magazine................................................No

Options (extra charge/US dollars:
Installation by TOS America/Fermat/Lucas....................$19,750.00 USD
Transformer.................................................$5,750.00 USD

FEATURES:
Machine fully remanufactured in 2024 by FERMAT
Machine with modern Motor and Electrics
CNC Control Heidenhain iTNC 620
Long life Spindle and Spindle Bearings
Central Lubrication System for All Axes
Main Motor Siemens 21 kW
Heidenhain drives for all axes
Documentation
CE Electrical Specifications

SCOPE OF MACHINE BUILD
Headstock – spindle taper ISO 50
Scraping of gibs
Handwheel HR510
Power tool clamping system, including hydraulic system
Way surfaces Z, Y, X re-grinded, mating slides are milled and surface
Sliding surfaces of headstock are scraped
Screws, bolts, bearing houses
All new bearings
Customized PLC system
Re-grinded surface of the table
New Wipers on all axes
New electrical cabinet with Air Conditioner
New covers on all axes
New Heidenhain scales on all axes
New central lubrication system - Tribotec
RAL standard (blue/white color)
Delivery – included in the price
(without rigging, unloading – customer’s responsibility)

Location: Canada
Warranty (1-Year spare parts & labor-If the Installation is included)

DOCUMENTAION, FOUNDATION, INSTALLATION
Documentation
The following manuals will be supplied to the customer:
Standard manual for use and maintenance of the machine
Manual for DRO
Electrical diagrams

Installation at Buyer’s Premises (If Installation is ordered with the machine):
The Installation of the machine in the Buyer´s factory will start once following
items are provided and confirmed by Buyer:
Completeness of the machine foundation, including pre-cast holes for the foundation
bolts Confirmation of dimensions according to the foundation plan, including photos
of the machine foundation.
Supply of power, air, and data lines for construction of the machine according to
the foundation plan.
Confirmation of delivery of the machine, including photos of delivered machine.
Machine installation, leveling, and alignment will not begin until a minimum of
30 (thirty) days cure for the foundation.
Installation can be realized only in a completely finished building with proper
environmental and working conditions. Nominal temperatures must be between
18-22°C/64 -71 degrees F.
Storage of the machine in the Buyer's facility has to be done under roof, with
proper or damage and at the disposal of Seller´s employees.
Buyer assistance is required during the entire installation process. The Buyer
will have available maintenance technicians during the installation of the machine,
for auxiliary work to be performed.

Additional Buyer Responsibility
Seller is not responsible for:
Machine Foundation - The design, materials and the execution of the foundation.
Any building conversion necessary for installation of the machine Waterproofing
of the foundation or adjacent areas;
Grouting materials or it´s installation to anchor the machine Covering and equipping
of the supply channels or walking platforms
Power supply lines and disconnect to the required transformer (not supplied) or
from there to the machine.

Technological tools
Machine Foundation - The design, materials and the execution of the foundation.
Any building conversion necessary for installation of the machine
Waterproofing of the foundation or adjacent areas;
Grouting materials or it´s installation to anchor the machine
Covering and equipping of the supply channels or walking platforms
Power supply lines and disconnect to the required transformer (not supplied)
or from there to the machine.
Technological tools
Training of the programmers in programming of the machine control system
Any and all liquids including all that is necessary for cooling systems,
hydraulic units and oils. Buyer should have these ready in specified type
and sufficient quantity at the beginning of installation.
Cranes, man lifts and other hoisting equipment with the relevant operators
and other materials (cables, hooks, poles, etc.) have to be ready and available
for Seller´s personnel whenever requested.

Machine Acceptance at Buyer´s Premises
Acceptance will be carried out immediately after completion of the installation
at the Buyer’s premises.
Scope of acceptance
Inspection and Presentation of the Machine.
Check of machine completeness according to the order.
Check of documentation completeness.
Functional Tests of the Machine.
Test of all functions of the machine including all options.
Geometrical test on a complete machine set-up using standard's
geometric protocols.
Signature of the Acceptance handover protocol by the Buyer
Acceptance tests to be performed according to Seller standard procedures
