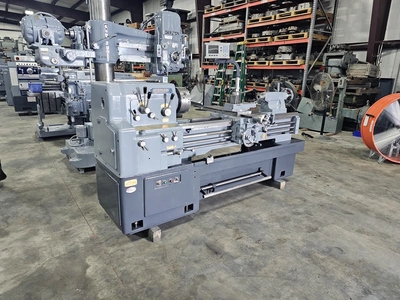

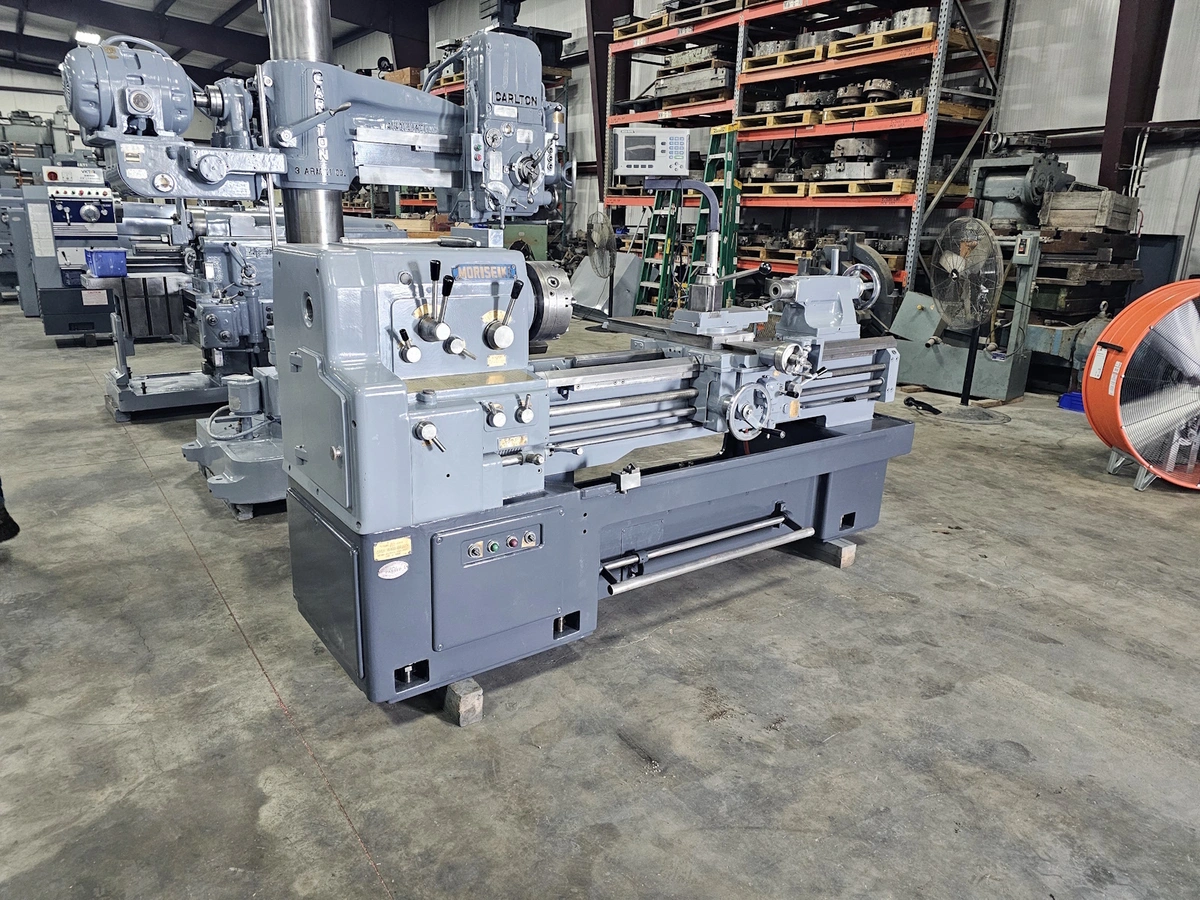

17" X 50" Mori Seiki Engine Lathe Model MS-1250 G

Mori Seiki MS-1250G Specifications:
Swing over bed.........................................17.25″
Swing over cross slide.................................9.75″
Swing In Gap...........................................27"
Distance between centers...............................50.0″
Spindle speed range....................................32-1800 rpm
Spindle nose taper (inside)............................C(10º)
Spindle nose...........................................A1-6
Spindle Bore...........................................2.04″
Chuck Size.............................................10" 6-Jaw
Cross slide travel.....................................10.0″
Compound slide travel..................................5.9″
Feeds..................................................0.0010- 0.0250 IPR
Threads Inch...........................................4-80 TPI
Tailstock spindle taper................................MT # 4
Tailstock spindle travel...............................6.0″
Main motor.............................................5 hp 3 Phase
Floor Space............................................R-L 96" X F-B 42"
Height.................................................48"
Weight.................................................4,750 lbs.
Taper Attachment.......................................Yes
Acu-Rite 2 Axis D.R.O. System..........................Yes (No Warranty)
Mori Seiki MS-1250 G Features:
12 speed spindle
Hardened and ground spindle
Hydraulic Disc Brake
Double angular contact bearings support spindle
Quick-action compound slide for threading
Hardened and ground bed ways
Hardened and ground leadscrews
Coolant System

Note: Machine will be cleaned, painted and cycled.
Head stock, gear box and apron will be flushed and
new oil. New belts. Cross slide and compound will be
taken apart and cleaned.

Optional:
New Chuck Size 12" 4-Jaw with two-piece jaws..........$1,850.00
New Chuck Size 10" 3-Jaw with two-piece jaws..........$1,895.00
Newall Newall two axis D.R.O. system installed........$3,950.00
New Aloris type CA tool post and 4 holders............$1,505.00
