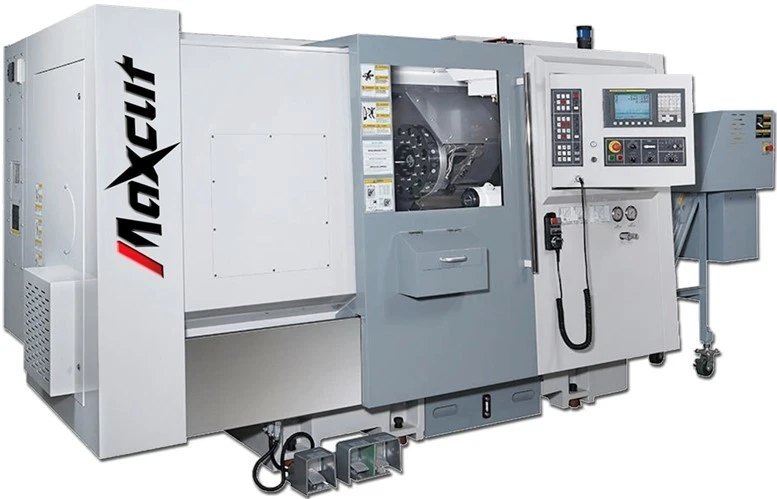

MAXCUT 92HT/HTL TURNING CENTER FEATURES:
From small to large sized workpiece and from general turning. The slant-bed HT series turning centers with heavy duty box ways can be equipped with suitable options for high precision work. Two cutting lengths: 30" and 50".
| Swing | 23.62" |
| Turning Dia | 17.71" |
| Center Distance | 30" |
| Chuck Size | 12" |
| Bar Capacity | 3.5" |
| Max RPM | 2,500 RPM |
| Tailstock | Yes |
| Power | 29.3 hp |
| # Axis | 2 |
| Control | CNC (FANUC 0I-TF PLUS CONTROL) |
| Dimensions | R-L 169.7" X F-B 71.3" X Height 76.61" |
CAPACITY:
Swing Over Bed..............................23.62"
Swing Over Cross Slide......................17.71
Maximum Turning Diameter....................22.8"
Maximum Turning Length......................30"
Bar Capacity................................3.5"
Slant Bed Angle.............................45°
TRAVEL:
X-axis......................................12"
Z-axis......................................30"
SPINDLE
Spindle Nose................................A2-8
Maximum Speed...............................2,500 Rpm's Max.
Spindle Bore................................4.154"
Spindle Front Bearing Diameter..............5.512"
Spindle Main Motor..........................29.3 Hp.
Total Power Comsumption.....................50 KVA
TOOL TURRET:
Number Of Stations..........................12
Turning Tool Square Shank...................0.984"
Boring Bar Capacity.........................1.57"
Tailstock Travel............................23.62"
Quill Travel................................4.72"
Quill Diameter..............................3.5"
Quill Taper.................................$ 5 Morse
AXES
X-Axis Ball Screw...........................1.41"
X-Axis Rapid Feed...........................24MM / Minute
Z-Axis Ball Screw...........................1.259"
Z-Axis Rapid Feed...........................3MM / Revolution
Dimensions:
Machine Length Without Chip Vonveyor........125"
Machine Length With Chip Vonveyor...........169.7"
Machine Height..............................71.3"
Machine Weight
Machine Width With Optional Parts Catcher...76.61
ACCURACY:
Positioning Accuracy........................+/-0.01
Repeatability...............................0.01
COOLANT:
Pump Motor...................................1.2 Hp.
Maximum Flow Rate............................1.74 Gallons
HYDRAULIC:
Tank Capacity................................18.5 Gallons
