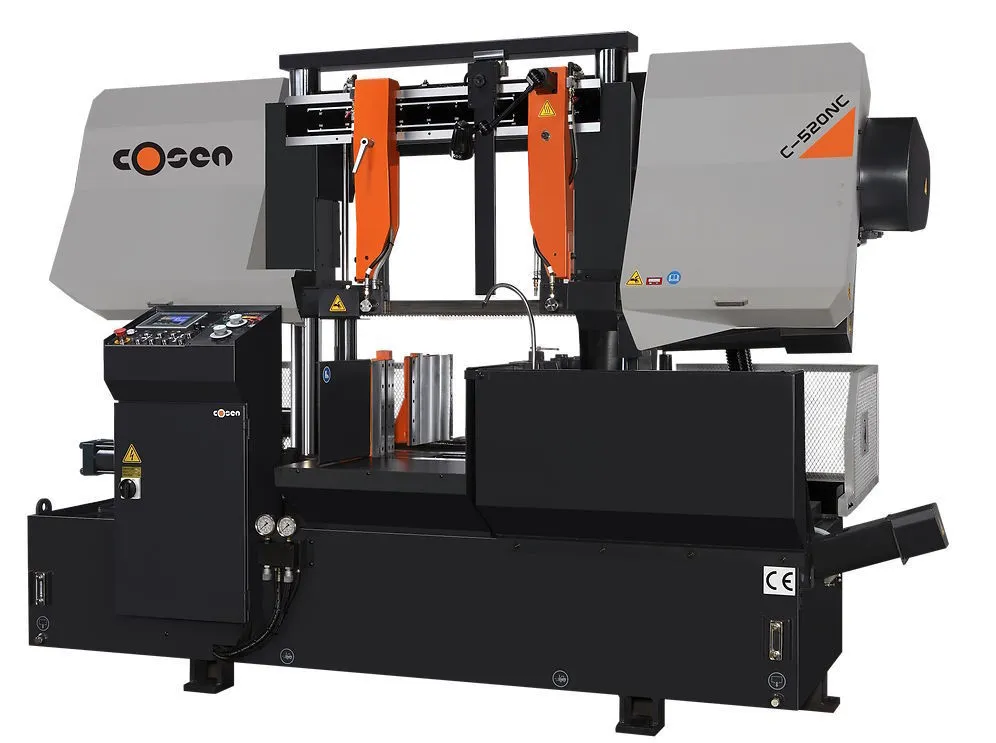

COSEN C-520NC 20.5" X 20.5" Fully Automatic Horizontal Dual Column Band Saw

Cosen’s C-520NC incorporates a 10 HP powerful blade motor, 2” wide blade,
independent control panel, and heavy-duty gantry-type dual column design.
These features create a very rigid, dynamically stable and productive machine.
The heavy-duty dual columns keep the blade at a consistent angle to the material
at all times creating equal force throughout the entire cutting cycle, thereby
increasing the cutting efficiency and extending blade life.
Control System:
Smart NC-100 (SNC-100) technology provides most of the benefits of NC
controlled saws at a mere fraction of the cost. SNC-100 controls are programmable
up to 100 different jobs including quantity and length of cut. The controls
automatically compensate for Kerfloss after data input and requires no manual
calculation of number of times to index.

Machine Specifications:
Maximum Cutting Capacity Round..............................20.5”
Square......................................................20.5” x 20.5”
Rectangular.................................................20.5” x 22.5”
Bundle Capacity Width.......................................10” to 18.5”
w/ optional top clamps Height:..............................6” to 12”
Remnant Piece...............................................3.94”
Work Bed Height.............................................30”
Blade Variable Speed........................................50 - 328 fpm
Blade Size................................................. 20'10"” x 2” x .063”
Motor Saw Blade.............................................10 HP
Hydraulic...................................................2 HP
Coolant.....................................................1/4 HP
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke.........................................0” to 19.8”
Multiple Stroke Indexing....................................0” to 999”
(Automatic kerf compensation)
Power.......................................................230V, 3 PH, 60 Hz 20 Amps
Optional ...................................................460, 3 PH, 60 Hz 10 Amps
Floor Space.................................................R-L124” x F-B87”
Height......................................................85”
Weight......................................................8,651 LBS.

Included Accessories
Mitsubishi Touch Screen Control w/ Cosen V_Drive
CE certified upgrade with enhanced safety features
Adjustable front plate for cut-off stock
Additional flushing hose for cleaning
Built in work light
Bi-metal saw blade
Tool box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Hydraulic full stroke & double retracting vises
Saw Frame Height Encoder
Hydraulic powered chip auger
Blade Vibration Dampener

Optional Accessories
Variable Vise Pressure Regulator (Part# AHA-10400KIT)........$1,395.00
Hydraulic Top Clamps for Machine & Index Vises
(Part# AHG-190190-1).........................................$5,495.00
Heavy-duty Roller Table 5’ long (Part# RT-5-26PM)
Capacity- 4200lbs............................................$3,195.00
Heavy-duty Roller Table 10’ long (Part# RT-10-26PM)
Capacity- 7700lbs............................................$4,695.00
Blade Deviation Detector (Width Capacity Decreased by 2”)....$4,995.00
Micro Droplet Applicator.....................................$3,295.00
Cosen Cool Misting Fluid 1 gal...............................$99.00
Cosen Cool Misting Fluid 5 gal...............................$449.00
Buck Boost Transformer for incoming power of 208V or below...$2,495.00
Voltage change to 460V 3PH ..................................$995.00
QR Code Reader (Part# EP-QRCODE-1)...........................$2,995.00
Ultra 360 Coolant Purification System (ULTRA 380)............$3,195.00
*Pricing on optional accessories valid only when purchased with machine.
Pricing may differ when purchased individually without machine.

*Please note that machine design and specs can change without notice*
