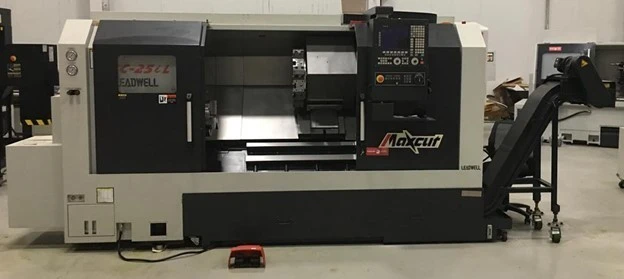

26.3" X 40.1" LEAD WELL LTC-25IL HORIZONTAL TURNING CENTER With Fagor 8060 CONTROL
New Machinery, CNC Lathes Slant Bed
LEAD WELL LTC-25IL HORIZONTAL TURNING CENTER With Fagor 8060 CONTROL
STANDARD & INCLUDED EQUIPMENT:
Fagor 8060 control
12” hydraulic 3-jaw chuck with a set of soft and hard jaws and high - low chuck pressure
Renishaw tool setter
Programmable tailstock
Chain type chip conveyor and bucket
High pressure coolant system
Auto lubrication system
Heat exchanger for electrical cabinet
Tool holder package
| Swing | 26.3" |
| Turning Dia | 17.7" |
| Center Distance | 40.1" |
| Chuck Size | 12" |
| Bar Capacity | 3.35" |
| Max RPM | 2,600 RPM |
| Tailstock | Yes |
| Control | CNC (Fagor 8060) |
| Dimensions | R-L 148" X F-B 76" X Height 79.9" |
| Weight | 14,330 Lbs. |
LEADWELL LTC-25IL TURNING CENTER
WITH A2-8 SPINDLE NOSE 3.35” SPINDLE BORE WITH /12 “HYDRAULIC
CHUCK WITH FAGOR 8060 CONTROL
SPECIFICATIONS
Maximum swing...................................670mm (26.3”)
Maximum turning diameter........................450mm (17.7”)
Maximum turning length..........................1020mm(40.1”)
Bar capacity....................................103mm (4.06”)
X-axis travel with heavy duty box guide ways....225 + 25mm (8.8” + 1”)
Z-axis travel with heavy duty box guide ways....1050 mm (41.3”)
Spindle nose....................................A2-11
Maximum spindle speed...........................2600 rpm
Spindle motor...................................18.5kW (24.8 hp)
Hydraulic chuck diameter........................305mm (12”)
Number of tool stations.........................12
Shank height for square tool....................25mm (1”)
Shank diameter for boring bar...................40mm (1.5”)
X-axis rapid feed rate..........................15m per minute (590” per minute)
Z-axis rapid feed rate..........................20m per minute (787” per minute)
X-axis motor....................................1.8kW (2.4 hp)
Z-axis motor....................................4kW (5.4 hp)
Tailstock quill diameter........................100mm (3.9”)
Quill taper.....................................MT#5
Length x Width x Height.........................3759 x 1930 x 2030mm
Length x Width x Height.........................148” x 76” x 79.9”
Weight..........................................6,500kg (14,330 lbs.)
Power requirement...............................40kVa
STANDARD & INCLUDED EQUIPMENT:
Fagor 8055 control
12” hydraulic 3-jaw chuck with a set of soft and hard jaws and
high - low chuck pressure
Renishaw tool setter
Programmable tailstock
Chain type chip conveyor and bucket
High pressure coolant system
Auto lubrication system
Heat exchanger for electrical cabinet
Tool holder package
Note: The above machine specifications are subject to change without notice.
