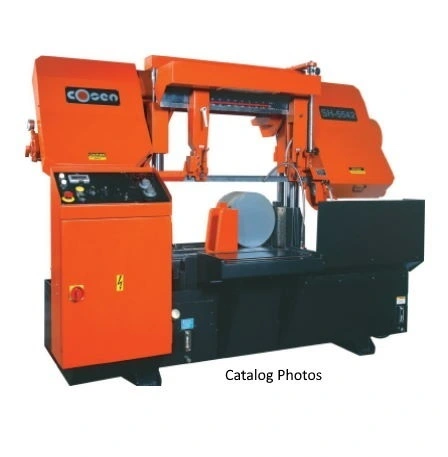

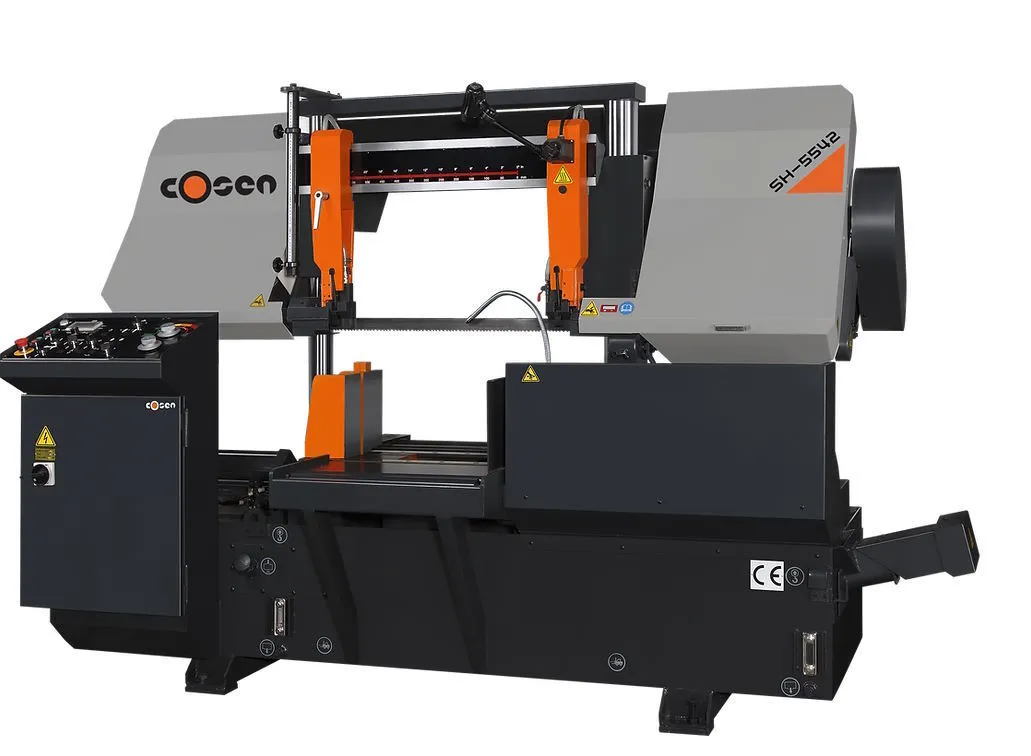

COSEN MODEL SH-5542 Semi-Automatic Dual Column Bandsaw
Have one to sell?
ConditionNew
New
COSEN SH-5542 Semi-Auto Dual Column Bandsaw: robust, used condition, precision cutting up to 16.5”, includes hydraulic chip auger, built-in light, bimetal blade. Ideal for diverse metalworking needs.
DESCRIPTION:
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities.
These saws exceed many of the standard requirements that operators look for in a band saw
machine. With its rigid construction and superior features, Cosen's SH-5542 fits into that
category. This heavy duty band saw offers precision, efficiency in operation, lower cost per
cut, and durability in a demanding production environment.
MACHINE SPECIFICATIONS:
Maximum Cutting Capacity Round.........................16.5”
Maximum Cutting Capacity Square........................16.5" X 16.5"
Maximum Cutting Capacity Rectangle.....................16.5" X 21.6"
Vise Minimun Clamping..................................1.5"
Work Bed Height........................................27.5”
Blade Inverter Drive Blade Speed.......................50 – 328 fpm
Blade Size.............................................17’4”x 1.5”x .050”
Motor Saw Blade........................................7.5 HP
Hydraulic..............................................2 HP
Coolant................................................1/8 HP
Power..................................................230V, 3 PH, 60 Hz
Max. AMP Draw..........................................230v: 28.31 460v: 14.15
Option:................................................460, 3 PH, 60 Hz See Below
Floor Space............................................R-L 108.5” x F-B 44”
Machine Height.........................................72.6”
Weight.................................................4,211 LBS
Auto. Material Feed System Job Storage NA
(Not Available on Semi-Auto Saws) Single Index Stroke NA
Multiple Stroke Indexing NA
Included Accessories
Hydraulic Powered Chip Auger
Blade “clip” device eases blade changing when necessary by
holding the blade on theband wheel during installation, making
it very easy for one person to change the blade.
Adjustable front plate for cut-off stock
Additional flushing hose for cleaning
Built in work light
Bi-metal saw blade
Tool Box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Optional Accessories*
Variable Vise Pressure Control System (AHA-10400KIT1)....$1,395.00
Heavy-Duty Roller Table 5’ long
(Part# RT-5-26PM) Capacity- 4200lbs......................$3,195.00
Heavy-Duty Roller Table 10’ long
(Part# RT-10-26PM)Capacity-7700lbs.......................$4,695.00
Buck Boost Transformer for incoming power of
208V or below............................................$2,495.00
Voltage Change to 460V 3 PH..............................$995.00
Micro Droplet Applicator.................................$3,295.00
Cosen Cool Misting Fluid 1 gal...........................$99.00
Cosen Cool Misting Fluid 5 gal...........................$499.00
*Please note that machine design and specs can change without notice.
Control System:
The operator’s control panel located on the left side of the saw is convenient and user friendly.
All operator controls are positioned on the top of the control box and clearly labeled for ease of
operation. The electrical components are located inside the control box with the main lockout
disconnect on the front of the control box for safety and easy maintenance.
Machine Features:
Hydraulic dual column design
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Cast-iron guide arms
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Automatic hydraulic blade tensioning device
Dual valve feed pressure and feed rate system for optimal cutting performance
