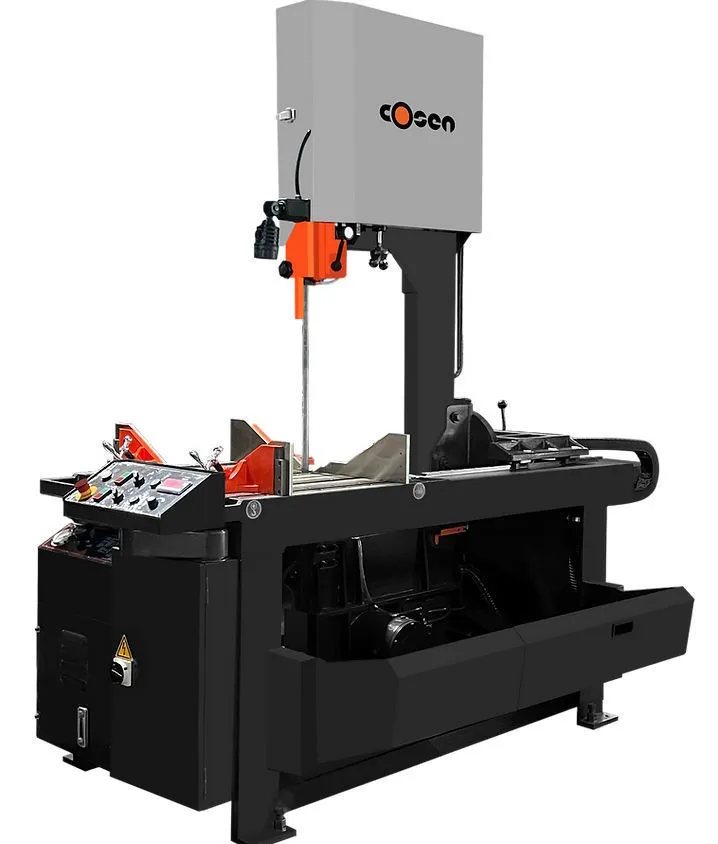

New Cosen Model V-2833 18"X22" Vertical Tilt Frame Saw
In an ever changing and growing fabrication market, the need
for cost effective cuttings solutions at different capacities and
price points is evident. With vertical saw designs becoming more
popular amongst fabricators, the 1822 takes Cosen's popular
tilt-frame design and applies to a rigid yet small footprint.
Control System:
The operator’s control station located on the front side of
the machine is convenient and userfriendly. All operator
controls are positioned on the top of the control box and
clearly labeled forease of operation. The electrical components
are located inside the control box with the mainlockout disconnect
on the front of the control box for safety and easy maintenance.
Machine Features:
Gearbox designed to accept high lateral pressure.
Adjustable flood coolant system.
Powered wire blade brush.
Carbide blade guides and guide bearings provide additional blade support.
Rigid cast-iron guide arm and bed design.
Manual blade tension device with pressure gauge.
Retractable coolant tray for easy access.
Built in table t-slots.
Wash down hose for easy cleaning.
Quick clamp and release movable and fixed vises for optimum work.
holding and operation efficiency.
Easy one-person blade change.
Capacity @ 90 Degrees 18"X22"
Capacity @ 45 Degrees Left 18" X 15.5"
Capacity @ 60 Degrees Left 18" X 9.76"
Capacity @ 45 Degrees Right 18" X 14.84"
Capacity @ 60 Degrees Right 18" X 9.21"
Blade Size 184.5" X 1.25"X.042"
Blade Speed 65-328 FPM
Work Bed Height 37.4"
Main Motor 5 Hp.
Coolant Motor 1/8 Hp.
Coolant Tank Capacity 11.88 Gallons
Hydraulic Tank Capacity 2.24 Gallon
Floor Space R-L 106.2" X F-B 108.9" X Height 95"
Included Accessories:
Manual Tilt.
Left hand vise Included (Right hand Vise not included)
Additional flushing hose for cleaning.
Bi-metal saw blade.
Tool Box with tools, leveling pads, and an additional
wire brush.
Operation & parts manual
Optional Accessories*
Right Hand Vise................................$2,995.00
Heavy-duty Roller Table 5’ long.
(Part# RT-5-26PM) Capacity- 4200lbs............$3,695.00
Heavy-duty Roller Table 10’ long.
(Part# RT-10-26PM) Capacity- 7700lbs...........$ 4,995.00
Buck Boost Transformer for incoming
power of 208V or below.........................$1,895.00
Voltage Change to 460V 3 PH....................$995.00
Micro Droplet Applicator (UNI-B)...............$3,295.00
Cosen Cool Misting Fluid 1 gallon..............$99.00
Cosen Cool Misting Fluid 5 gallon..............$449.00
Pricing on optional accessories valid only when purchased
with machine.
Pricing may differ when purchased individually without machine.
