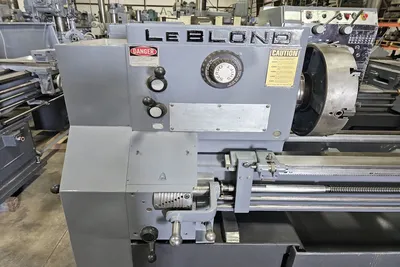

19" X 102" Used LeBlond Servo Shift Engine Lathe

Swing Over Bed Ways.................................19"
Swing Over Cross Slide..............................12.250"
Center Distance.....................................102"
Spindle Hole........................................2-1/8"
Spindle Speeds......................................25 To 1,000 Rpm's
Spindle Nose........................................L-1
Chuck Size..........................................12" 3-Jaw
Chuck Size..........................................16" 4-Jaw
Feeds...............................................0036 To .205
Threads Inch........................................2 To 112 TPI
Tail Stock Taper....................................# 4 Morse
Tail Stock Quill Travel.............................7"
Tail Stock Diameter.................................3"
Main Motor..........................................10 Hp
Voltage.............................................230/ 3/60
Length & Width......................................R-L 144" X F-B 60"
Height..............................................60"
Weight..............................................8,500 Lbs.
Steady Rest.........................................1/2" To 6"
Threads Metric......................................No
Thread Dial.........................................Yes
Taper Attachment....................................Yes
Coolant.............................................Yes
Chip Pan............................................Yes
Hardened And Ground Way.............................Yes
Options:
Chuck Size New Gator 16" 4-Jaw With (2) Piece Jaws.$2,950.00
Newall D.R.O. 2 Axis...............................$5,950.00 Installed
Aloris Type Tool Post And Five Holders.............$1,650.00

Note:
Machine has been cleaned, painted and cycled.
Oil in head and apron has been changed.
New belts.
