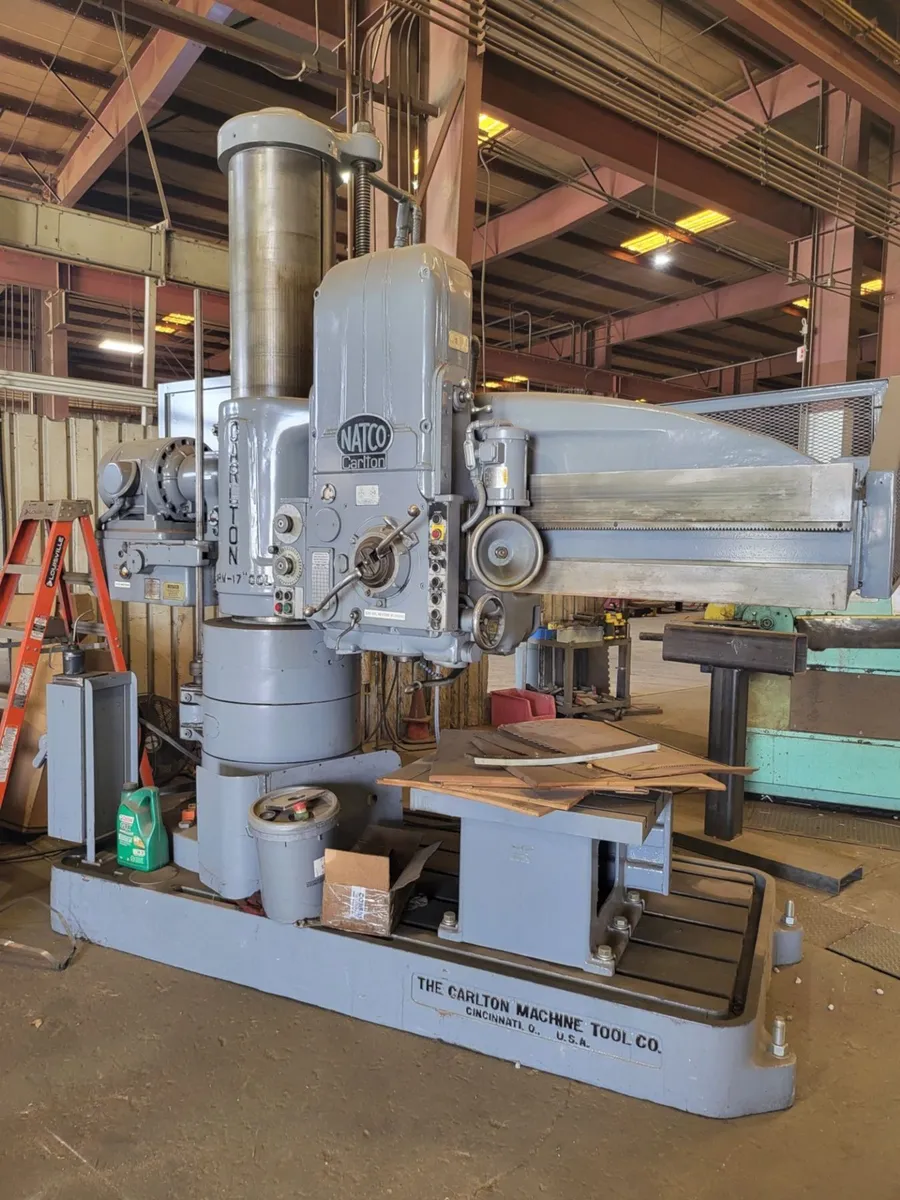

5'X17" Carlton Radial Arm Drill Serial Number 4A-4665 Rebuilt 3/2000

Arm Size.......................................5'
Column Diameter................................17"
Maximum Height Under Spindle...................66"
Minimum Height Under Spindle...................10-1/2"
Spindle Speeds.................................15 To 1,500 Rpm's
Spindle Taper..................................# 5
Spindle Travel.................................18"
Spindle Diameter...............................3-5/16"
Spindle Feeds..................................0.004 To 0.125 I.P.R.
Tap Leads......................................8-1/2,11,14,18, 20 & 27 TPI
Main Motor.....................................20 Hp. 220 / 440
Floor Space Width & Length.....................60" X 11'
Height.........................................10'7"
Machine Weight ................................18,500 Lbs.
Hydraulic Shift................................Yes
Power Clamp....................................Yes
Power Elevation................................Yes
Power Rapid Traverse To Head...................Yes
Standard Plain Box Table.......................Yes

Note: Machine has been cleaned, painted and cycled.
Machine runs out great. It was rebuilt by Carlton in March of 2000.
It has seen limited use since.
