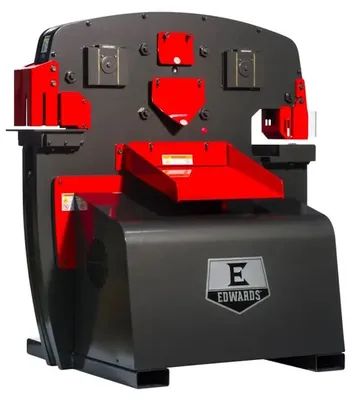

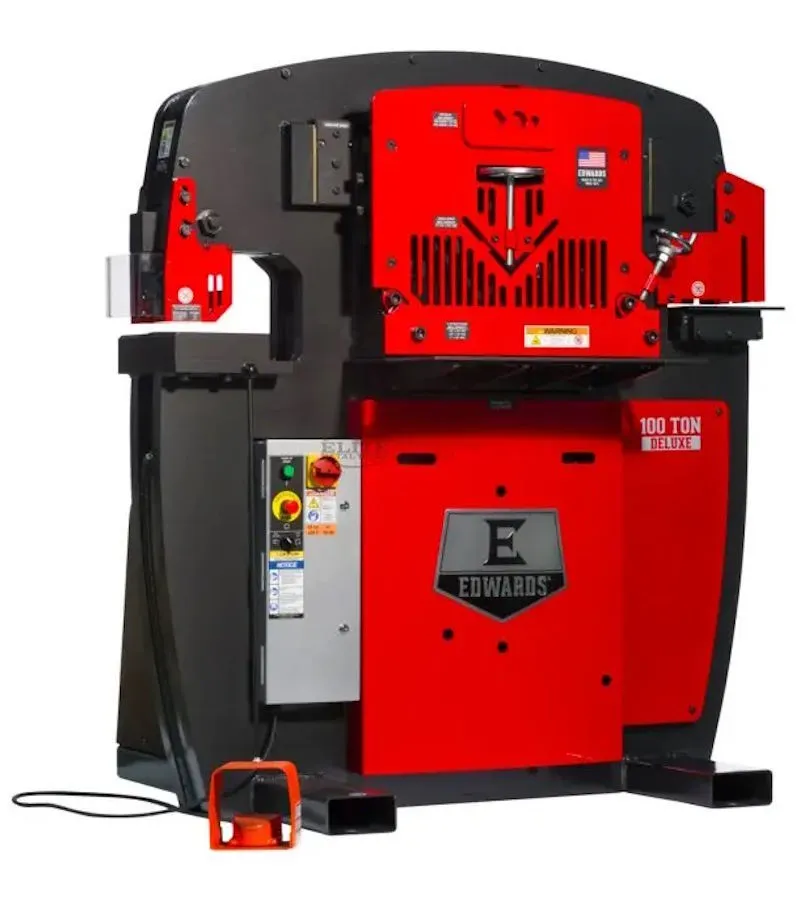

Edwrds 100 Ton Iron Worker Model IW100DX-3P460
Have one to sell?
ConditionNew
New
Our 100 Ton Ironworker provides optimal power and adaptability to handle any project with its four workstations, 13 interchangeable attachments in the open workstation, and 17 accessories to adapt the Ironworker to your needs. Ideal for larger fabrication shops or those jobs requiring heavier materials, this compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The Powerlink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
ANSI B11.5-1988(02) Compliant Guarding
Bright LED lights increases visibility
Electric foot pedal with integrated jog control
ETL Certified Controls
Five Workstations: Standard (5) - Punch, Flat Bar Shear, Angle Shear, Coper Notcher, and Rod Shear
Optimized workstation heights for improved efficiency
Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specification:
Punch Max Capacity (In.) 1-1/16" diam. 1" mild steel
Punch Stroke (In.) 1-15/16"
Punch Work Height (In.) 39-3/8"
Flat Bar Shear Max Capacity 1" 10" Length
Flat Bar Shear Max Capacity 1/2" 18" Length
Flat Bar Shear Max Capacity (In.) 1/2" x 18, 3/4" x 14", 1" x 10"
Flat Bar Shear Work Height (In.) 37"
Flat Bar Shear Max Round Capacity (In.) 1"
Angle Shear Max Capacity (In.) 6" x 6"x 1/2"
Angle Shear Work Height (In.) 43-15/16"
Coper Notcher Max Capacity (In.) 3" x 6" x 1/2"
Flat Bar Shear Max Square (In) 1"
Coper Notcher Work Height (In.) 42"
Flat Bar Shear Max Round (In) 1"
Rod Shear Max Round (In) 1-1/2"
Rod Shear Max Square (In) 1-1/4"
Hydraulic Pump (GPM) 24
Rod Shear Work Height (In) 54-1/2
Punch Shut Height (In) 6-13/16
Punch Open Height (In) 8-3/4
Hydraulics (GPM) 24
Rating (Tons) 100
Reservoir (Gal.) 17
Hydraulics (PSI) 3800
Hydraulic Reservoir (Gal.) 17
Valve Pressure (PSI) 3800
Motor Speed (RPM) 1765
Motor Amps 12
Motor (HP) 7.5 HP 3 ~ 460V
Overall Dimensions L-R 48" X F-B 69" X Height 69"
Gross Weight 4,1680 Lbs.
