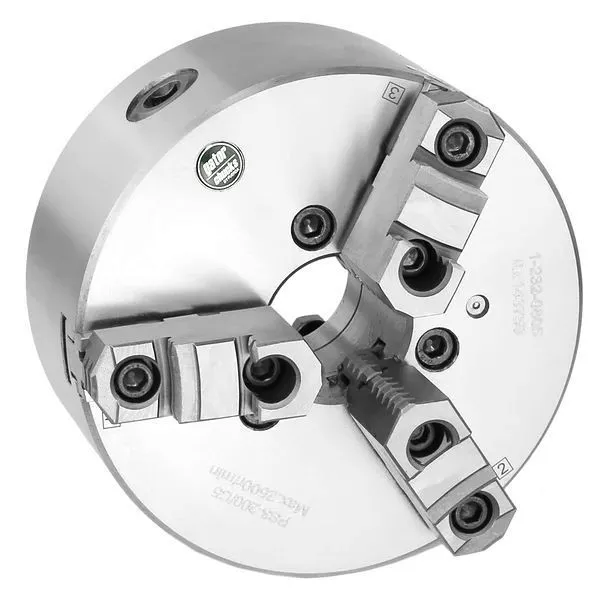

1-221-1608 New Gator Universal (PS3) Semi-Steel Chucks, Direct Mount D1-8, 3-Jaw Scroll, 2-PC Hard Reversible Jaws 15-3/4"

Product Information
Title:3-Jaw Scroll Chuck, 16" Cast-Iron Body
Direct Mount D1-8, 2 PC Hard Rev. Jaws
Chuck Type Scroll Self-Centering
Chuck Mount D1-8
Spindle Type D1-8
Chuck Dia (in) 15-3/4"
Thru-Hole (in) 5.3543
Gripping Range Min-Max (in) 0.39 - 15.75
Chuck T.I.R (in) 0.0024
Max RPM 1000
Material Cast Iron
Jaws 3
Jaw Type 2 PC Hard Reversible
Weight Gross (lbs) 229.28
Product Dimensions
D (in) 15-3/4"
Taper Size D1-8
d Hole (in) 5.3543
B (in) 6.7480
G (in) 5.5007
C (in) .7087
H (in) 5.059
h (in) 2.8543
CAMLOCK Stud OD (in) 1
CAMLOCK Stud Thread (mm) M20x1.5
CAMLOCK Stud Qty 6
Includes 1 Set of Master and Hard Top Reversible Jaws,
Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts

Optional Accessories
Jaws
Hard Top Jaws (set) TJ-PS3-400
Hard Master Jaws (set) MJ-PS3-400
Soft Top Jaws (set) STJ-PS1-400
Spare Parts
Chuck Wrench (1 pc) W-P-400
Scroll (1 pc) SC-PS-400
Pinion (1 pc) PI-PS-400
Pinion Screw (1 pc) PH-P-400
Camlock Studs (1 pc ) CA-D-08
