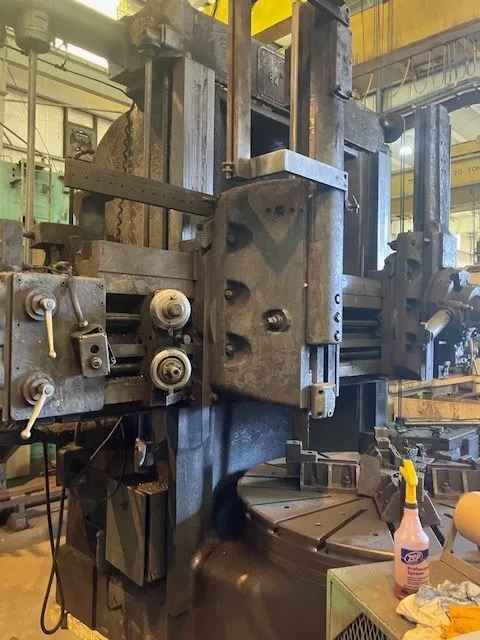

64" Used Bullard (Cut Master) Vertical Turret Lathe Model 64 Flush Floor
Have one to sell?
ConditionUsed
1 available
64" Used Bullard (Cut Master) Vertical Turret Lathe Model 64 Flush Floor
SPECIFICATIONS:
Table Size....................................................64"
Boring Mill Jaws..............................................4
Swing Side Head Above Table...................................67"
Swing Side Head Below Table...................................72"
Height Under Rail.............................................54"
Table Speed ..................................................2.7 To 120 Rpm's
Side Head Travel In & Out.....................................27"
Side Head Travel Up & Down....................................54"
Turret Head Swivels...........................................30 Degrees
Turret Head Travel Up & Down..................................37"
Turret Head Travel Left To Right..............................33-1/2"
Ram Head Travel Right To Left.................................37"
Ram Head Travels Up & Down....................................30"
Feeds.........................................................0.003 To .500 I.P.R.
Main Motor....................................................50 Hp
Floor Space...................................................R-L 15' X F-B 12'
Height .......................................................11'
Weight........................................................65,000 Lbs.
Ram Head......................................................Yes
Turret Head...................................................Yes
Side Head.....................................................Yes
Power Elevation...............................................Yes
Note: Reconditioning:
1. Turret Slide & Swivel in our facility. Dismantle unit as required. Clean all component parts.
2. Remachine all bearing surfaces of the Turret Slide to remove localized wear.
3. Remachine all bearing surfaces of the Turret Swivel to accept Turcite Way material.
4. Install Turcite to the Swivel and machine to correct height to compensate for material removed from Turret Slide.
5. Machine or grind oil grooves into swivel material for proper delivery of lubrication oil.
6. Block and hook frost all bearing surfaces of the turret slide for "pockets" for retention of lubrication oil.
7. Precision scrape and fit turret slide to swivel for proper bearing fit.
8. Manufacture new meehanite cast iron gibs for turret slide. Oil groove for proper delivery of lubrication oil. Precision scrape and fit allowing full range of adjustment to compensate for any future wear. These gibs will be the earless type.
9. Install triple lead downfeed screw and nuts. Install into nut body and realign to assure smooth and accurate operation.
10. Hang turret assembly in vertical position and reset turret locking mechanism for proper operation. Reset backlash eliminator to proper setting.
11. Cross-rail screws and nut will be replaced in ram and turret saddles.
12. Turret and ram vertical screws and nuts replaced.
13. Rebulit spindle bearings.
14. Main Shifting Solenoid Block Reconditioned / Rebuilt.
15. Hydraulics And Main Motor Will Be Reconditioned. New Belts New Oil And Filter.
16. All feed and rapid shafts seals will be replaced. Hand wheel seals will be
replaced, gear boxes will be cleaned and checked.
17. Machine will be cleaned, painted and cycled.
Machine should be ready to ship in about 26 to 30 weeks after receipt of PO.
Price will be $189,500.00 after reconditioning.
