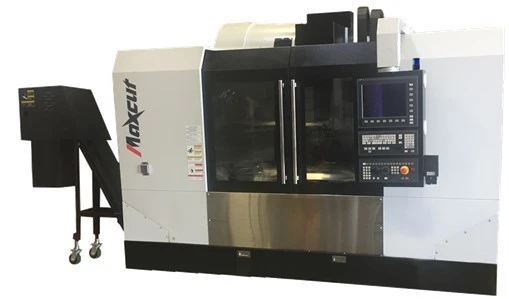

MAXCUT VERTICAL MACHINING CENTER MODEL MCV-6030

MACHINE SPECIFICATIONS:
CAPACITY
Table size...................................................76.77” x 24”
Table height.................................................33”
Table loading capacity.......................................3300 lbs.
TRAVEL
X axis.......................................................60”
Y axis.......................................................30”
Z axis.......................................................26-3/8”
SPINDLE
Taper........................................................CAT#40
Bearing inside diameter......................................2.75”
Maximum speed................................................8,000 Rpm's
Spindle nose to table........................................1.18” - 25.19
MOTOR
Spindle......................................................15 hp (20Hp 30min)
X axis.......................................................10.94 ft-lbs
Y axis.......................................................10.94 ft-lbs
Z axis.......................................................20.16 ft-lbs
Coolant pump.................................................0.75 hp
ARM STYLE AUTOMATIC TOOL CHANGER
Number of tools..............................................24
Tool taper...................................................CAT#40
Tool select by shortest path.................................Bi-directional
Maximum tool weight..........................................17.6 lbs.
Maximum tool diameter........................................5.12”
Maximum tool diameter
with full pockets............................................2.75”
Maximum tool length..........................................11.81”
PERFORMANCE
Rapid traverse X/Y/Z.........................................945” per minute
Cutting feed rate X/Y/Z......................................590” per minute
Positioning accuracy.........................................+ 0.0002”
Repeatability................................................0.00008”
DIMENSIONS
Length x Width x Height......................................170” x 130” x 112”
Weight.......................................................15,400 lbs.
Required floor space.........................................207" X 128"

Note: Specifications are subject to change without notice.
