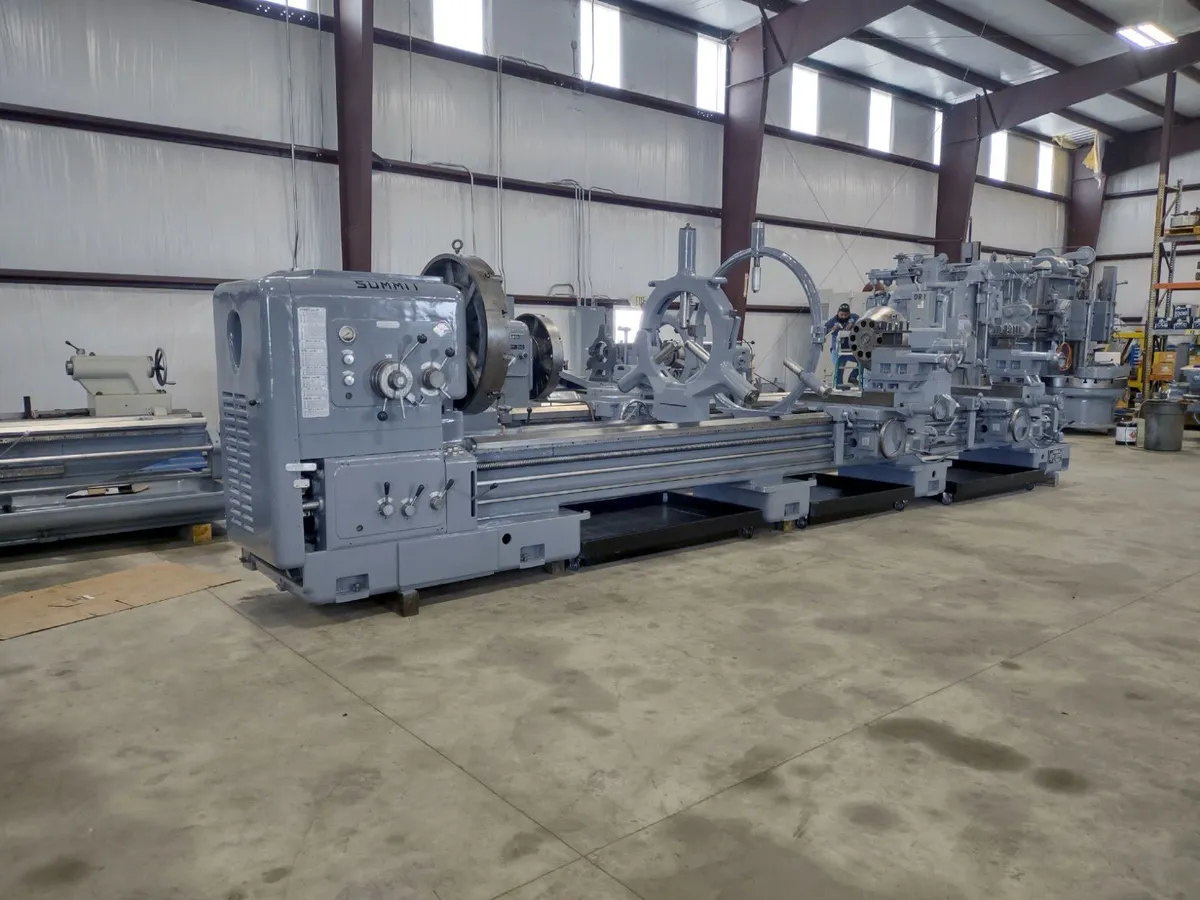

50" X 240" Summit Engine Lathe With Gap

Swing Over Bed Ways.................................50" Actual
Swing Over Cross Slide..............................38"
Swing In Gap........................................66"
Chuck Size..........................................32" 4-Jaw
Spindle Nose........................................A1-11
Spindle Bore........................................6.125"
Spindle Speeds......................................6 To 800 Rpm's
Feeds...............................................0.0012 To .0183 IPR
Feeds...............................................0.0025 To .0200 IPR
Threads.............................................4 To 56 TPI
Threads.............................................1 To 7 Metric Threads
Whitworth...........................................6 To 84 TPI
Tailstock Taper.....................................#6 Morse
Tailstock Quill Diameter............................5.5"
Tailstock Quill Travel..............................7"
Main Motor..........................................50 HP Wire 240 Volts
Floor Space.........................................R-L 350" X F-B 84"
Machine Height......................................84"
Weight..............................................44,000 Lbs.
Steady Rest.........................................24" Roller Type
Steady Rest.........................................40" Bronze Pads
Two Aprons and Carriages............................Yes
Taper Attachment on Both Aprons.....................Yes
Rapid Traverse On Both Aprons.......................Yes
Coolant Pan and Pump................................Yes

Note:
Machine has been cleaned, painted and cycled.
