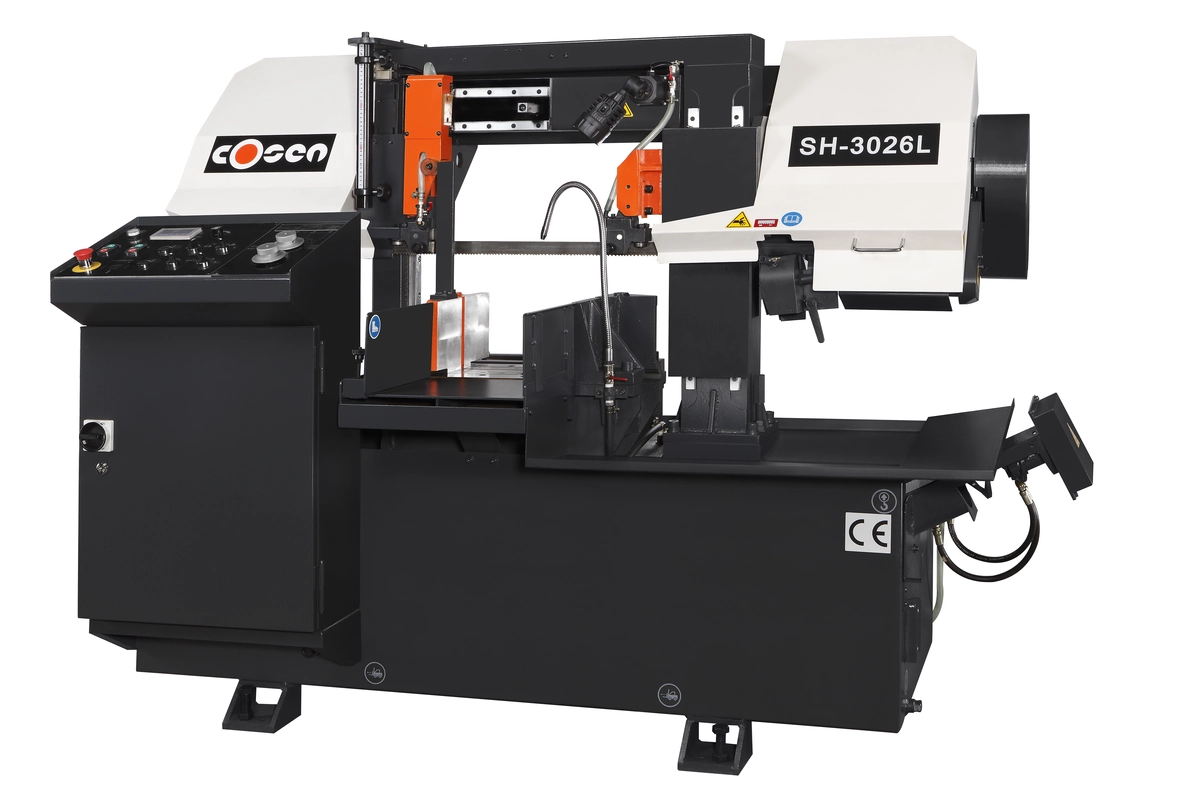

COSEN Model SH-3026L 10.2" X 11.8" Semi-Automatic Horizontal Dual Column Band Saw
Have one to sell?
ConditionNew
New
COSEN Model SH-3026L 10.2" X 11.8" Semi-Automatic Horizontal Dual Column Band Saw
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities.
These saws exceed many of the standard requirements that operators look for in a band saw
machine. With its rigid construction and superior features, Cosen's SH-3026L fits into that
category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut,
and durability in a demanding production environment.
Control System:
The operator’s control panel located on the front side of the saw is convenient and user
friendly. All operator controls are positioned on the top of the control box and clearly labeled
for ease of operation. The electrical components are located inside the control box with the
main lockout disconnect on the front of the control box for safety and easy maintenance.
Machine Features:
High precision linear guide way design
Gearbox designed to accept high lateral pressure (no thermal distortion)
Variable speed blade drive
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Automatic positioning cast-iron guide arms
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Automatic hydraulic blade tensioning device
Dual valve feed pressure and feed rate system for optimal cutting
performance
Machine Specifications:
Maximum Cutting Capacity Round.........................12.2”
Square.................................................10.2” x 10.2”
Rectangular............................................10.2” x 11.8”
Work Bed Height........................................31.1”
Blade Variable Speed...................................66 – 328 fpm
Blade Size.............................................13’5” x 1.25” x .042”
Motor Saw Blade........................................5 HP
Hydraulic..............................................1 HP
Coolant................................................1/8 HP
Voltage................................................230/3/60
Included Accessories:
Hydraulic Powered Chip Auger
Blade “clip” device eases blade changing, when necessary, by holding the
blade on the band wheel during installation, making it very easy for one
person to change the blade
Built in work light
Bi-metal saw blade
Toolbox with tools, leveling pads, and an additional wire brush
Operation & parts manual
Hydraulic Powered Chip Auger
Optional Accessories*.........................................Price
Heavy-Duty Roller Table 5’ long (Part# RT-5-19PM)
Capacity 4,200 Lbs............................................$3,195.00
Heavy-Duty Roller Table 10’ long (Part# RT-10-19PM)
Capacity 7,700 Lbs............................................$4,895.00
Buck Boost Transformer for incoming power of 208V or below ...$1,995.00
Voltage Change to 460V 3 PH...................................$995.00
Micro Droplet Applicator......................................$3,895.00
Cosen Cool Misting Fluid 1 gal................................$115.00
Cosen Cool Misting Fluid 5 gal................................$595.00
*Please note that machine design and specs can change without notice*
