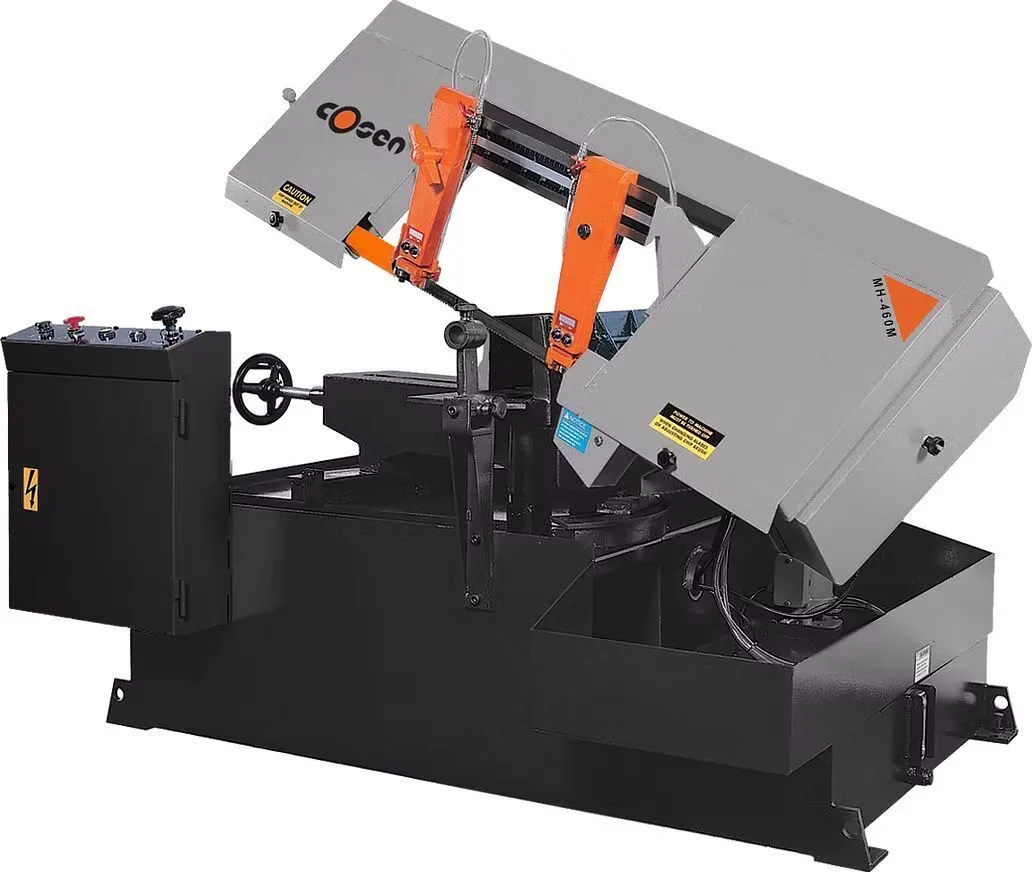

COSEN MH-460M Manual Horizontal Mitering Scissor Style Band Saw
Machine Specifications:
Maximum Cutting Capacity Round @ 90 Degrees 10.2”
Maximum Cutting Capacity Round @ 45 Degrees 9.1”
Maximum Cutting Capacity Round @ 60 Degrees 4.3"
Rectangular@ 90 Degrees 9” x 18.1”
Rectangular@ 45 Degrees 9.1” x 9.1”
Rectangular@ 60 Degrees 9.1"X 4.3"
Work Bed Height 25.2”
Blade Variable Speed 75,121,190 & 305 FPM
Size 11’6" x 1.06” x .035”
Motor Saw Blade 2 HP
Coolant 1/8 HP
Voltage 230 V, 3 Phase 60
Floor Space 68” x 43.3” x 41”
Weight 1,433 LBS.
Machine Features:
Hydraulic cylinder plus precision ground hinge support
Heavy-duty cast iron swivel center features straight cutting
and miter cuts from 90 degrees to 30 degrees
Adjustable flood coolant system
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Cast-iron vise
Blade cleaning chip brush
Adjustable down-feed control
Included Accessories:
Included Accessories
Adjustable material stop
Bi-metal saw blade
Operation & parts manual
Optional Accessories:....................................Price
5' stock roller conveyor (RT-5-19LKIT)...................$1,295.00
10' stock roller conveyor (RT-10-19LKIT).................$1,995.00
Buck Boost Transformer for incoming power of 208V or
below (BBT-240D-208D-12.4A)..............................$1,495.00
Voltage Change to 460V 3PH...............................$695.00
The MH-460M comes equipped with a heavy-duty swivel center frame design, allowing for an
easier set up of miter cuts. Key features included on this robust machine allow for efficient use
in limited run production environments, as well as for tool room applications. Its
solid construction ensures many years of reliability and accuracy at a high level of performance
Control System:
The operator’s control panel is clearly arranged and located on the front of the machine,
eliminating the need for the operator to reach over a moving blade. All operator controls are
positioned on the top of the control box and clearly labeled for ease of operation. The
electrical components are located inside the control box with the main lockout disconnect on
the front of the control box for safety and easy maintenance.
