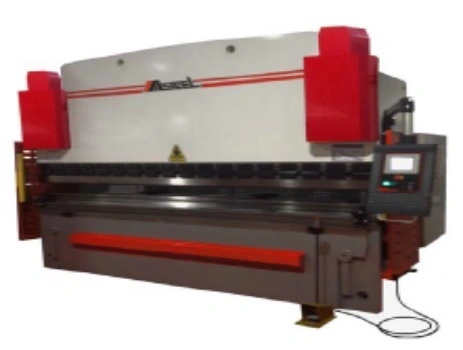

Masteel 12' X 440 Ton CNC Hydraulic Press Brake

STANDARD CONTROL FEATURES:
Control Features:
Standard SIEMENS TP-700 control with 7” touch screen display.  SIEMENS CNC control with Y1/Y2/X/R/Z1/Z2 position control, R and Z1/Z2 axis as options.  Ram bending position control – Y1/Y2 axis: • Y1, Y2 programmable independently in angle or position. • Ram tilt capacity at ±0.5”. • Bosch-Rexroth closed-loop proportional hydraulic position control:
repeatability at ±0.0006”.  Servo driven back gauge position control: • Standard CNC back gauge: Speed at 400 IPM; Repeatability at ±0.00’’. • Optional R axis CNC control. • Optional CNC Z1/Z2 axis or power operated Z1/Z2 axis. • Programmable back gauge retract feature. • 3-step finger position with automatic offset on X axis. Standard Masteel Back Gauge
Bosch –Rexroth Hydraulic Control
Two way angle corrections - allow inexperienced operator toachieve desired angles without multiple test bends. • Input of the difference from desired angle to test bending, control will automatically adjust the bending position to achievedesired angle. • Adjust bending position with Y axis incremental per degree
calculated by control system.  Dual ram position feedback with hydraulic synchronized control
allow bending at one end of brake for deep box  Tool memory for quick recall of tool setup 200 job memory, with an average of 30 bends per program.  Programmable tonnage control Programmable ram delay and programmable tonnage at the bending position for bump bending or heavy bending applications  Automatic maintenance schedule reminders Operating prompts and troubleshooting messages Inch / MM conversion
Optional X1, X2, R1, R2, Z1, Z2 Multi-Axis CNC Back Gauge

OPERATING FUNCTION:

Ram speed control:
Rapid approach and return speed.
Slow bending speed for accuracy control.
Programmable bending speed.
Ram stroke control:
Programmable ram top stop limit for more efficient production.
Programmable slow working speed position.
Programmable second stop position.  Four Operating Modes:
Jog mode: Inching control of the ram for tool setup.
Single mode: One full bend cycle per control input.
Double stop mode: Ram stop above material and excellent for sight bend operations.
Follow bend mode: Ram jogging down/up with foot paddle and easy to follow bending
and ram return on paddle and easy to follow bending and ram return on
large sheets or with crane handling.

STANDARD EQUIPMENT:
Two axis back gauge:
One axis CNC control: X axis.
One axis manual adjustment: R axis.
3-step precision-made back gauge fingers.
Fully equipped with Masteel tooling and clamping system:
Floating-adjustable die clamping system for various die applications. The fine alignments of
horizontal tolerances in relation to the back gauge is for producing accurate flange lengths.
Masteel reversible punch holder accommodates both American and European punches.
Adjustable wedges on punch holder provide fine alignments for vertical tolerances in the press
brake and tooling, which easily and effectively correct accumulated machine tolerance across the length of the whole machine, significantly extend the life span of press brakes. • Hardened and precision ground tool steel gooseneck punch: 53-58RC; 100Ton/M (33Ton/Ft) capacity.
Hardened and precision ground Masteel 8 openings, 4-way die: HB190-260.
Deep throat depth with swing up clearance allows for full length bend over bed (?, for) up to 12”.
2 front support arms

OPTIONAL EQUIPMENTS:
Central lubrication
Interlock back guard
Special top and bottom tools  460 or 600V electrical
Hydraulic oil cooler
NEMA 12 electrical cabinet
WILA hydraulic top and bottom tool holding system
WILA type manual or CNC crowning system
CNC R axis
CNC Z1/Z2 axis or power operated Z1/Z2 axis
Safety light curtain
Quick-set front sheet support (2 sets)
Special throat depth (500, 600 and 750 mm)
Laser protection system for die area

Optional Hydraulic Crowning System

Optional Powered Z1 & Z2 Axis
Controlled from the Operator

Terms and Conditions
Prices are Net. All prices are quoted in US DOLLARS Unless otherwise noted.
Due to constant fluctuations in Currency Exchange rates, Prices may change without
notice and prices published may not be current for incoming stock. All taxes extra

Terms: 50% deposit balance due prior to delivery
Delivery: TBA

FOB: To be advised
Warranty: NEW EQUIPMENT: 1 year Parts & Labour. travel & accommodations extra cost.
All electrics warranted by manufacturer. All parts are FOB Vancouver unless otherwise specified. All shipments are by ground transport. Fuses, wipers, and other normal wear items are not covered under this warranty.
NOTE: All specifications are approximate, and are not binding in any way. We endeavour to
make information as complete and accurate as possible. If you notice a discrepancy, please
let one our sales people know so that the error can be changed.
