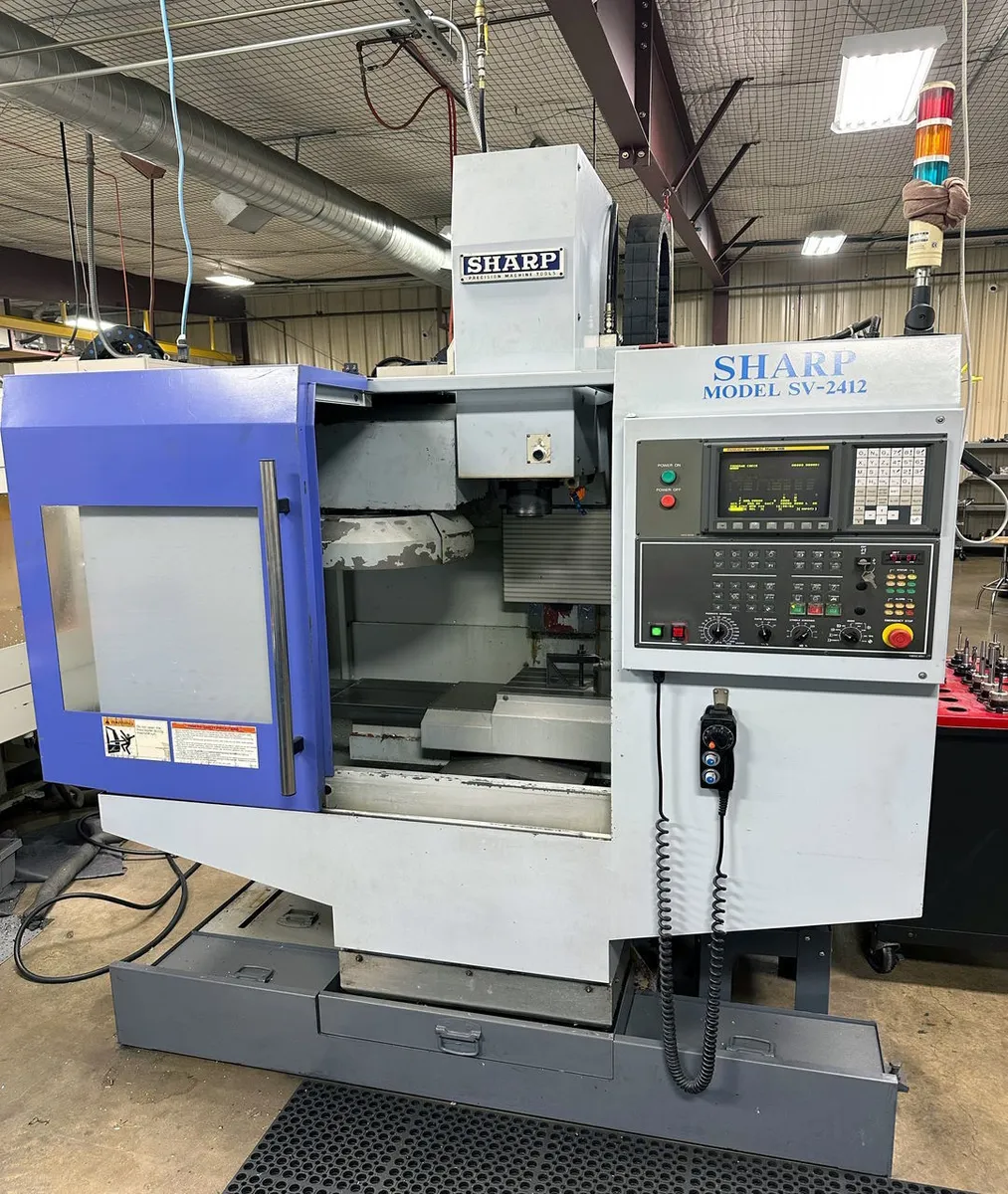

Used Sharp Vertical Machining Center Model SV-2412 With Fanuc 0i-Mate MD

Standard Machine Specifications
Specifications SV-2412
Work Capacity
X axis travel mm (inch)............................610 (24)
Y axis travel mm (inch)............................305 (12)
Z axis travel mm (inch)............................460 (18.1)
Spindle nose to table mm (inch)....................70-530 (2.8-20.9)
Spindle center to column mm (inch).................415 (16.3)
Worktable
Table area mm (inch)...............................700 x 308 (27.6 x 12.1)
Floor to table mm (inch)...........................835 (32.9)
Max. workpiece weight kg (lb.).....................350 (770)
T-Slot (Number x Width x Pitch)....................4 x 16 x 63.5 (4 x 0.6 x 2.5)
Spindle
Spindle taper......................................CAT-40
Spindle speed rpm..................................120 To 10,000 Rpm's
Spindle motor: cont................................10 Hp
Transmission Belt
Automatic Tool Changer
ATC type Armless
Tool capacity......................................12
Max. tool diameter mm (inch).......................120 (4.7)
Without adjacent tool mm (inch)....................150 (5.9)
Max. tool length mm (inch).........................300 (11.8)
Max. tool weight kg (lb.)..........................7 (15.4)
Tool change time (tool to tool)....................7.5 sec
Tool change time (chip to chip)....................8.1 sec
Method of tool selection Address code
Motion
Rapid traverse.....................................787 IPM
Cutting feed rate 393 IPM
Transmission Direct drive
Ball screw diameter / pitch mm (inch)..............32 / 10 (1.3 / 0.4)
Feed motor (Fanuc) nm (ft/lb.) X/Y:................12 (8.9) / Z: 22 (16.2)
Max. thrust kgf (lb.) X/Y: 1773 (3909) / Z:........3251 (7167)
Positioning accuracy* mm (inch) +/-................0.005 (0.0002)
Repeatability accuracy* mm (inch) +/-..............0.0025 (0.0001)
Coolant System
Coolant tank capacity L (gal)......................160 (42)
Coolant Flow L/min (gal/min).......................150 (40)
Machine Size
Floor space (w/o chip conveyor) R-L................72.8 X F-B 78"
Height.............................................94.5"
Weight.............................................6,100 Lbs.
Door opening mm (inch).............................640 (25.2)
Power Requirements
Electrical.........................................220V / 60 Hz 3 Phase /
...................................................15 KVA 3 Phase / 18 KVA
Air................................................5 CFM @ 100 psi
Rigid Tapping......................................Yes
Note: Cleaned and cycled.
