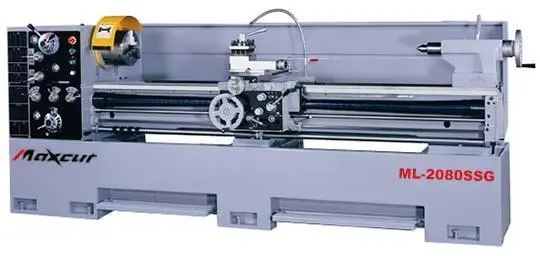

20"X80" New Masteel Engine Lathe Model Maxcut ML-2080
Heavy duty geared head; hardened and ground gears.
86mm. 3-3/8 inch hole through spindle.
3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
12 steps spindle speeds 20 – 1800 rpm. shift in geometric progression.
Forced spray lubrication system used for headstock.
One piece casting base for maximum rigidity.
One shot lubrication pump supply oil cross slide and bed-ways.
Adjustable overload clutch in apron to ensure proper cutting load.
Cross slide screw permanently immersed in oil and supported by thrust bearing.
Quick-change universal gearbox for inch, metric, DP, MP, threading, and multiple thread.
NOMINAL SIZE.............................Inch............MM
Swing over Bed...........................20".............510 mm
Swing over Cross Slide...................13.5"...........342 mm
Swing over Gap...........................28.750".........730 mm
Length of Gap............................11.750".........300 mm
Height of Center.........................10".............255 mm
Distance Between Centers.................80".............2,000 mm
Bed
Width of Bedways.........................13"..............330 mm
Total Length of Bed......................118".............3,020 mm
Width in front of face plate.............6.750"...........175 mm
Spindle nose mounting....................D1-8 CAMLOCK
Spindle bore.............................3-3/8"............86 mm
Taper of spindle bore....................Morse Taper #5
Number of spindle speeds.................12
Range of spindle speeds..................20-1800 R.P.M.
CARRIAGE
Total travel of cross slide..............10.250"...........260 mm
Total travel of top slide................5.125"............130 mm
Max. size cutting tool...................1"................25 mm
TAIL STOCK
Total travel of tailstock................6"................150 mm
Taper in tailstock barrel................Morse Taper #5
Diameter of barrel.......................2.562".............65 mm
THREADS
Lead screw diameter......................1-3/8".............35 mm
Lead screw pitch.........................4 TPI..............6 mm
Number of inch threads...................48
Range of inch threads....................2-72 TPI
Number of metric pitches ................48
Range of metric pitches..................0.2-14 mm
Number of Diametral pitches..............4
Range of Diametral pitches...............8-60 D.P.
Number of Module pitches.................24
Range of Module pitches..................0.2-3.5 M.P. FEEDS
Feed rod diameter........................1".................25 mm
Number of feed change....................36
Range of longitudinal feeds inch.........0.0025-0.07in/rev.
Range of longitudinal feeds inch.........0.06-2.00 mm/rev.
Range of cross feeds.....................0.0010-0.03in/rev.
Range of cross feeds.....................0.03-0.80mm/rev.
MOTOR
Main spindle motor.......................10 Hp..............7 k
Coolant pump motor.......................1/8 Hp.............0.1 kw
Machine net weight.......................5,071..............2,300 kgs
Included In Price
12" inch 3 jaw chuck top reversing jaws
16" inch 4 jaw chuck
Roller Steady Rest 1" To 7"
Follower Rest
Taper Turning Attachment
Optional
Newall D.R.O. 2 Axis Installed $6,000.00
Aloris Type Tool Post & 5 Holders $1,950.00
Machine made in Taiwan.
**SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
