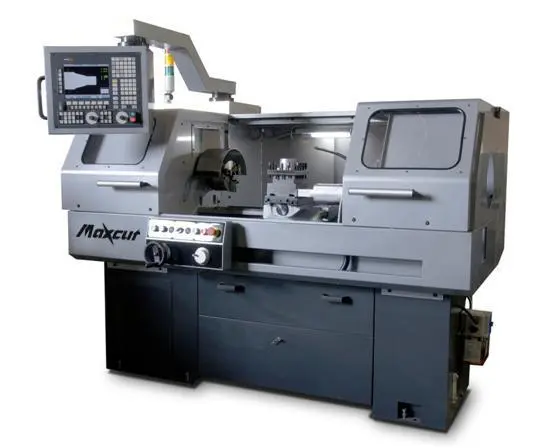

14" X 40" New Maxcut CNC Lathe Model MLNC-1440SSM With Fagor 8055 Control

SPECIFICATIONS
MODEL1440 NC
NOMINAL SIZE MM Inch
Swing Over Bed 356mm 14”
Height of Center 176mm 6-7/8”
Swing Over Cross Slide 220mm 8-5/8”
Distance Between Centers 1000mm 40”
Width of Bed-ways 206 mm 8-1/2”
SPINDLE
Number of spindle speeds 3 steps
Range of spindle speeds 50-2000 RPM
Hole through spindle 38mm 1-1/2in
Spindle nose D1-4 CAMLOCK
Taper of spindle bore M.T.#5
TAIL STOCK
Total travel of tailstock barrel 120mm 4-3/4in
Taper in tailstock barrel M.T.#3
Diameter of barrel Dia. 45mm 1-3/4in
X axis Cross slide travel 180mm 7in
Dia. of Ballscrew 25mm 5P
Rapid travel 6m
Servo motor 7.3Nm
Z axis Longitudinal travel 840mm 33-1/2in
Dia. of Ballscrew 32mm 5P
Rapid travel 8m
Servo motor 7.3Nm
ELECTRICAL EQUIPMENT
Main Motor 3.75kw 5 Hp.
Auto lubrication 3L 220V
Coolant pump 1/8HP 220V
PACKING SIZE
Machine net weight 1200kg

**SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
