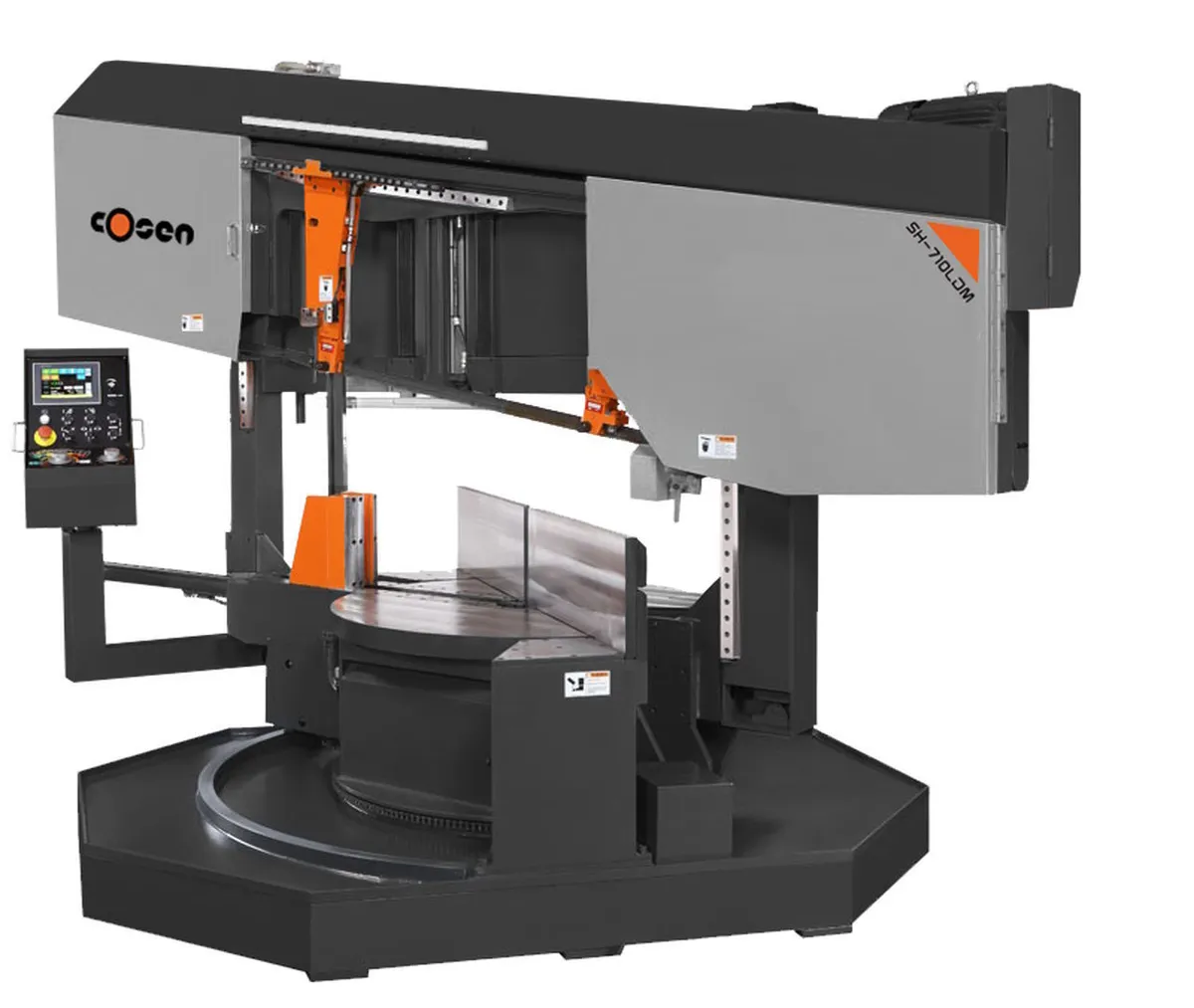

COSEN SH-710LDM 18.5" X 18.5" Semi Automatic Dual Mitering Horizontal Dual Column Band Saw
Have one to sell?
ConditionNew
1 available
New
COSEN SH-710LDM 18.5" X 18.5" Semi Automatic Dual Mitering Horizontal Dual Column Band Saw
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities.
These saws exceed many of the standard requirements that operators look for in a band saw
machine. With its rigid construction and superior features, Cosen’s SH-710LDM fits into that
category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut,
and durability in a demanding production environment.
Control System:
The operator’s control station, located ergonomically at waist height featuring convenient
accessing and ease of operation. All operator controls are positioned on the top of the control
box and clearly labeled for ease of operation. The electrical components are located inside the
control box with the main lockout disconnects on the front of the control box for safety and easy
maintenance.
Machine Specifications:
Angle.................................................90 ° +/- 45 ° +/- 60 °
Maximum Cutting Capacity Round........................18.5”.......16.5”.......12.6”
Rectangle (H x W).....................................16.5”X28”...16.5”x18”...16.5”x12.6”
Blade Inverter Controlled Speed w/ LED readout........79 – 394 fpm
Blade Size............................................21’ 5.5” x 1.5” x .050”
Motor Saw Blade.......................................7.5 HP
Hydraulic.............................................1 HP
Coolant...............................................1/8 HP
Auto. Material Feed System Job Storage................NA
(Not Available on Semi-Auto Saws) Single Index Stroke.NA
Multiple Stroke Indexing..............................NA
Power.................................................230V, 3 PH, 60 Hz
......................................................(460, 3 PH, 60 Hz Option)
Floor Space...........................................128” x 126” x 76”
Weight................................................6,393 LBS
Work Bed Height.......................................29.7”
*Please note that machine design and specs can change without notice
Max. AMP Draw.........................................230V-25.37 Amp
Max. AMP Draw.........................................460V- 12.68 Amp
Included Accessories:
Vibration dampening roller (lose 2” capacity)
Hydraulic top clamp (Factory Installed)
Hydraulic powered chip auger
Inverter blade drive system with LED blade speed indicator
Bi-metal saw blade
Toolbox with tools, leveling pads, and an additional wire
brush Operation & parts manual
Optional Accessories
Variable Vise Pressure Regulator (Part# AHA-10400KIT).$1,395.00
Heavy Duty Roller Conveyors P.O.R
Shadow Light..........................................$1,995.00
Buck Boost Transformer for incoming power of 208V or below $1,995.00
Voltage change to 460V 3PH............................$995.00
Micro Droplet Applicator..............................$2,995.00
Cosen Cool Misting Fluid 1 gal........................$99.00
Cosen Cool Misting Fluid 5 gal........................$429.00
Shipping Cost
*Please note that machine design and specs can change without notice*
Machine Features:
High precision linear guide way design
Heavy-duty cast iron swivel center features straight cutting and miter cuts (plus/minus
60 degrees)
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Cast-iron guide arms
Cast-iron hydraulic vise which synchronizes movement with guide arm
Automatic hydraulic blade tensioning device
Dual valve feed pressure and feed rate system for optimal cutting performance
10° blade cant
COSEN SH-710LDM 18.5" X 18.5" Semi Automatic Dual Mitering Horizontal Dual Column Band Saw
Imperial
| Dimensions | R-L 128" X F-B 126" X Height 76" |
| Weight | 6,393Lbs. |
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities.
These saws exceed many of the standard requirements that operators look for in a band saw
machine. With its rigid construction and superior features, Cosen’s SH-710LDM fits into that
category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut,
and durability in a demanding production environment.
Control System:
The operator’s control station, located ergonomically at waist height featuring convenient
accessing and ease of operation. All operator controls are positioned on the top of the control
box and clearly labeled for ease of operation. The electrical components are located inside the
control box with the main lockout disconnects on the front of the control box for safety and easy
maintenance.
Machine Specifications:
Angle.................................................90 ° +/- 45 ° +/- 60 °
Maximum Cutting Capacity Round........................18.5”.......16.5”.......12.6”
Rectangle (H x W).....................................16.5”X28”...16.5”x18”...16.5”x12.6”
Blade Inverter Controlled Speed w/ LED readout........79 – 394 fpm
Blade Size............................................21’ 5.5” x 1.5” x .050”
Motor Saw Blade.......................................7.5 HP
Hydraulic.............................................1 HP
Coolant...............................................1/8 HP
Auto. Material Feed System Job Storage................NA
(Not Available on Semi-Auto Saws) Single Index Stroke.NA
Multiple Stroke Indexing..............................NA
Power.................................................230V, 3 PH, 60 Hz
......................................................(460, 3 PH, 60 Hz Option)
Floor Space...........................................128” x 126” x 76”
Weight................................................6,393 LBS
Work Bed Height.......................................29.7”
*Please note that machine design and specs can change without notice
Max. AMP Draw.........................................230V-25.37 Amp
Max. AMP Draw.........................................460V- 12.68 Amp
Included Accessories:
Vibration dampening roller (lose 2” capacity)
Hydraulic top clamp (Factory Installed)
Hydraulic powered chip auger
Inverter blade drive system with LED blade speed indicator
Bi-metal saw blade
Toolbox with tools, leveling pads, and an additional wire
brush Operation & parts manual
Optional Accessories
Variable Vise Pressure Regulator (Part# AHA-10400KIT).$1,395.00
Heavy Duty Roller Conveyors P.O.R
Shadow Light..........................................$1,995.00
Buck Boost Transformer for incoming power of 208V or below $1,995.00
Voltage change to 460V 3PH............................$995.00
Micro Droplet Applicator..............................$2,995.00
Cosen Cool Misting Fluid 1 gal........................$99.00
Cosen Cool Misting Fluid 5 gal........................$429.00
Shipping Cost
*Please note that machine design and specs can change without notice*
Machine Features:
High precision linear guide way design
Heavy-duty cast iron swivel center features straight cutting and miter cuts (plus/minus
60 degrees)
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Cast-iron guide arms
Cast-iron hydraulic vise which synchronizes movement with guide arm
Automatic hydraulic blade tensioning device
Dual valve feed pressure and feed rate system for optimal cutting performance
10° blade cant
