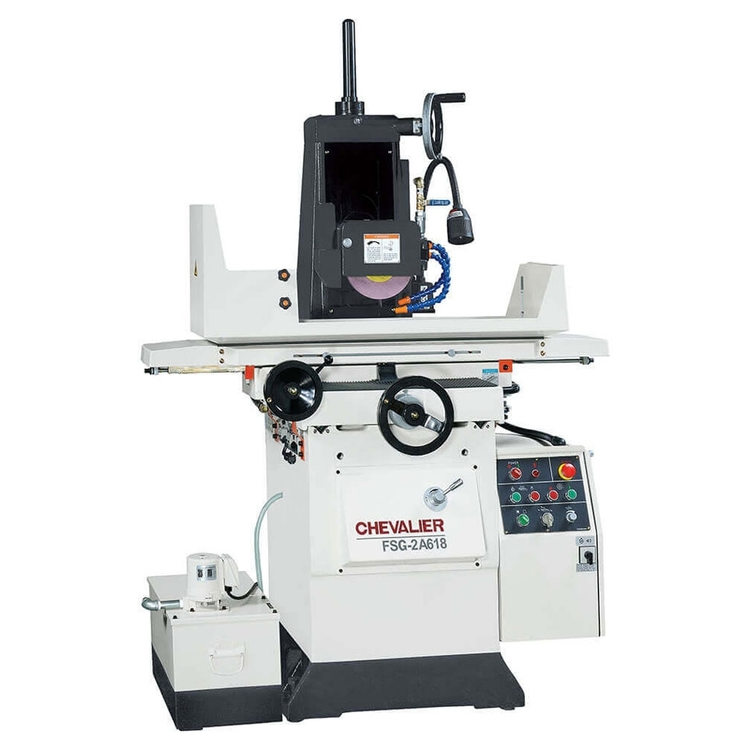

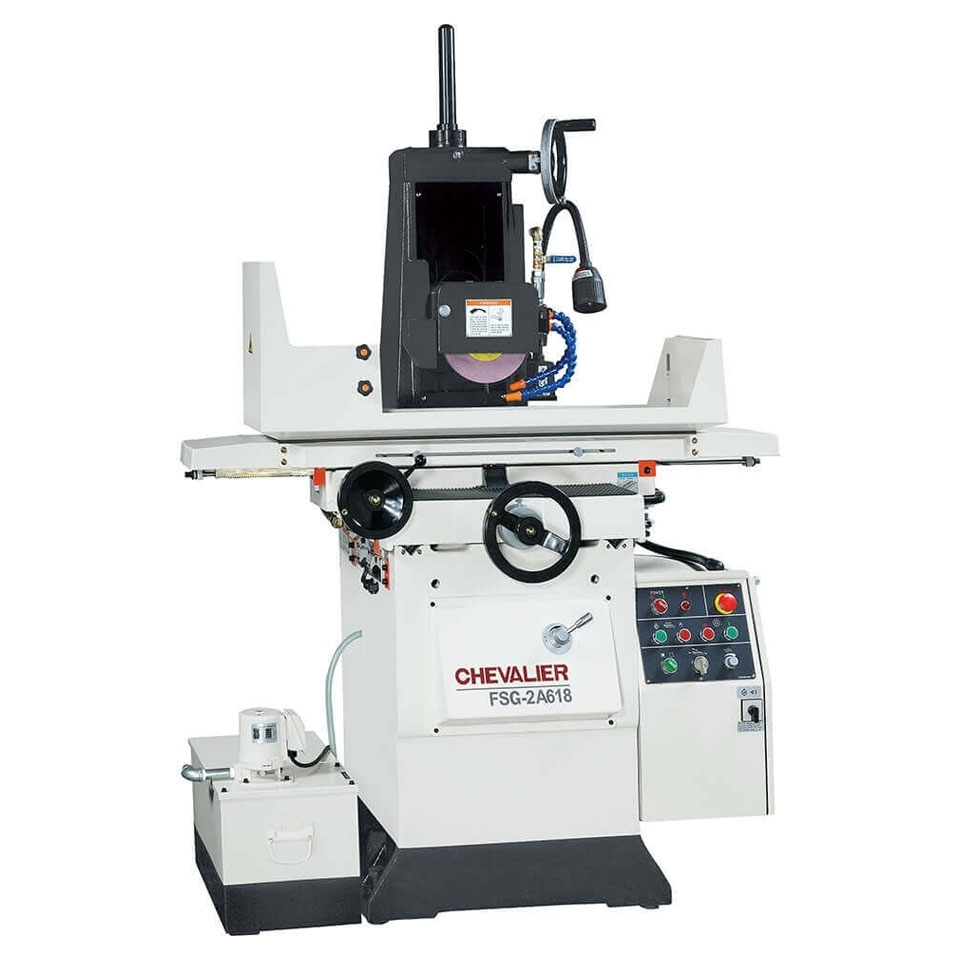

New Chevalier surface Grinder Model FSG-2A618

Control
Capacity
Grinding length................................................18.0"
Grinding width.................................................6.0"
Distance table to centerline of wheel..........................17.7"
Max. table load................................................462 lbs.
Table
Table size.....................................................5.9" x 18.1"
Max. table travel - manual.....................................20.1"
Table speed (variable).........................................6 to 82 fpm
Traverse movement (Z) Feed speed...............................37 ipm
Auto traverse movement.........................................0.02" ~ 0.24"
Max. manual travel.............................................7.1"
Spindle
Spindle speed..................................................60 Hz 3,450 rpm
Spindle motor..................................................2 HP
Wheel dimension OD x Width x Bore..............................8” × 0.5” × 1.3”
Machine dimensions
Floor space....................................................R-L 74.8" x F-B 63.0"
Height.........................................................83.9"
Net weight.....................................................1,740 lbs.
STANDARD ACCESSORIES:
Diamond dresser w/diamond (table type) -
Balancing arbor
One grinding wheel & hub -
Halogen machine lamp
Leveling screw set & pads -
Toolbox and tools
Operating manual & parts list -
Splashguard & nozzle
Automatic lubricator -
Exhaust Hood

Optional:
SPECIAL ACCESSORIES/REPLACEMENTS:
Price subject to change without notice:
Permanent Magnetic Chucks
#B09-0102 KANETSU or CHEVALIER (6" x 18) $1,200.00
#B09-0104 Inclinable 4" x 7" $1,180.00
#B09-0105 Inclinable 6" x 12" $1,450.00
#B09-0110 Chevalier fine pole chuck (0.5 + 1.5mm) $2,300.00
Electromagnetic Chucks & Controls
#B09-0106 KANETSU or CHEVALIER (6" x 18") $1,860.00
#B09-0601 Inclinable 6" x 12" $1,880.00
#B09-0609 Chevalier transverse bar pole chuck 6” x 18” (1+3mm) $2,400.00
**#B23-0106 Chuck controller with variable holding power for
Electromagnetic chucks $1,000.00
NOTE: B23-0106 must be ordered with either of the electromagnetic chucks.
Precision Vise
#B11-0101 2" x 3" $220.00
#B11-0102 2-1/2" x 4" $270.00
#B11-0103 3" x 4" $510.00
#B11-0104 3-1/2" x 5" $570.00
#B11-0105 4" x 5" $650.00
#B03-1410 Diamond dresser with diamond (0.5k) $180.00
*#B03-0101 Diamond dresser with diamond (0.1k) $105.00
**#B13-0101 Parallel dressing attachment $950.00
Balancing Stand
#B15-0102 Wheel balancing stand with leveling bubble $370.00

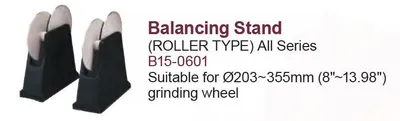

#B15-0601 Balancing stand (roller type) $570.00
Coolant & Dust Suction System
#B17-0101D Combination coolant and dust collector (9 g.) $1,950.00
#B17-0102D Heavy duty dust collector $1,380.00
#B17-0105D Coolant equipment with magnetic separator (13-1/4 g.) $2,410.00
#B17-0106H Combination coolant and dust collector with magnetic
separator (9 g.) $2,910.00
#B17-0107E Coolant system with paper filter (22-1/2 g.) $1,970.00
#B17-0110D Coolant system (11.1 g. $730.00
#B17-0901D Coolant system (24 g.) $930.00
*#B19-0102 Splash guard $580.00
*0203-00019001 Exhaust Hood $105.00
FAGOR Digital Readout System
**# Elevating digital readout $1,950.00
**#BL45-0102-F1Z Crossfeed digital readout $2,060.00
**#BL45-0103-F2 Crossfeed and elevating digital readout $2,580.00
Installation charges: Single Axis $485.00
Installation charges Double Axis $650.00 $650.00
Frequency Control
**#BL48-0101 Variable Spindle Speeds by A.C.
frequency control, 230V $3,250.00
**#BL48-0102 Variable Spindle Speeds by A.C.
frequency control, 460V $3,600.00
(must be installed at factory)
MISCELLANEOUS ACCESSORIES
*#B01-0104 LED machine lamp $200.00
*#B05-0101 Wheel hub (flange) and weights $125.00
#B07-01011 Punch former $3,040.00
#B41-0106 Universal wheel guard for side forming $390.00
All Prices Subject To Change Without Notice:

Price is F.O.B. Santa Fe Springs, CA or F.O.B. port of entry.
Our responsibility ceases when delivery is made to the carrier.
All list prices of optional accessories are good for new machine
orders only. Prices for in-field upgrades or retrofit options may
vary from this price list. Prices do not include local applicable tax.
Any claim for loss or damage must be handled by the purchaser against
carrier. Price and specifications subject to change without prior notice.

Standard machine color Is BLACK and WHITE.

*STANDARD ACCESSORIES WITH MACHINE
**FACTORY INSTALLATION IS RECOMMENDED
ONE YEAR PARTS AND LABOR WARRANTY
