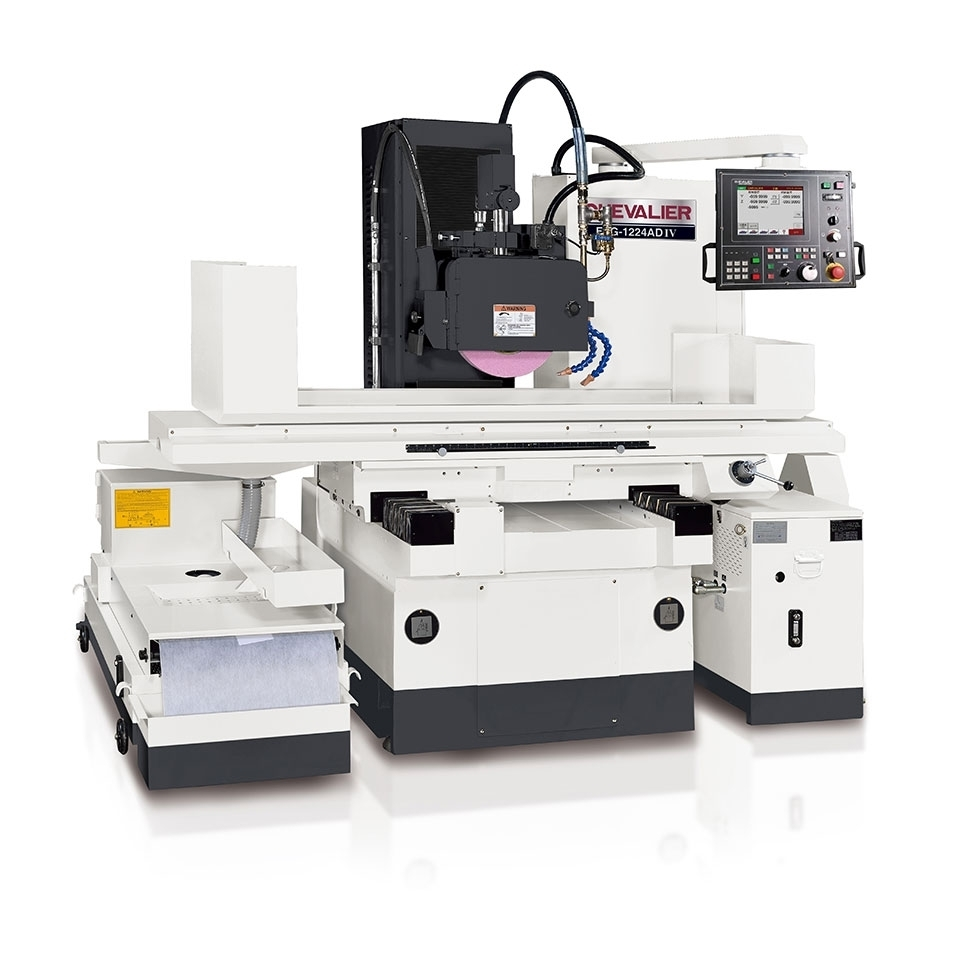

NEW CHEVALIER FULLY AUTOMATIC SURFACE GRINDER MODELFSG-1640ADIV with AC Servo control for elevating/cross
New Machinery, Surface Grinders Horizontal Spindle
NEW CHEVALIER FULLY AUTOMATIC SURFACE GRINDER MODELFSG-1640ADIV with AC Servo control for elevating/cross
| Table-W | 16" |
| Table-L | 40" |
| Horz/Vert | Horz |
| Power | 5 hp |
| Dimensions | R-L 126" X 81" X Height 91" |
| Weight | 7,920 Lbs. |
SPECIFICATIONS:
Maximum grinding capacity
Length............................................................40"
Width.............................................................16"
Maximum distance between spindle center to table surface..........24-3/8”
Standard Magnetic Chuck Size......................................15 ¾” x 39-3/8"
Longitudinal Travel Hydraulic.....................................40-9/16"
Table Speed (infinitely variable).................................16 - 82 fpm
Crossfeed travel Manual...........................................18"
Rapid Travel Speed................................................12.5 fpm
Auto. Intermittent................................................1/8” – 1 ¼"
Microfeed (per graduation)........................................0.00005"
Microfeed (per revolution)........................................0.005"
Grinding wheel....................................................14" x 2" x 5"
Wheel head infeed automatic infeed................................0.000050" - 0.003"
Rapid Travel......................................................0 - 20 ipm
Spindle motor.....................................................60hz/1750rpm/5hp
Voltage...........................................................230V
Packing dimension (L x W x H).....................................126" x 81" x 91"
Machine net weight................................................7,920 lbs.
SPECIAL ACCESSORIES/REPLACEMENTS:
Electromagnetic Chuck
#B09-0406 16" x 40” electromagnetic chuck.........................$5,200.00
#B09-04251 Chevalier 16”x40” LBP electromagnetic chuck............$11,000.00
#B09-06131 16”x40” transverse fine pole chuck.....................$10,900.00
#B23-0704 Chuck control (w/var. holding power control & auto.
demagnetizer).....................................................$1,110.00
NOTE: Chuck controls must be ordered w/either of the
electromagnetic chucks
Coolant System
#B17-0301D Coolant system w/ automatic paper filter (30 gal.).....$2,870.00
#B17-0302F Coolant system w/ automatic paper filter mag.
separator (30 gal)................................................$4,740.00
#0017-08057000 Spare paper filter (1 roll)........................$125.00
Dressing Attachment
**#B13-0504 Manual parallel dressing attachment...................$1,150.00
**#B13-0422 Over-the-wheel auto straight-line dressing &
compensation device...............................................$6,410.00
Miscellaneous Items
#B01-0403 Machine LED light.......................................$315.00
*#B05-0404 Wheel Flange & Weights with scales.....................$510.00
#B19-0413 Double sided water baffle...............................$4,600.00
**#B31-0415 7 ½ HP spindle motor upgrade..........................$3,330.00
Transformers
#BL48-0803 440-480V transformer (15KVA) (net).....................$3,800.00
Training
Machine training (2 operators/ 4 days, port to port)(net).........$6,000.00
Price is F.O.B. Santa Fe Springs, CA or F.O.B. port of entry. Our
responsibility ceases when delivery is made to the carrier.
All list prices of optional accessories are good for new machine orders only.
Prices for in-field upgrades or retrofit options may vary from this price list.
Prices do not include local applicable tax. Any claim for loss or damage must be
handled by the purchaser against carrier.
Price and specifications subject to change without prior notice.
STANDARD ACCESSORIES
** FACTORY INSTALLATION RECOMMENDED
SET-UP IS AVAILABLE UPON REQUEST FOR AN ADDITIONAL CHARGE
ONE YEAR PARTS AND LABOR WARRANTY
FEATURES:
- SMART iSurface Controller
- PC based, touch screen, 3 axes fully automatic surface and plunge grinding system
- 10.4” TFT high resolution 65,536-pixel color control to ensure ease of operation
- Rough increment, finish increment, spark out (0-9 times), and automatic
wheel head retract can be preset in grinding cycle to reduce cycle time
- Cycle interrupt, flip over for part inspection & final dimensions set up
- Precision roller bearings on all 3 axes
- Heavy duty spindle with 2 sets (4) of class 7 super precision angular contact ball bearings
- Ball screw on the Elevating and Crossfeed with AC servo motor
- Hardened and ground guideways for durability
- Quick table and crossfeed stroke adjusting device
- Wheel head will rise to end, start and reference position
and table parks at left or right side after cycle is completed
- MPG (manual pulse generator)
- To achieve better accuracy, the number of free passes between
down-feeds can be preset, depending on work piece material
- I/O diagnosis & alarm display
- In-Machine Dynamic Balancing
- Automatic table dresser with automatic compensation
system helps to reduce cycle time and minimize operator involvement
- iMachine Communications System TM connection ready
- Variable spindle speed
- Constance surface speed
- Spindle load force detection
