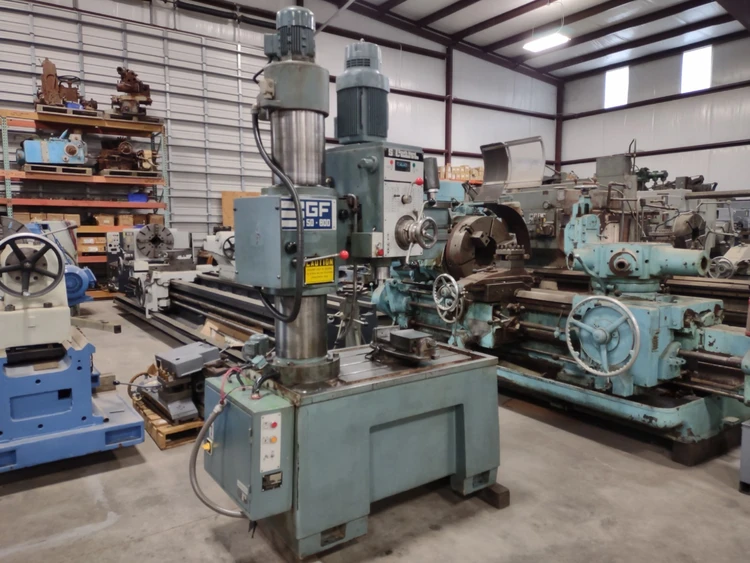

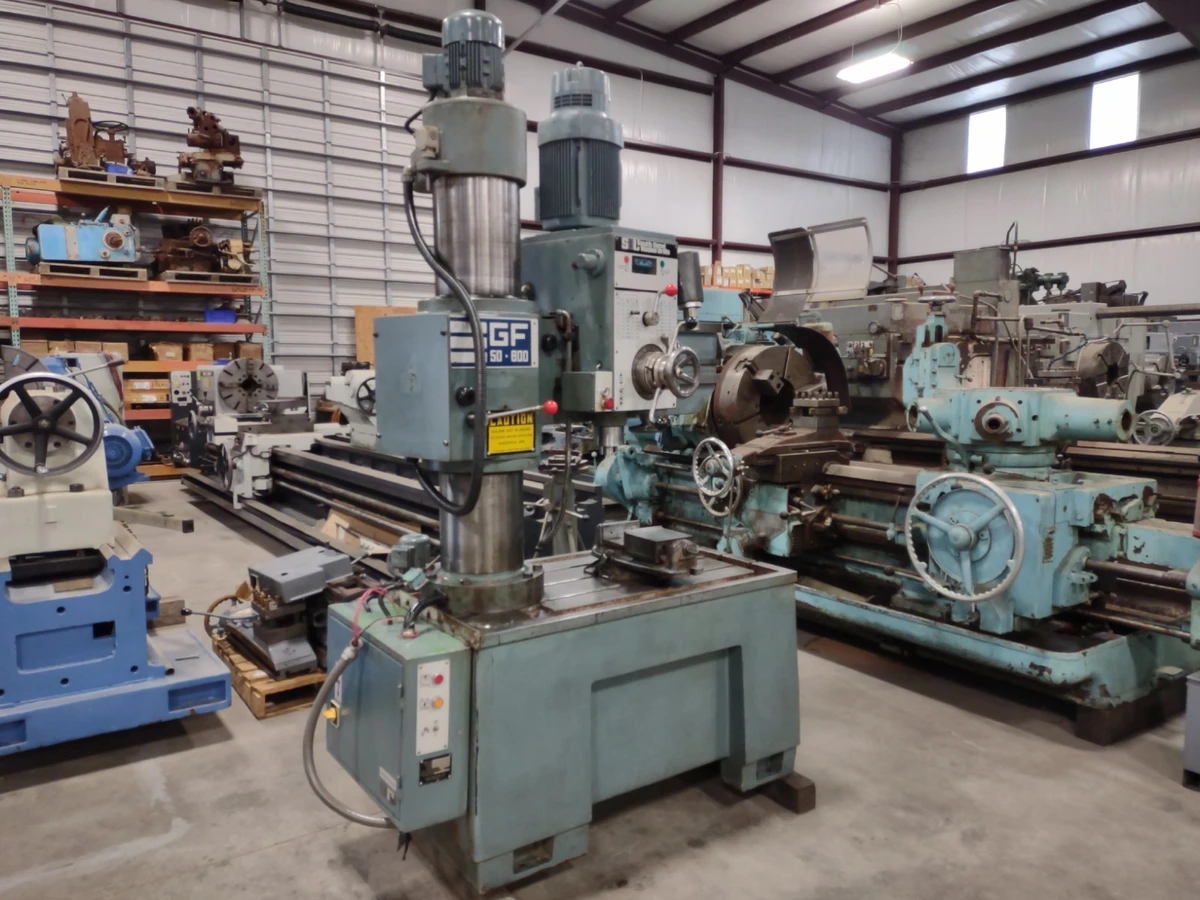

Used SOUTH BEND / FORADIA 2' 7" x 10" GF-50-800 RADIAL DRILL

27" X 10" SOUTH BEND RADIAL ARM DRILL PRESS
MODEL GF 50-800, NEW 198OS
SPECIFICATIONS:
DRILLING CAPACITY, MILD STEEL ........... 2"
DRILLING CAPACITY, CAST IRON ............ 2-3/8"
TAPPING CAPACITY, MILD STEEL ............ 1-9/16"
TAPPING CAPACITY, CAST IRON ............. 2"
COLUMN DIAMETER ......................... 10"
ARM LENGTH .............................. 27-1/2"
MIN/MAX DISTANCE, SPINDLE TO BASE ....... 3-7/16" / 27-7/16"
WORKING SURFACE OF BASE, WIDTH X LENGTH . 25" X 33"
SPINDLE TAPER ........................... #4 MORSE
SPINDLE STROKE .......................... 9-1/2"
TRAVERSE OF ARM ON COLUMN ............... 21-1/2"
TRAVERSE OF HEAD ON ARM ................. 21-3/4"
DRILLS TO CENTER OF CIRCLE, MIN/MAX ..... 14.75"/36.5"
FEEDS (6) ............................... .0019 TO .0138 IPR
SPINDLE SPEEDS (12) ..................... 40 TO 1,750 RPM
BASE DIMENSIONS ......................... 25"W x 47"L
APPROXIMATE WEIGHT ...................... 4,000 LBS.

EQUIPPED WITH:
25-3/4" X 33-5/8" T-SLOTTED WORK SURFACE WITH 8-3/8" X 23"
POWER ELEVATION OF ARM ON COLUMN
BUILT-IN COOLANT SYSTEM
REVERSING SPINDLE FOR TAPPING
1.5 H.P. ARM ELEVATION MOTOR
3.5 - 2.2 H.P. 3/60/230 - 460 VOLT SPINDLE DRIVE MOTOR

Note: Machine will be cleaned and cycled.
