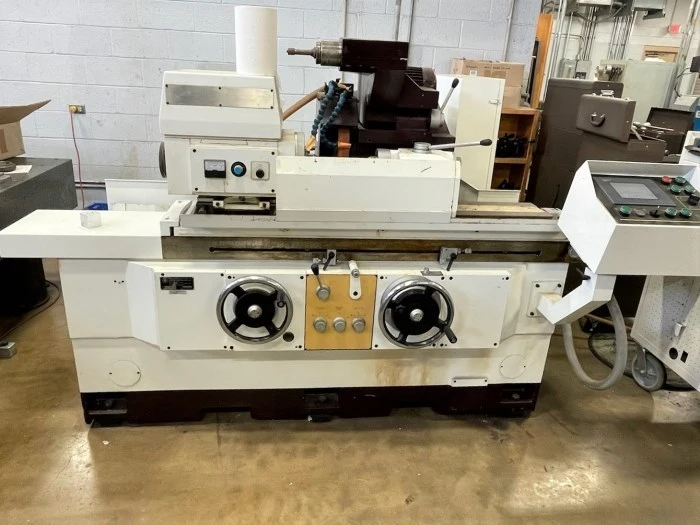

Chevalier CG-1224-A Cylindrical Universal Grinder

Specification:
MAKE: CHEVALIER
MDL: CG-1224-A

SWING OVER BED:........................................12.59"
CENTERS:...............................................24"
SPINDLE SPEED:.........................................350 RPM
SWIVEL HEAD:...........................................90 DEGREES
SPINDLE CENTER:........................................MT 4
TABLE SPEED:...........................................2-155 RPM
TABLE HANDWHEEL, PER REVOLUTION:.......................0.5"
TABLE SWIVEL ANGLE:....................................9 DEGREES
TABLE MINIMUM TRAVERSE LENGTH:.........................0.03"
GRINDING WHEEL SIZE:...................................16" X 2" X 5"
GRINDING WHEEL SPEED:..................................1,650 RPM
MAXIMUM PERIPHERY SPEED:...............................6,480 FPM
MAXIMUM INFEED TRAVEL:.................................9.64"
RAPID ADVANCE & RETRACT MAX TRAVEL:....................1.77"
MAXIMUM GRINDING WHEEL TRAVEL:.........................7.87"
WHEELHEAD MAXIMUM SWIVEL:..............................30 DEGREES
INFEED HANDWHEEL PER REVOLUTION: DIA...................0.1"
INFEED HANDWHEEL PER GRADUATION: DIA...................0.0005"
QUILL TRAVEL:..........................................1"
WHEELHEAD MOTOR:.......................................5 HP.
WORKHEAD MOTOR:........................................2 HP.
HYDRAULIC MOTOR:.......................................2 HP.
COOLANT PUMP MOTOR:....................................1/4 HP.
RATED POWER:...........................................10 HP.
MACHINE DIMENSIONS:....................................R-L 97" X F-B 73"
Height.................................................65"
Machine Weight 14,500 LBS
APPROX WEIGHT: 6,600 LBS.

Note:
Machine came out of a trade school.
Replacement cost is over $115,000.00 today.
