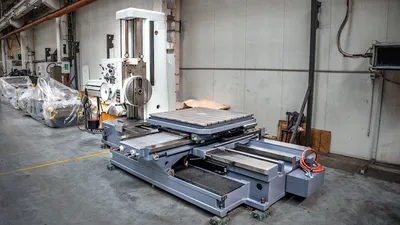

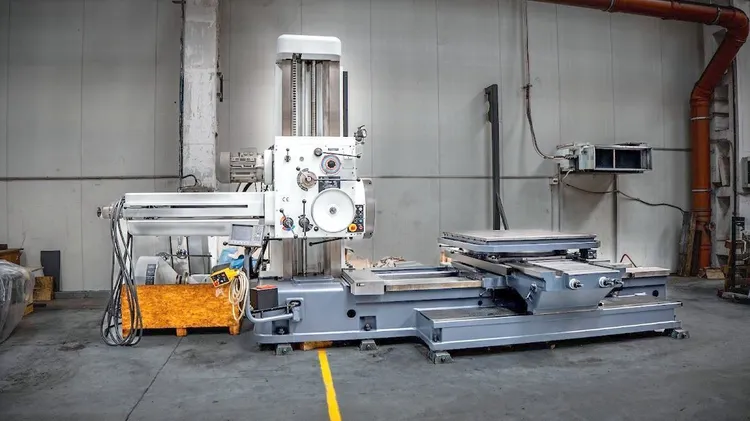

3.9" Used Tos Manual Table Type Horizontal Boring Mill Partial Refurbished By FERMAT In 2025

Spindle Size........................................3.93
Spindle Taper ISO...................................# 50
Spindle Speeds Main.................................7.1 To 1,120 Rpm's
Spindle Feeds (16)..................................0.0008 0 .025
Spindle & Head Stock Rapid Traverse.................1,600 IPM
Spindle Travel W Axis...............................35"
Spindle Head Travel Up & Down Y Axis................49"
Saddle Travel In & Out X Axis.......................48"
Rotary Table Size...................................44" X 49"
Table Travel Cross X Axis...........................63"
Saddle And Table Feeds .............................0.02 To .025
Facing Head Diameter ...............................23.6"
Facing Head Slide Travel............................8.276"
Max. Diameter Of Facing Head........................35.43
Facing Head Feeds...................................7.1 TO 224 IPM.
Rotary Table Feeds..................................0.056 To .025
Table Load..........................................6,000 Lbs.
Main Motor..........................................15 Hp.
Floor Space Width & Length..........................135" X 267"
Height..............................................120"
Weight..............................................30,860 Lbs.
D.R.O...............................................4 Axis Yes
Power Tool Lock.....................................Yes
Harden & Ground Bed & Cross Ways....................Yes
Built In Outriggers For Table Support...............Yes
Rapids..............................................Yes
Options:
Tailstock...........................................$19,100.00
Right Angle Head....................................$11,200.00
Transformer.........................................$5,900.00
FEATURES:
Original year of make of this machine is 2009 (ReTOS),
New electric in 2009, partly refurbished
by FERMAT in 2025.
Machine with modern Motor and Electrics (year 2009 - Original)

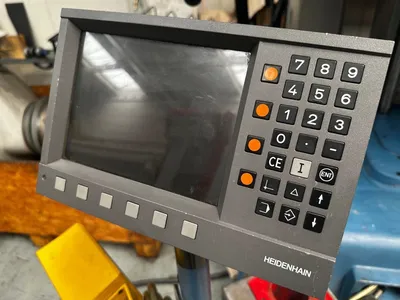

4 Axes DRO Heidenhain Positip 880
Scales on X, Y, Z W, B-Axis Encoder
Central Lubrication System for All Axes

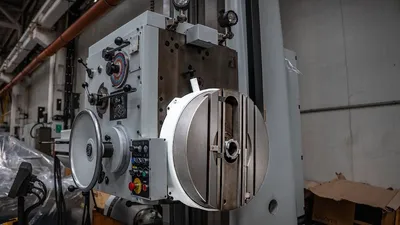

24 Inch Facing Head With Maximum Face Milling Diameter 35.5”

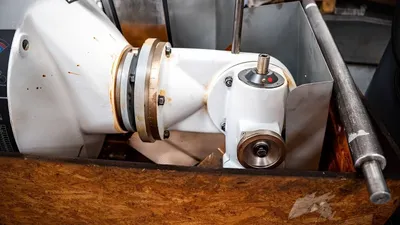

Millig head UFP 40 - included
Original documentation (2009)
3 phase/400V/50hz - electric
30-Days Warranty

SCOPE OF MACHINE REFURBISHMENT
Mechanical Fixes to Achieve an Outstanding Geometry and Performance

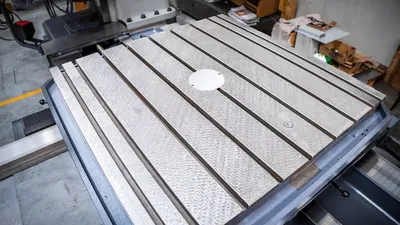

Table Plate checked (hand polished)
X-axis bed - completely reground, X-axis wedge surfaces re-lined
B-axis slides - re-lined, checked
Brand New Linear Scales with Cables
DRO Heidenheim checked and proven (Digital Readout) for 5-axes
(X,Y,Z,W + B)

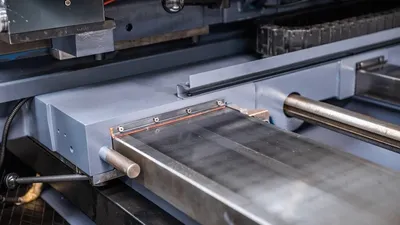

X-axis telescopic covers - NEW on the right side, original on
the left side (they are OK)
Z-axis telescopic covers - completely NEW
Headstock - re-scraped, Y-axis wedges re-lined
Millig head UFP 40 included – minimally used (checked)
New Cable Carriers
All New Control Labels
Wipers on all axes - original (cleaned & checked)
New Paint Job of the Machine and Its Accessories (Standard Grey-White Combination)
Workpiece Light on Top of the Headstock

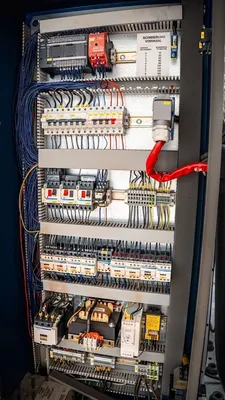

Electric components checked and proven – OK (new in 2009)
DOCUMENTAION, FOUNDATION, INSTALLATION

Documentation
Standard manual for use and maintenance of the machine.
Installation at Buyer’s Premises (Optional)
If Installation is included in machine offer:
The Installation of the machine in the Buyer´s factory will start once following
items are provided and confirmed by Buyer:
Completeness of the machine foundation, including pre-cast holes for the foundation
bolts Confirmation of dimensions according to the foundation plan, including photos
of the machine foundation.
Supply of power, air, and data lines for construction of the machine according to
the foundation plan.
Confirmation of delivery of the machine, including photos of delivered machine
Machine installation, leveling, and alignment will not begin until a minimum of
30 (thirty) days cure for the foundation.
Storage of the machine in the Buyer's facility has to be done under roof, with
proper or damage and at the disposal of Seller´s employees.
Buyer assistance is required during the entire installation process.
The Buyer will have available maintenance technicians during the installation of
the machine, for auxiliary work to be performed.
Additional Buyer Responsibility:
Seller is not responsible for:
Machine Foundation - The design, materials and the execution of the foundation.
Any building conversion necessary for installation of the machine Waterproofing
of the foundation or adjacent areas.
Grouting materials or it´s installation to anchor the machine Covering and
equipping of the supply channels or walking platforms.
Power supply lines and disconnect to the required transformer (not supplied)
or from there to the machine.
Technological tools
Training of the programmers in programming of the machine control system
Any and all liquids including all that is necessary for cooling systems,
hydraulic units and oils. Buyer should have these ready in specified type
and sufficient quantity at the beginning of installation.
Cranes, man lifts and other hoisting equipment with the relevant operators
and other materials (cables, hooks, poles, etc.) have to be ready and available
for Seller´s personnel whenever requested.
Machine Acceptance at Seller´s Premises
Acceptance will be carried out immediately after completion of the Machine at
the Seller’s premises. Scope of acceptance
Inspection and Presentation of the Machine
Check of machine completeness according to the order
Functional Tests of the Machine
Test of all functions of the machine including all options
Signature of the Acceptance handover protocol by the Buyer
Acceptance tests to be performed according to Seller standard procedures.

Warranty:
30-day money back Guarantee in case the machine is not mechanically satisfactory
to the customer. The machine must be returned in the same condition as when it
was received and your full purchase price less dismantling and freight expenses
to Cleveland, Ohio, will be refunded; or the machine repaired at our option.
In case of returning the machinery, all machinery sold with a 30-day warranty
must be shipped by air-ride truck and trailer and must be fully tarped.
Warranty Limitations
This warranty shall remain in effect only if the machine is used and maintained
in accordance with all operating and maintenance instructions set forth in the
manuals and instruction sheets furnished by Seller.
Seller shall have no liability to repair or replace defective parts until the
Buyer has fulfilled their payment obligations. No allowance will be made for
repairs or alterations made without Seller’s prior written consent or approval.
The limited warranty provided by Seller excludes the following:
Damage, malfunction, or failure caused by or resulting from improper maintenance,
misuse, neglect, accident or any other cause beyond the control of Seller - Damage,
malfunction, or failure caused by modification of the machine (mechanical or
electrical) without written authorization by Seller.
Damage, malfunction or failure by unprofessional mechanically assembly/installation
of the machine, as well as improper connection of the machine to the electrical
network according to the requirements of the country in question.
Damage, malfunction or failure caused by installation or use of accessories or
peripherals not purchased through or authorized in writing by Seller. Paint,
batteries, filters, fluids, fuses, light bulbs, or any commonly expendable item.
Damage, malfunction, or failure caused by common wear or force majeure
Damage to machines and/or components while being transported from Seller warehouse
or facility to destination. - Accessories or peripherals not manufactured by Seller,
which shall be subject only to whatever warranty that is supplied by the manufacturer
of such a product.
CNC control, Digital read-out (DRO), spindle motors and servo motors, spindle and
servo drives, which are covered by manufacturer warranty. - Parameters, functions
or performance which are not specified in the machine offer or other technical
documentation
