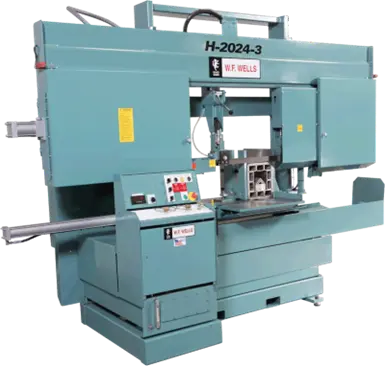

20"X24" W.F. Wells Dual Column Horizontal Saw Model H-2024-3 Semi-Automatic

Specifications
Capacity Rectangular @ 90 20" H X 24" W, Round at 90 20" Diameter
Weight Capacity 5,000 lbs.
Blade Speed 60-500 SFPM
Blade Size 1½" X .050" X 20'-4”
Blade Guide Roller Guides with Carbide Inserts
Blade Tension Hydraulic Order
Band wheel Size 22"
Vise Full Stroke Hydraulic, 15”
Blade Drive 10 HP, AC Vector Drive
Sawing Force 0-750 lbs.
Coolant Capacity 15 Gallons
Hydraulic Capacity 20 Gallons
Hydraulic Drive 2 HP Motor
Work Height 35"
Shipping Weight 3,900 lbs.
Electrics Wired to NFPA 79 Machine Tool Standards
Shipping Dimensions 122” L x 50’W X 93”H

Voltage.......Number
208-60-3......0010830
230-60-3......0010831
460-60-3 .....0010832
575-60-3......0010833
*Prices and specifications subject to change without notice.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description.........................................Order Number..Price
Hydraulic Hold-down, Manual.........................0052410.......$2,700.00
Automatic Length Stop Assembly......................0056707.......$450.00
Discharge Worktable, 20” X 48” L with Stock Stop....0053201.......$2,900.00
Discharge Worktable, 24” X 48” L with Stock Stop....0056045.......$3,500.00
Work Light, Wired In................................0052409.......$345.00
Blade Break/Stall Switch............................0056040.......$630.00
Hydraulic Chip Conveyor, Auger Style................0010867.......$6,050.00
High Speed Drive & Guides (1-¼" Blade)
400-3000 SFPM.......................................0051045.......$8,350.00
Outboard Vise.......................................0010887.......$10,650.00
Outboard Vise with Hydraulic Hold down..............0010884.......$13,300.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 lbs. Cap. Distributed Weight.......0050252.......$1,475.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight.....0050251.......$2,675.00
24” X 5’ X 5,000 lbs. Cap. Distributed Weight.......0050264.......$1,825.00
24” X 10’ X 10,000 lbs. Cap. Distributed Weight.....0050265.......$3,250.00
21" X 10' Powered Conveyor, Electric................0056202.......$10,350.00
Electronic Powered Conveyor 24” x 10’...............0010749.......$11,300.00
Consult Factory for Additional Accessories
*Prices and specifications subject to change without notice.
MADE IN USA
