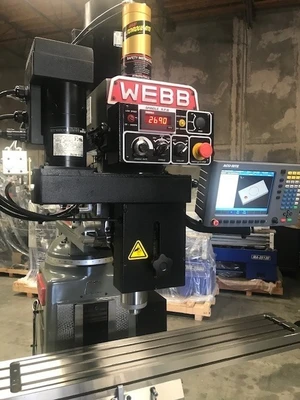

Webb Champ CNC 3 Axis Knee Mills Model 4VH-4VS MillPWR G2/3

Table Size.........................................10" X 54"
Table Weight Capacity..............................850 Lbs.
T-Slots On Table...................................3
T-Slot Size........................................5/8"
Drilling Capacity Manual...........................0.75
Drilling Capacity Power............................0.75
Boring Capacity....................................6" Diameter
Milling Capacity...................................2.0"
Spindle Taper......................................R- 8
Spindle Speeds Low.................................60 To 550 Rpm's
Spindle Speeds Variable High.......................550 To 4,500 Rpm's
Spindle Feeds......................................0.00015,.003 &.006 I.P.R.
Spindle Quill Travel...............................4"
Quill Diameter.....................................3.375"
Ram Travel.........................................22"
Spindle To Table Min. / Max........................2.75" To 20.5"
Spindle Centerline To Column Min. / Max............5" To 27"
Axis Travel Y Saddle Travel In & Out...............18"
Axis Travel X Table Travel Longitudinal............38"
Axis Travel Z Knee Travel..........................20.5"
Main Motor 3 Hp.(Inverter-Duty)....................220 Volts 3 Phase
Machine Floor Space................................R-L 84" X F-B 84"
Height.............................................84"
Weight.............................................3,400 Lbs.

Machine equipped with box colunm ways on the colunm and knee.

Prices Subject To Change Witout Notice:
Manual Milling Machine Options:
Stock Number..Description...........................................Price
WEBB..1035....Maxi Torque Power Draw Bar System for R-8 or 30 Taper.$790.00
Install Air Draw Bar................................................$100.00
Linear Z Axis Scale.................................................$1,190.00
Cool mist package, Stainless tank, gallon on coolant,
hose, nozzle and bracket............................................$495.00
WEBB..1111....11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series..$159.00
WEBB..1126....6” Precision Machinist Vise...........................$480.00
WEBB..1152....52 Piece Work Hold Down Clamp Set.....................$99.00
WEBB..1170-8..8 Inch Rotary Table / vertical and Horizontal.........$785.00
WEBB..1170-10.10 Inch Rotary Table / vertical and Horizontal........$695.00
WEBB..1170-12.12 Inch Rotary Table / vertical and Horizontal........$995.00
WEB..1200.....Coolant Pump System...................................$595.00
Install Coolant Pump System.........................................$100.00
WEBB..1205.....Coolant Pan/Chip Pan.................................$495.00
WEBB..2006....6” Riser Block with Hardware..........................$595.00
WEBB..2008....8” Riser Block with Hardware..........................$665.00
WEBB..2010....10” Rise Block with Hardware..........................$745.00
WEBB..3100....Precision Ground Ballscrews X and Y Axis..............$1,900.00
Voltage 440 Volts 3 Phase...........................................$1,000.00
