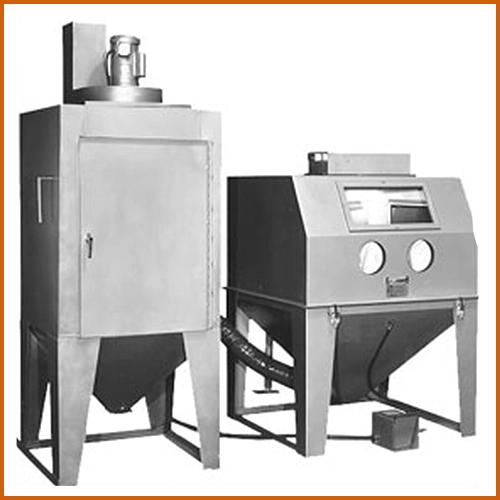

Trinco Model TRI 48X48SL/PC Pressure Type Shot Blast System
New Machinery, Shot Blast
Trinco Model TRI 48X48SL/PC Pressure Type Shot Blast System
A Trinca™ direct pressure cabinet utilizes an A.S.M.E. coded pressure pot to hold abrasive media. When the foot pedal control is depressed, air pressure is released into the pressure pot, pressurizing the pot and then forcing the media from the pot through the blasting hose to the nozzle.
Most Trinca™ pressure blast cleaning is done at 40-60 PSI. Due to these lower pressures, abrasive media breakdown is greatly reduced even though a high volume of media is being directed at the part to be cleaned. Most of the media is recovered through the recycling process.
Trinca™ Direct pressure blast cleaning is ideal for the very tough jobs, for applications where large surfaces must be cleaned quickly, for production blast cleaning or when the job requires the use of heavy mesh sizes of silicon carbide, aluminum oxide, garnet, etc. Other popular media that are used in TrincoTM pressure cabinets are glass beads, Trin mixes™, Rad-mix, and plastic blast cleaning media.
| Table Size | 4848 in |
| Dimensions | R-L 52" X F-B 82" X Height 74" |
| Weight | 1,575 Lbs. |
Inside:
Depth 48"
Width 48"
Height36" Overall:
Depth 74" Open 82"
Width 52"
Height76" Door Openings:
Side Door 20"x36"
Flip Top 48" x 48" Floor Space Incl.
Dust Collector: 100" x 77"
Shipping Weight: 1,575 Lbs.
Trinco Model 48x48SL/PC Pressure Blast Cabinet with the following:
14-gauge welded steel construction
48" Wide x 48" Deep x 36" Internal work area
16"x16" opening in each side wall with double strip rubber curtain and swing
side door
Spring counter-balance assembly for hinged cabinet top with safety interlock
12" high x 24" wide safety glass viewing window
8" diameter x 30" long cloth lined neoprene blast gloves
2 watt, 120V, ceiling mounted LED lamp assembly
1000 lb. capacity work floor with expanded metal grate over fine mesh steel screen
¾" Pressure regulator and auto draining moisture filter
¼" 1.0. tungsten carbide blast nozzle with safety enclosed foot pedal control
Clean air blows off gun
850 CFM Abrasive Separator with vibrating particle screen and tunable air wash
Pull-thru Dust Collector with 2 hp, 230V/1PH motor, 30 filter bags, and manual
filter shaker
60° cone, 1.27 cu. ft. capacity pressure tank with heavy duty mixing valve
Delivery 12 weeks after receipt of purchase order and down payment.
Options:
Extra bright, high Lumen, LED lighting upgrade #2-00382x3.......$195.00
¼" Boron nozzle upgrade #9-02068................................$185.00
Rubber curtains for interior cabinet back and side walls
Urethane internal wear lining for Abrasive Separator #2-00223...$1,325.00
Heavy duty media conveying hose, 8 ft. x 5" diameter
#9-110/4-885....................................................$282.00
URETHANE INT'L WEAR LINING 1.0 FOR ABRASIVE SEPARATOR TRI
2-200223 .......................................................$992.00
¼" Perforated steel work floor upgrade #2-2225x16...............$1,560.00
3 Phase Electrical with motor starter &120V transformer.........$3,245.00
36" diameter, 1,000 lb. capacity stationary manual turntable
#1-72001........................................................$2,450.00
26" diameter, 300 lb. capacity stationary manual turntable
#1-72000........................................................$1,750.00
Equipment Features
Trinca™ Abrasive separator is constructed of 10-gauge welded steel for durability and is tunable for different media.
Trinca™ Cabinet is constructed of 14-gauge welded steel.
ASME Coded pressure vessel with easy access clean out port, automatic sealing plunger, and pneumatic ¾" Piping and heavy-duty mixing valve
30 - 120 PSI pressure range
Abrasive capacity - 100 Lbs. standard
Trinca™ Vibrating particle screen in abrasive separator
Includes:
Trinca ™Fluorescent lighting Airline water filter
Pressure regulator and gauge Neoprene blast gloves
Safety enclosed foot pedal
½" ID heavy duty blast hose Tungsten carbide nozzle
¼" ID nozzle standard, 1/8", 3/16" and 5/16" optional
Specifications Dust Collector
Trinca ™ Pull through type dust collector with motor and impeller on "clean air side"
Includes 30 Trinca™ Tubular filter bags (145 Sq ft. surface area)
Trinco manual bag shaker.
Abrasive Separator
Rated 850 CFM Motor: 2HP 3450 R.P.M.
230V, 1 Phase, 60 HZ, 8.5 FLA
