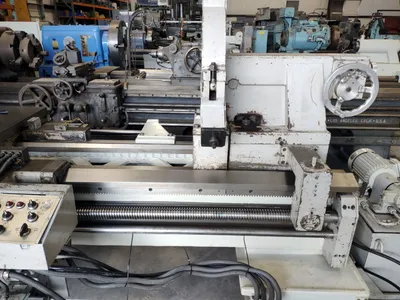

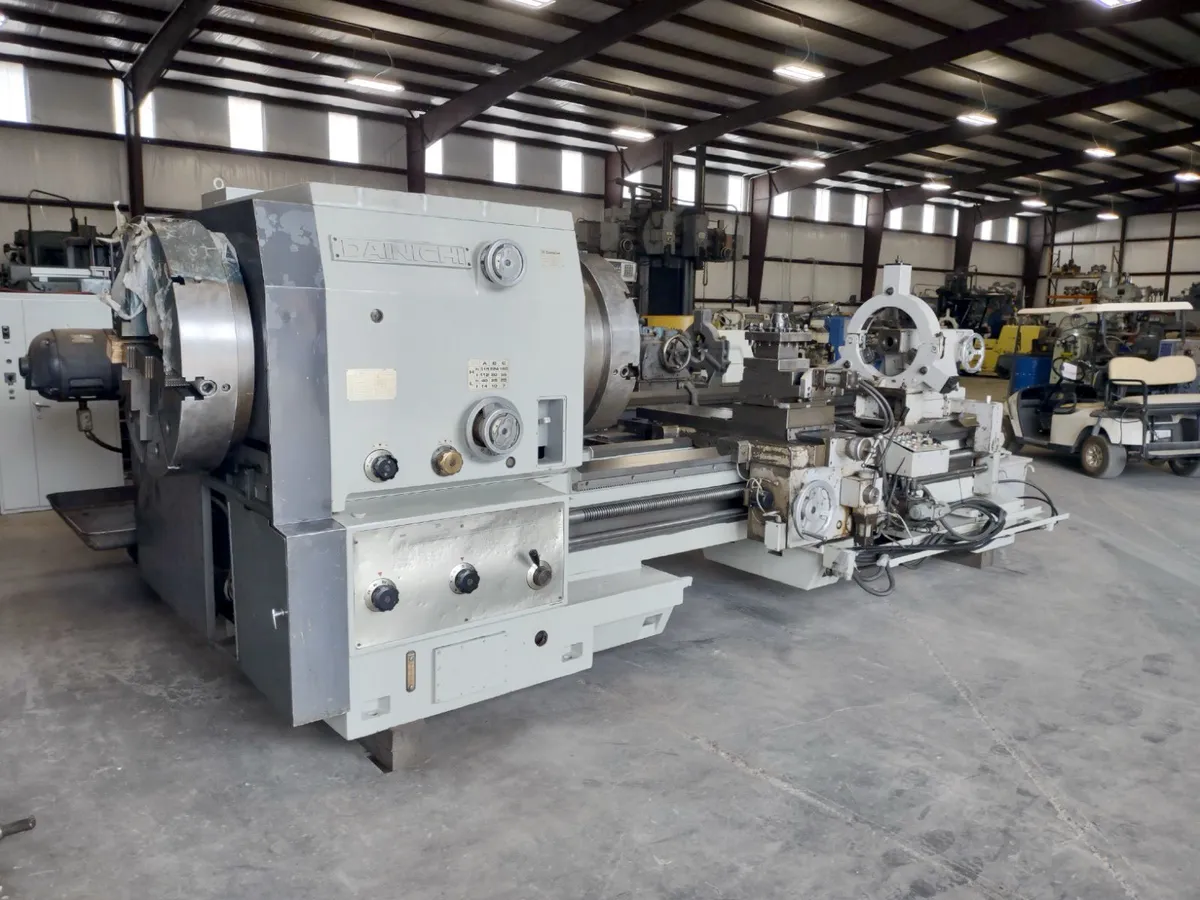

Dainichi Hollow Spindle Lathe 42" X 100" With 16" Spindle Bore

Swing Over Bed Ways.........................................39"
Swing Over Cross Slide......................................26"
Swing In Gap................................................56"
Length Of Gap...............................................17"
Center Distance.............................................100"
Spindle Hole................................................16-1/4"
Spindle Speeds .............................................7 To 315 Rpm's
Chuck Size With 16-1/4" Hole Front..........................32" 4 - Jaw
Chuck Size With 16-1/4" Hole Rear...........................32" 4 - Jaw
Feeds Cross ................................................0.0025 To .069IPR
Feeds Long .................................................0.101 To 1.30 IPR
Threads Inch................................................1/2 To 56 TPI
Threads Metric .............................................4 To 11 TPI
Tail Stock Quill Diameter...................................4"
Tail Stock Quill Travel1....................................10"
Tail Stock Taper ...........................................# 5 Morse
Floor Space Length & Width .................................R-L 206" X F-B 96"
Machine Height..............................................69"
Weight......................................................29,000 Lbs.
Main Motor..................................................40 Hp.
Steady Rest.................................................15"
Taper Attachment ...........................................Yes
Thread Dial.................................................Yes
4-Way Rapid Traverse........................................Yes
Coolant / Chip Pans (Will Be Made Prior To Shipping)
Note: Machine ways and saddle have been ground and refitted.
Cross slide reworked. Machine was never put back in service
after work was completed.
Machine will be cleaned & painted prior to shipping.
