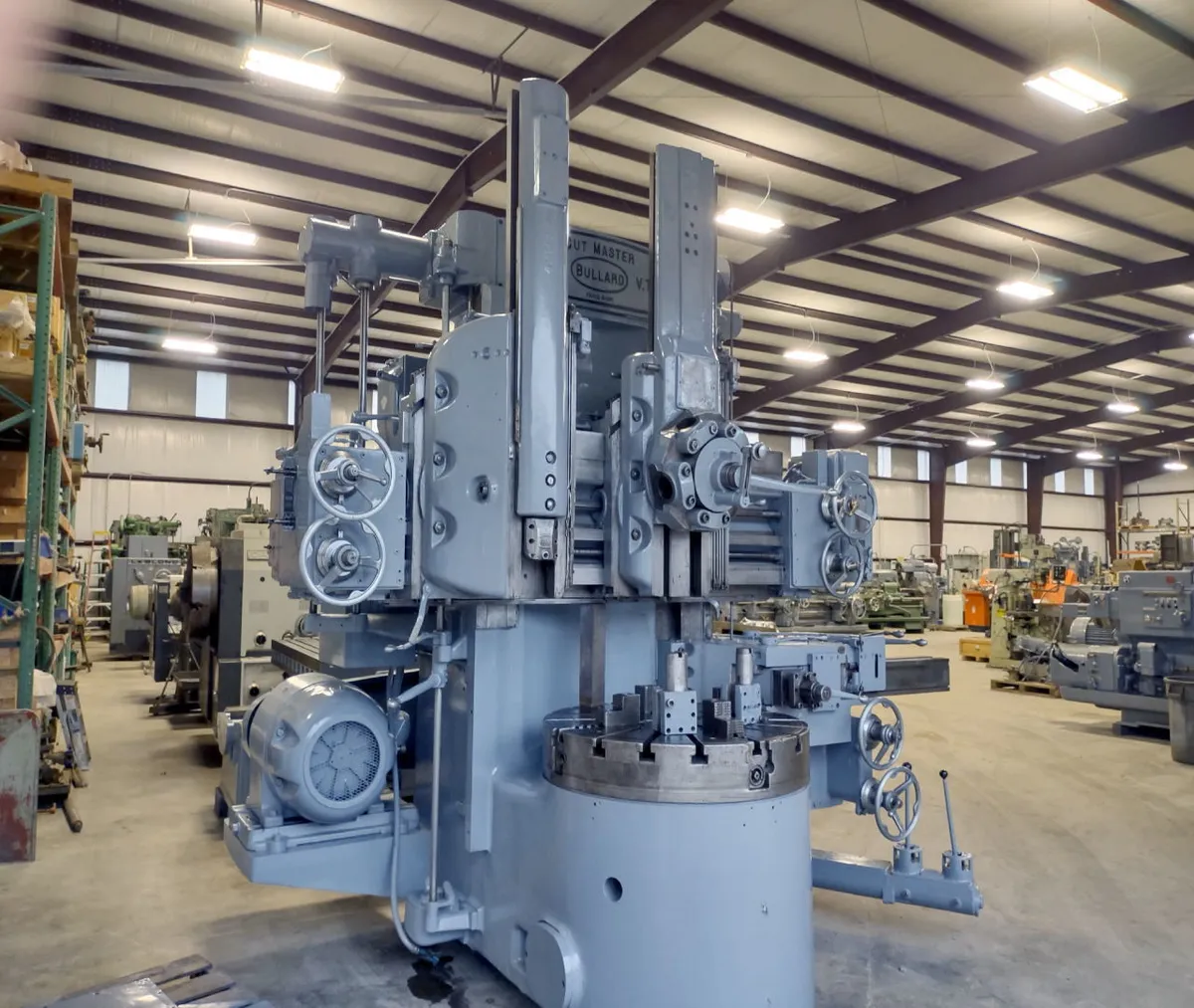

42" Used Bullard (Cut Master) Vertical Turret Lathe Model 42 Floor Shift
Have one to sell?
ConditionUsed
1 available
42" Used Bullard (Cut Master) Vertical Turret Lathe Model 42 Floor Shift
Table Size..............................................42" 3-Jaw W/Top Jaws
Swing Side Head Above Table.............................45"
Swing Side Head Below Table.............................54"
Cross Rail Travel.......................................25"
Height Under Rail.......................................37"
Cross Rail Traval Up And Down...........................26"
Table Speed.............................................4.1 To 150 Rpm's
Floor To Chuck..........................................36"
Turret Head Travel Left To Right........................26-3/8"
Turret Head Swivel......................................30 Degrees
Turret Head Turret Travel Up & Down.....................30-3/8"
Max. Distance Table To Turret Face......................48-1/4"
Turret Head Position....................................5
Turret Hole Diameter....................................2-3/4"
Turret Head Feeds.......................................0.026 To 500 IPR
Side Head Travel In & Out...............................21"
Side Head Travel Up & Down..............................37"
Side Head Feeds.........................................0.026 To 500 IPR
Left Head Ram Travel Right To Left......................26-3/8"
Left Hand Ram Travel Up & Down..........................30.5"
Left Hand Ram Swivel....................................30 Degrees R To L
Left Hand Ram Tool Post Hole............................3-3/8"
Ram Head Feeds..........................................0.026 To 500 IPR
Main Motor..............................................30 Hp.
Max. Overall Height Rail and Heads In Highest Postion...145"
Machine Floor Space.....................................R-L 131.5" X F-B 104"
Machine Height..........................................9'8"
Weight..................................................42,500 Lbs.
Power Elevation Of Rail.................................Yes
Rapid Traverse To Both Head.............................Yes
Built In 4 Way Tool Post On Side Head...................Yes
Turret Head.............................................Yes
Floor Shift.............................................Yes
Condition: Good, Machine Has Been Cleaned, Painted and Cycled.
The 4-Jaw chuck has been replaced with a 3-jaw independent scroll
chuck with top jaws.
Note: Reconditioning:
Machine Has Been Cleaned, Painted And Cycled.
1. Turret Slide & Swivel in our facility. Dismantle unit as required. Clean all component parts.
2. Remachine all bearing surfaces of the Turret Slide to remove localized wear.
3. Remachine all bearing surfaces of the Turret Swivel to accept Turcite Way material.
4. Install Turcite to the Swivel and machine to correct height to compensate for material removed from Turret Slide.
5. Machine or grind oil grooves into swivel material for proper delivery of lubrication oil.
6. Block and hook frost all bearing surfaces of the turret slide for "pockets" for retention of lubrication oil.
7. Precision scrape and fit turret slide to swivel for proper bearing fit.
8. Manufacture new meehanite cast iron gibs for turret slide. Oil groove for proper delivery of lubrication oil. Precision scrape and fit allowing full range of adjustment to compensate for any future wear. These gibs will be the earless type.
9. Install triple lead downfeed screw and nuts. Install into nut body and realign to assure smooth and accurate operation.
10. Hang turret assembly in vertical position and reset turret locking mechanism for proper operation. Reset backlash eliminator to proper setting.
11. Cross-rail screws and nut will be replaced in ram and turret saddles.
12. Turret and ram vertical screws and nuts replaced.
13. All feed and rapid shafts seals will be replaced. Hand wheel seals will be replaced, gear boxes will be cleaned and checked. Hydraulics and main motor will been reconditioned.
Machine should be ready to ship in about 26 to 30 weeks after receipt of PO and down payment.
