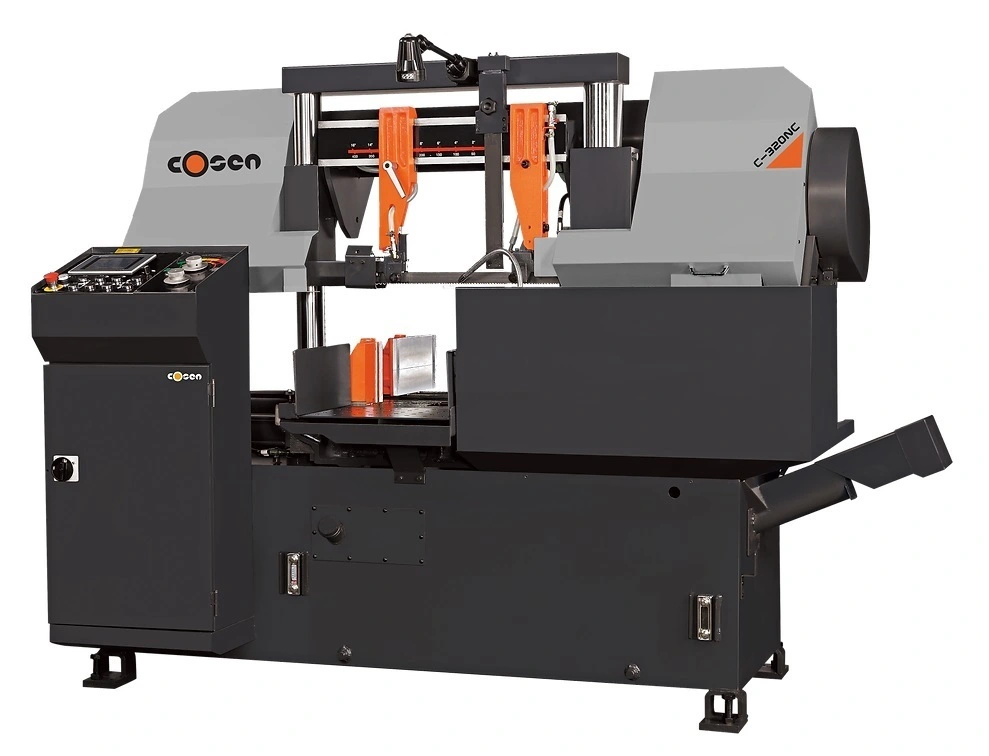

COSEN Model C-320NC 12.6 X 12.6" Fully Automatic Horizontal Dual Column Band Saw

Cosen's C-320NC is a high production machine which incorporates a massive base,
sturdy saw frame, with an extremely heavy-duty gear box, a 5 HP drive motor, and
a user friendly programmable control for ease of operation. Rugged, dependable,
and advanced technology are all words that describe Cosen's C-320NC production
machine, making it the perfect saw fore most production settings.
Control System: Smart NC-
Smart NC-100 (SNC-100) technology provides most of the benefits of NC controlled
saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100
different jobs including quantity and length of cut. The controls automatically
compensate for Kerf loss after data input and requires no manual calculation of
number of times to index.

Machine Specifications:
Maximum Cutting Capacity Round.................................12.6”
Square.........................................................12.6” x 12.6”
Rectangular....................................................12.6” x 15”
Bundle Width:..................................................7.5” - 11.8”
w/ optional top clamps Height:.................................2.8” - 5.5”
Remnant Piece..................................................2”
Work Bed Height................................................31.1”
Blade Variable Speed...........................................66 – 328 fpm
Size...........................................................13’ 11” x 1.25” x .042”
Motor Saw Blade................................................5 HP
Hydraulic......................................................1 HP
Coolant........................................................1/8 HP
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke............................................0” to 15.9”
Multiple Stroke Indexing.......................................0” to 999”
(Automatic kerf compensation)
Optional.......................................................460, 3 PH, 60 Hz 10 Amps
Floor Space....................................................R-L 82.7” x F-B 82.8”
Height.........................................................70.1”
Weight.........................................................3,758 LBS

Included Accessories
Blade “clip” device eases blade changing, when necessary, by holding the blade
on the band wheel during installation, making it very easy for one person to
change the blade.
Adjustable fence to support bundled cut-off stock
Additional flushing hose for cleaning
Built in work light
Bimetal saw blade
Toolbox with tools, leveling pads, and an additional wire brush
Operation & parts manual
Full Stroke Vises
Double Retracting Vises
Hydraulic Powered Chip Auger
Heavy-Duty 7’ Idle conveyors w/ vertical alignment rollers

Optional Accessories
Variable Vise Pressure Control System (Part# AHA-10400KIT)....$1,395.00
Hydraulic Top Clamps (Part# AHC-1900A)........................$2,795.00
Heavy-duty Roller Table 5’ long (Part# RT-5-19PM).............$2,195.00
Heavy-duty Roller Table 7’ long w/vertical Rollers
(Part# 05RC-4470-2M)..........................................$2,795.00
Heavy-duty Roller Table 10’ long (Part# RT-10-19PM)...........$3,495.00
Micro Droplet Applicator......................................$2,795.00
Buck Boost Transformer for incoming power of 208V or below....$1,495.00
Voltage Change to 460V, 3 Phase...............................$995.00
QR Code Reader................................................$2,995.00
*Please note that machine design and specs can change without notice*
