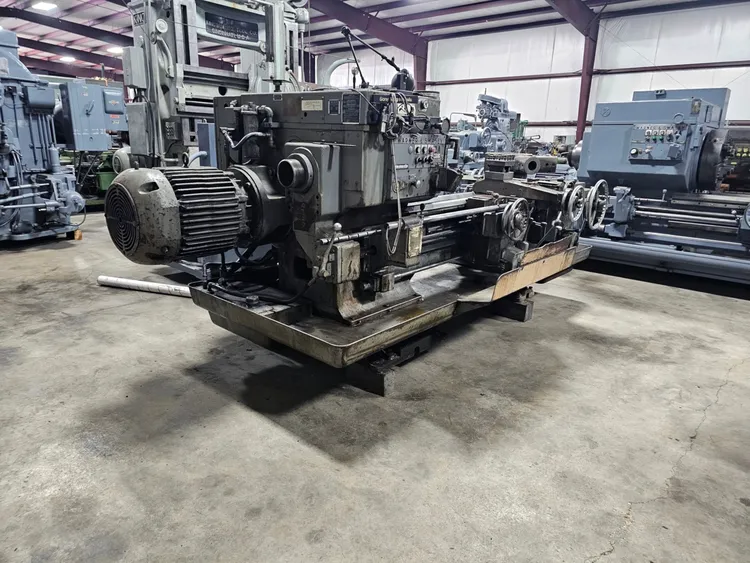

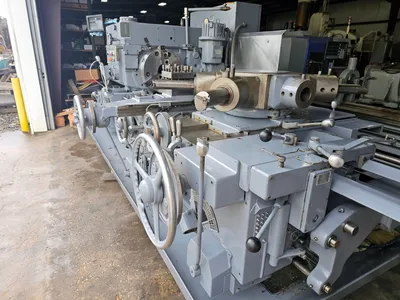

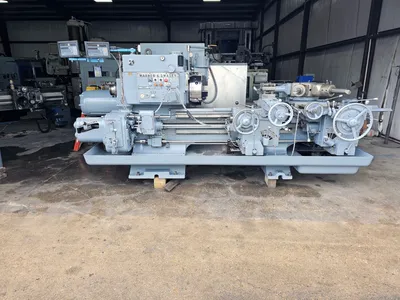

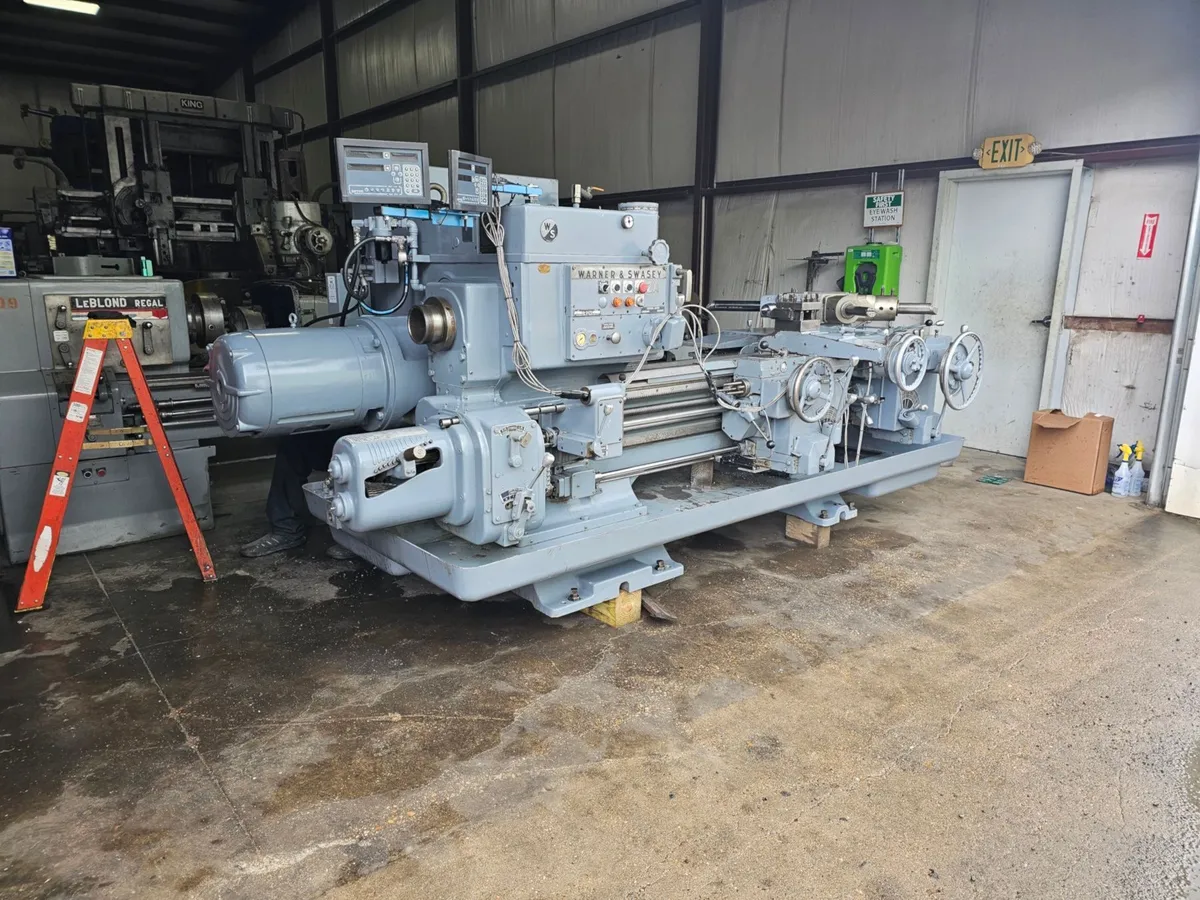

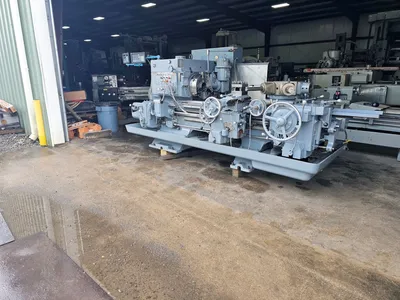

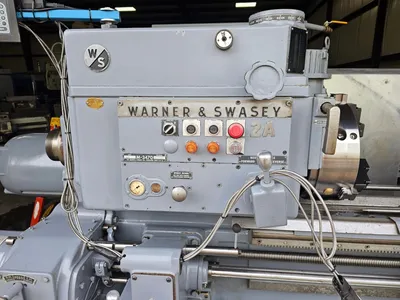

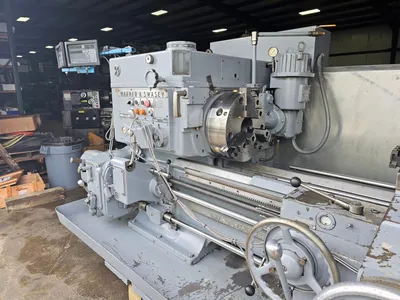

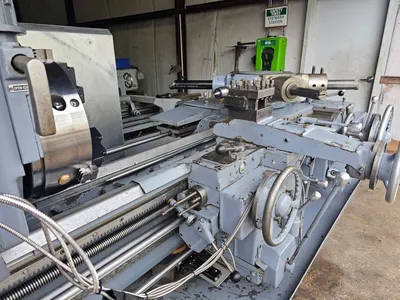

2 A Used Warner & Swasey Square Head Saddle Type Turret Lathe Model 3470 Lot 78

Swing Over Bed Ways............................20-1/2"
Swing Over Cross Slide Carriage................16"
Center Distance................................43"
Spindle Hole...................................3-3/4"
Spindle Nose...................................A - 11
Spindle Speeds.................................6 To 1,117 Rpm's

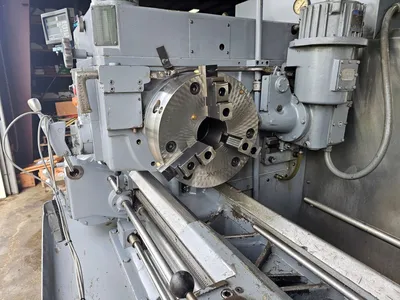

Chuck Size.....................................18" 3-Jaw Like New
chuck Size.....................................15" 3-Jaw Power Wrench Type
Feeds Long.....................................0.005 To .167 I.P.R.
Feeds Cross....................................0.0025 To .082 I.P.R.
Main Motor.....................................20 / 40 Hp. 440 Volts
Floor Space....................................R-L 150" X F-B 83"
Machine Height.................................65"
Weight.........................................12,500 Lbs.
Flange Holders Long............................1
Flange Holders Short...........................4
Power Wrench Chuck Wrench......................Yes
Cross Sliding Rear Turret......................Yes
Rapid Traverse Front & Rear Carriages..........Yes
Tool Post 4 Way On Front Carriages............ Yes
Coolant........................................Yes

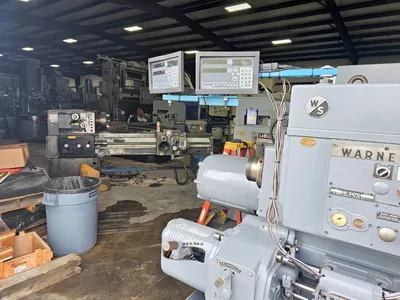

Newall DRO Readout On Front And Rear Turrets...Yes
Taper Attachment On Rear Turret................Yes
With Turret Tooling As Viewed..................Yes

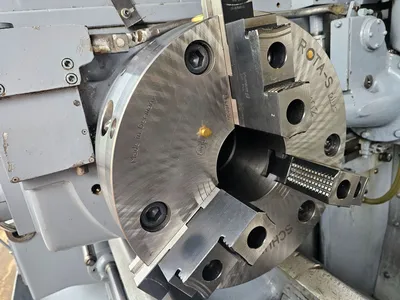

Like New Schunk Rota-s - Plus Chuck Built In
Germany........................................Yes

Note Reconditioning:
Machines front & rear aprons and rapid traverse box
were reconditioned. Rapid traverse drive box were reconditioned, new
bearings in main motor. New feed and rapid shafts. Headstock cleaned and flushed,
new filters and oil. New lockdown pin and bushing in hex and square turret. New nut
and screw in cross slides front and rear. Gibs reworked and refitted.

Machine will be cleaned, painted, and cycled. Machine may be seen under power with
proper notice.
Machine was reconditioned about two years ago only ran for a few months.

Reconditioned Price: $74,500.00
