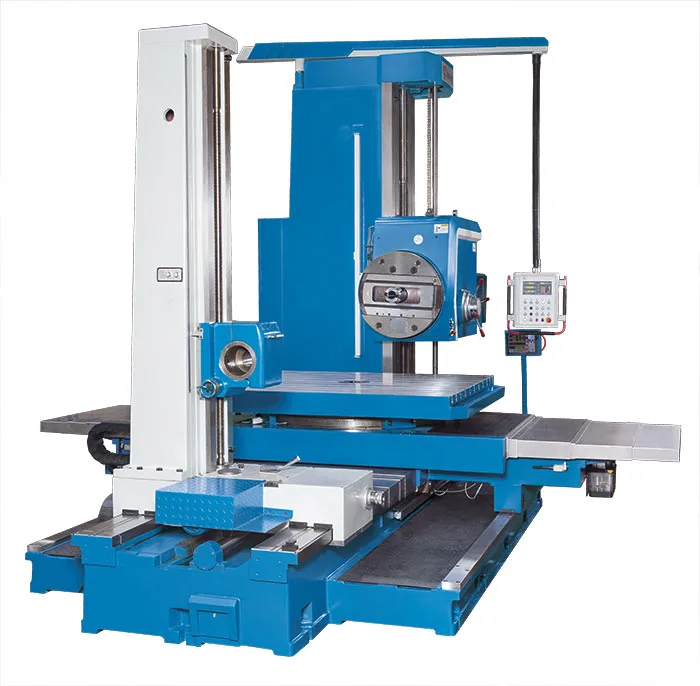

New Knuth 5" Horizontal Boring Mill Model BO 130
The BO series of conventional boring and milling machines with a fixed column is designed for horizontal multi-sided drilling and milling of workpiece weights of up to 10 tons. The movable table can rotate 360°. The drill head moves on the column and the spindle has a long stroke on the W-axis. Efficient machining and short non-productive times result from high drive power and automatic feeds on all axes with rapid traverses. In addition, these conventional boring mills have a facing slide with a long stroke.
Large work area with W-axis and facing slide
For workpiece weights up to 10,000 kg (22,046 lbs.)
Thread cutting unit
Setup table rotates 360°
Telescoping stainless steel covers on all guides
SPECIFICATIONS
WORKING AREA
Drilling capacity...............................2.36 in
Table set up area...............................63 in x 71 in
Table load capacity.............................22,000 lbs.
Spindle axis-to-table surface distance..........0 in - 70.87 in
Rotation speed of rotary table..................1.2 rpm
HEADSTOCK
Speed range-Steps...............................24
Speed range.....................................4 rpm - 800 rpm
Spindle diameter................................5 in
Spindle torque (max.)...........................2.313 ft.lb.
Spindle mount Taper.............................50
Facing slide speed..............................2.5 rpm - 125 rpm
Facing slide speed-Steps........................18
Feed force, axial (max.)
Facing slide torque (max.)......................3.614.04 ft.lb.
FEED
Facing slide feed...............................0.003 in/min - 0.472 in/min
Feed X-axis-Steps 36
Feed X-axis.....................................0.00039 in/R - 0.23622 in/R
Feed Z-axis-Steps 36
Feed Z-axis.....................................0.00039 in/R - 0.23622 in/R
Feed Y-axis-Steps 36
Feed Y-axis.....................................0.00039 in/R - 0.23622 in/R
Feed W-axis-Steps 36
Feed W-axis.....................................0.00039 in/R - 0.23622 in/R
Facing slide feed-Steps 18
RAPID FEED
Rapid feed X-axis...............................98.43 in/min
Rapid feed Y-axis...............................98.43 in/min
Rapid feed W-axis...............................98 in/min
Accuracies
Read-out accuracy (optic).......................0.0004"
Counter-bore accuracy H7 .......................Ra-1,6 µm
DRIVE CAPACITY
Motor rating main drive.........................20.1 Hp.
Motor rating hydraulic pump.....................0.5 Hp.
Motor rating servo drive........................7.4 Hp.
Measures and Weights
Overall dimensions.............................R-L 150" X F-B 277" X Height 150"
Weight.........................................64,460 lbs.
Standard Equipment
3-axis position indicator
Tailstock
Alignment wedges
Central lubrication
Work lamp
Foundation bolts
Operating tools
Operator manual
BO 130 Horizontal Drilling/Milling Unit 460V, 3Ph, 60Hz.
Heavy drilling and milling unit for machining large and heavy work pieces
• Rigid, hardened and precision-ground square guides ensure many years of
accurate operation
• Mechanical functions that may not be run simultaneously are provided with
interlocks
• Headstock and feed gears are equipped with an overload clutch
• Lever-operated shift gears for positioning of the wheels in the desired position
• Faceplate and drill spindle with different task-specific speed ranges according
to the various functions
• Table rotates 360° and tailstock included
• Telescoping steel cover protects the guides from chips and dirt
• 3-axis position indicator
8822 $21,400.00
Installation verification and machine operation training (2 KNUTH technicians,
5 business days on site) includes KNUTH technician's labor from 8am-5pm
(Monday-Friday), transportation, local travel, meals and lodging.
8815
Warranty: Standard (12) months new machine warranty, one shift operation
(2,000 hours).
Covers parts, labor, and domestic travel, except for special offers. The customer
is responsible for any freight and all other associated costs not covered by warranty.
Warranty commences upon delivery of machine. Consumables and operator misuse are
excluded. Any damage to machine as a result from incorrect setup, misuse, negligence,
poor maintenance, or other circumstances beyond our control is not covered under
warranty.
Note: Prices Subject to change without notice.
Delivery 9 months after receipt on Purchase Order and Down Payment.
