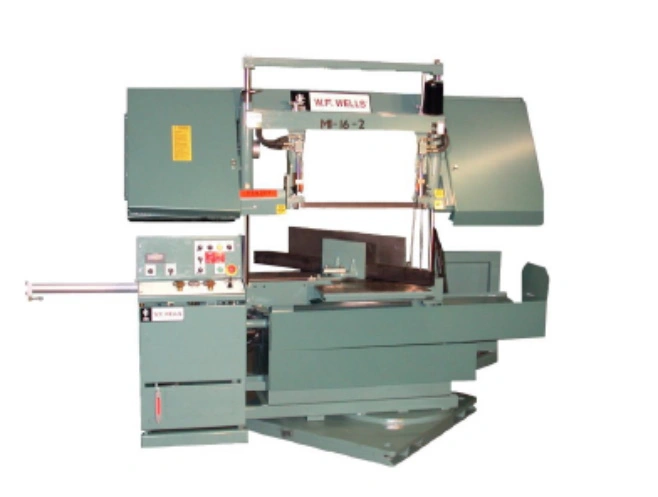

16"X26" W.F. Wells Dual Column Horizontal Band Saw with Mitering Model M16-2

Machine Specifications
Capacity: 16″ H X 26″ W @ 90°, 16″ H X 16″ W @ -45°
Weight Capacity: 5,000 lbs.
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 16′ 8″
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Hydraulic
Bandwheel Size: 20″
Vise: Hydraulic
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs.
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35″
Shipping Dimensions….120”L x 60”W x 90”H
Shipping Weight: 3,800
Electrics: Wired to NFPA 79 Machine Tool Standards
Hydraulic Swivel Base with Miter Vise, Single Direction
Digital Angle Display
In Feed Roller, Back of Saw Bed
Electronic Door Interlocks

Voltage.................Order Number
208-60-3................0010820
230-60-3................0010821
460-60-3................0010822
575-60-3................0010823
Prices and specifications subject to change without notice.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description Order Number Price
Hydraulic Holddown, Saw Vise.........0056038..........$3,250.00
Hydraulic Chip Conveyor, Auger Style.0056036..........$5,475.00
Free Standing Outboard Vise...........................$11,500.00
Laser Shadow Line....................0056325..........$3,050.00
Blade Break/Stall Switch.............0056040..........$675.00
Mist Coolant.........................0010774..........$3,050.00
Non-Powered Conveyor 21" X 5'........0050252..........$1,850.00
Non-Powered Conveyor 21" X 10'.......0050251..........$2,875.00
Electronic Powered Conveyor 24” x 10’0010749..........$11,875.00

Other Conveyor Options Available Upon Request
Prices and specifications subject to change without notice.
MADE IN USA
