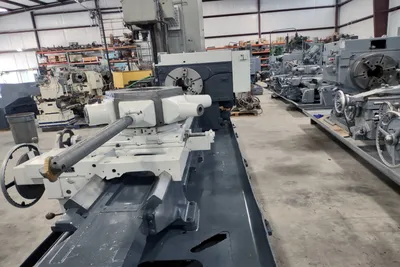

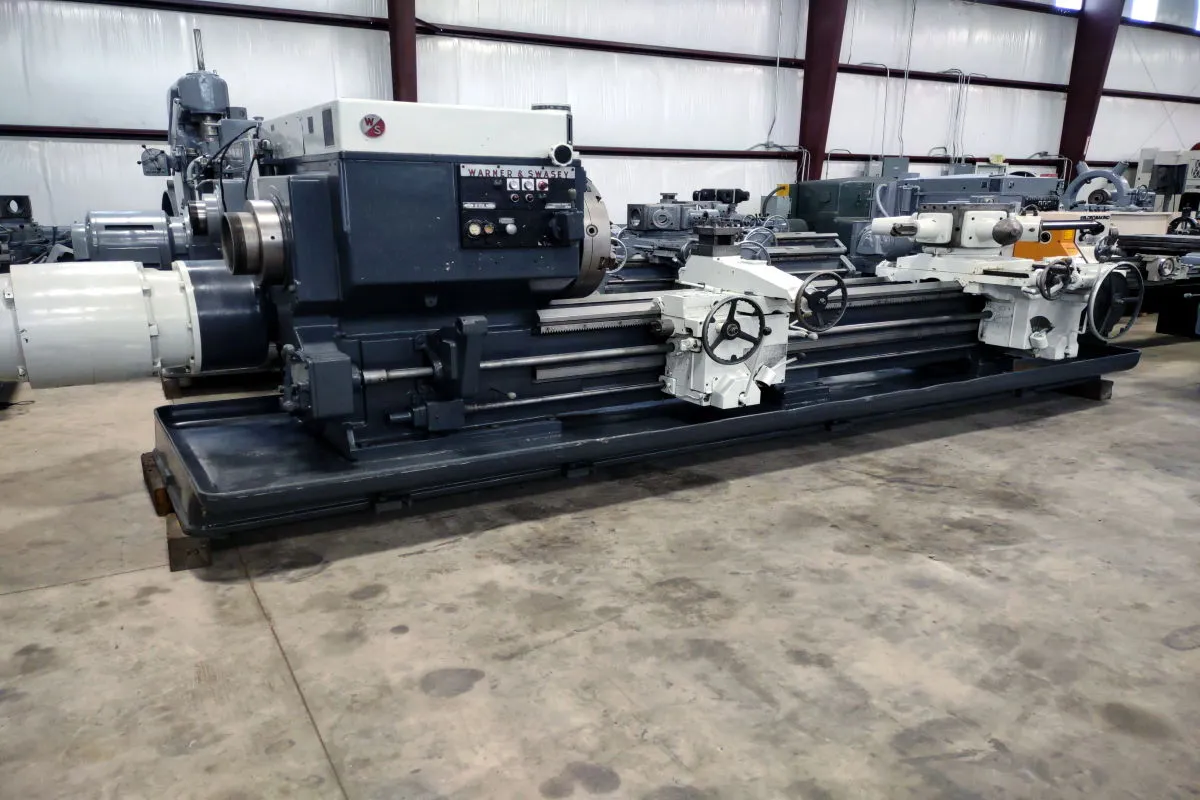

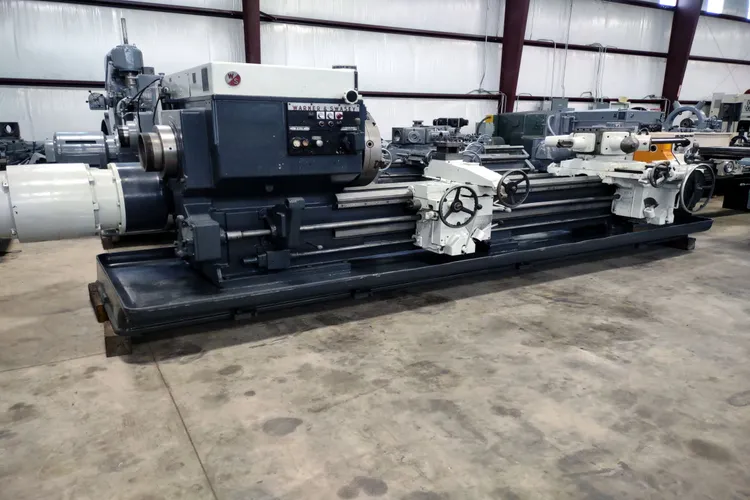

ONE (1) USED: 4A WARNER & SWASEY LONG BED SQUARE HEAD TURRET LATHE

Swing Over Bed Ways........................................28-1/4"
Swing Over Cross Slide Carriage............................22"
Center Distance............................................124"
Center Distance Spindle Nose To Turret Face................144"
Spindle Hole...............................................9-1/4"
Spindle Speeds.............................................20 To 526 Rpm's
Spindle Nose...............................................A-15
Chuck Size.................................................24" 3-Jaw
Feeds Cross................................................0.0035 To .167 I.P.R.
Feeds Long.................................................0.005 To .167 I.P.R.
Main Motor.................................................50 / 25 Hp.
Floor Space................................................23'Long. X 84"Wide
Machine Height.............................................84" High
Weight.....................................................24,000 Lbs.
Chuck Size (New Gator Heavy Duty Not Pictured).............25" 4-Jaw
Flange Holders.............................................6
Chip Pan...................................................Yes
Coolant....................................................Yes
Tool Post 4 Way On Front...................................Yes
Cross Sliding Rear Turret..................................Yes
Rapid Traverse Front & Rear Carriages......................Yes

Note: Machine will be reconditioned.
Note Reconditioning:
Machine's front and rear aprons reconditioned.
Front & rear rapid traverse boxes reconditioned.
Rapid traverse drive box reconditioned.
New bearings in main motor.
New feed and rapid shafts.
Headstock cleaned and flushed, new filters and oil.
New lockdown pin and bushing in hex turret and square turret.
New nut and screw in front cross slide and rear cross slide.
Gibs reworked and refitted.
25" 4-Jaw Heavy Duty Gator Chuck.
Machine has been cleaned, painted and cycled.
Reconditioning will take 12 to 16 week once P.O. is received.
Price after reconditioning $139,500.00

It is recommended that you rebore the flange tool holders on the rear
turret to ensure they are on center once the machine is level.nning condition.
