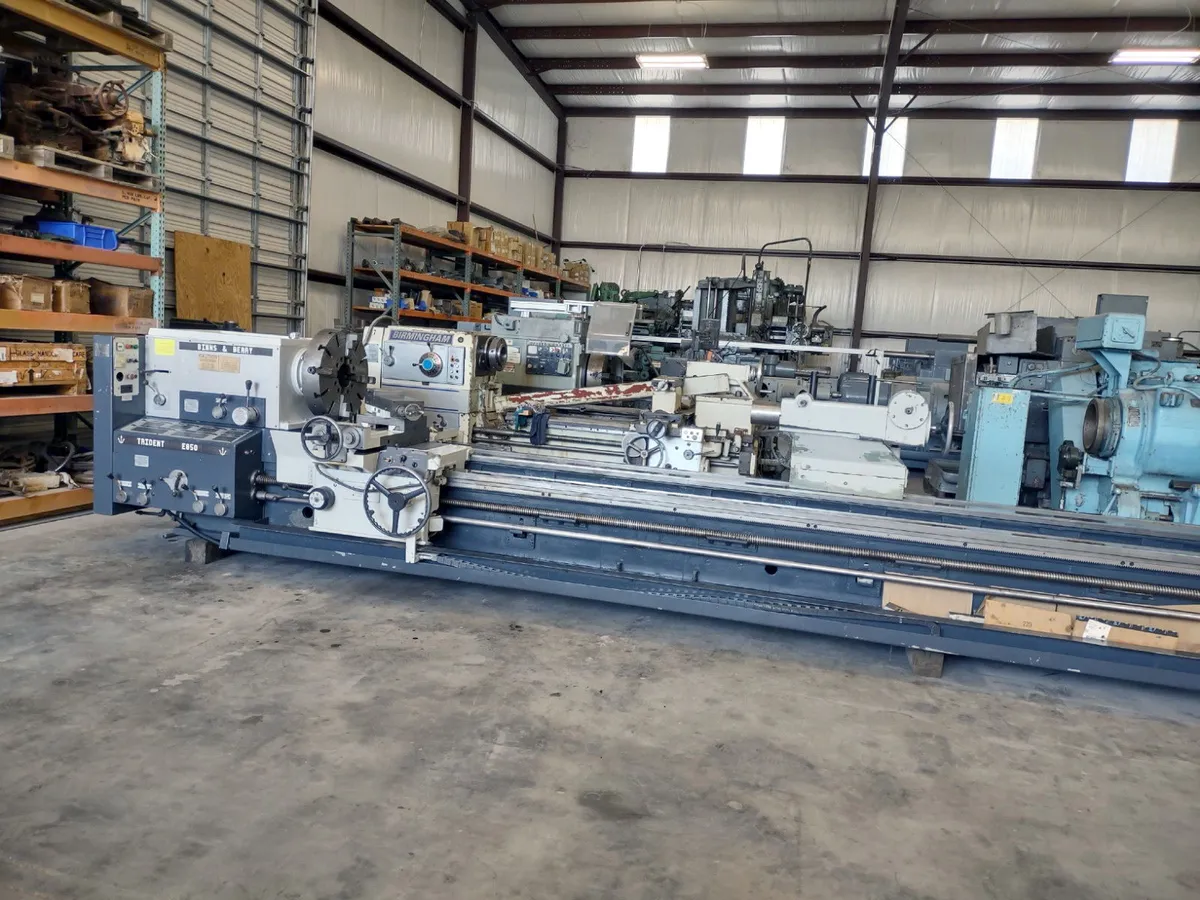

33" X 216" Binns & Berry Engine Lathe

Binns & Berry 33" x 216" ( 18 Ft. ) Engine Lathe

Swing Over Bedways.................................33.4" Diameter
Swing In Gap.......................................53.0 " Diameter
Swing Over Cross Slide.............................27.5" Diameter
Chuck Size.........................................24" 4-Jaw Chuck
Spindle Nose.......................................D1-11
Spindle Speeds.....................................0 to 1250 R. P. M.
Spindle Hole.......................................4.125" Diameter
Bed Width..........................................27" Wide
Cross Slide Travel.................................20"
Top Slide Travel...................................12"
Tailstock Quill....................................4 1/2" Diameter
Tailstock Quill Travel.............................11" Max.
Main Motor.........................................30 H.P.220/440/3/60
Floor Space........................................R-L 28' X F-B 72"
Height.............................................72"
Machine Weight.....................................22,000 Lbs.
Threading Inch & Metric............................Yes
Taper Attachment...................................Yes
Hardened & Ground Bedways..........................Yes
Rapid Traverse On Carriage.........................Yes
Coolant & Chip Pans................................Yes

Note:
Machine has cleaned, painted and cycled.
