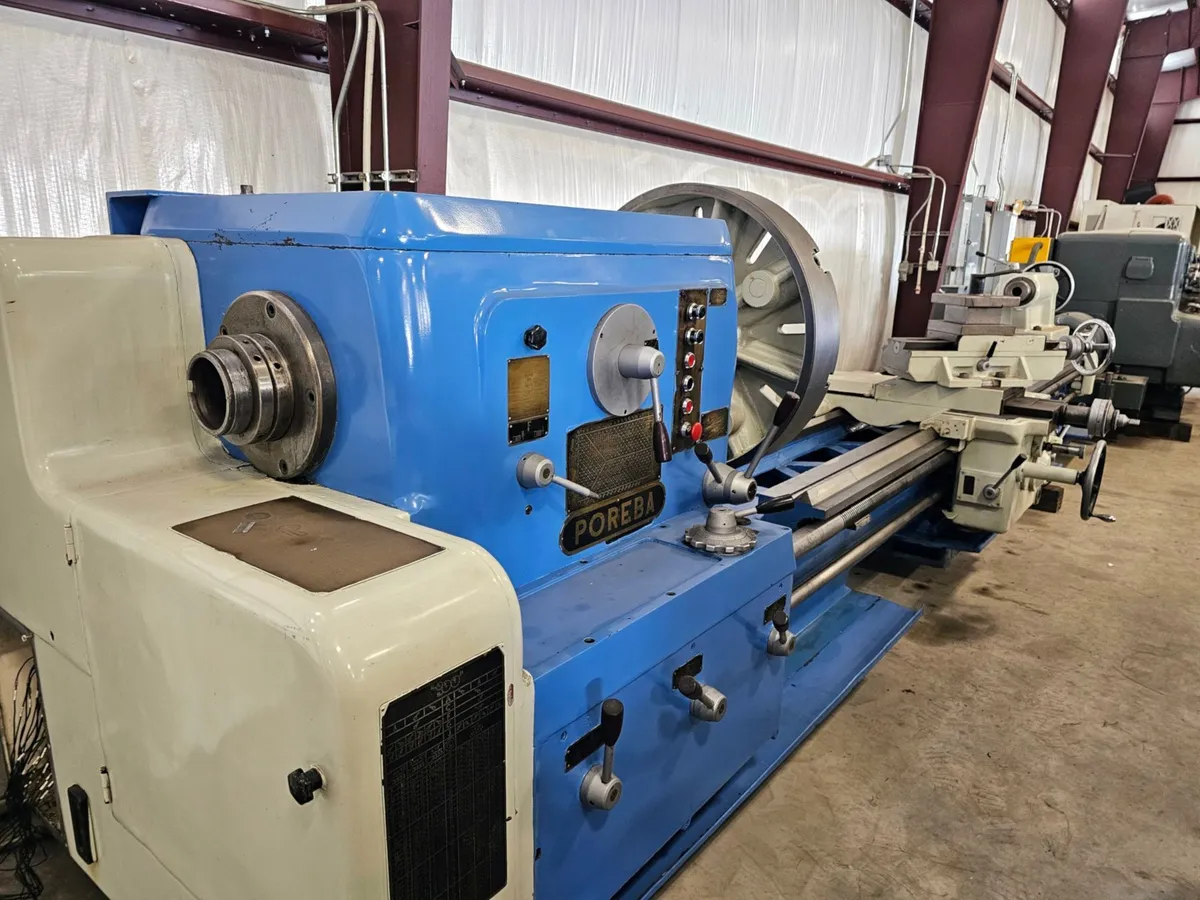

40"X172" POREBA ENGINE LATHE MODELTYPE TR100B

Swing Over Bed Ways.................................40"
Swing Over Cross Slide..............................29"
Swing In Gap........................................53"
Length In Front Of Nose.............................25"
Center Distance.....................................172"
Spindle Hole........................................4.250"
Spindle Speeds......................................6.3 To 630 Rpm's
Spindle Nose........................................A-2-11
Chuck Size..........................................32" 4-Jaw
Feeds Cross.........................................0.035 TO 5.0
Feeds Longitudinal..................................0.07 To 10.0
Threads Inch........................................1/2 To 60 TPI
Threads Metric......................................025 TO 120 MM
Lead Screw Diameter.................................2-3/4"
Tail Stock Taper....................................# 6 Morse
Tail Stock Travel...................................12"
Tail Stock Diameter.................................5-1/2"
Main Motor..........................................50 Hp.
Floor Space.........................................R-L 275" X F-B 84"
Machine Height......................................72"
Machine Weight......................................28,000 Lbs.
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Threads Inch........................................Yes
Threads Metric......................................Yes
Rapid Traverse......................................Yes

Note:
Machine has been cleaned, painted and cycled.
