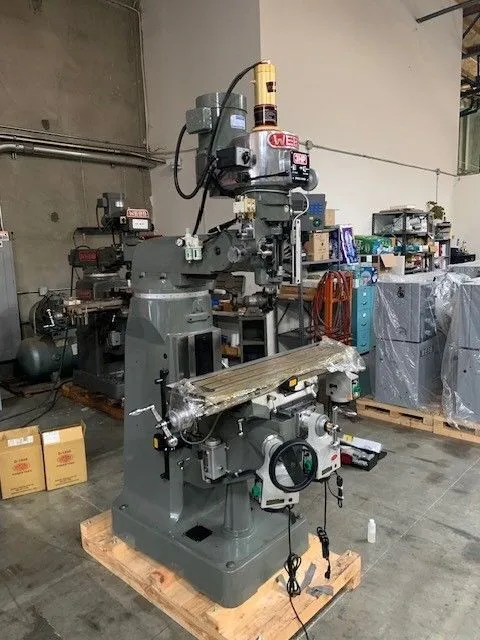

New 9" X 49" Webb 2VH-XL Knee Type Milling Machine Champ 2VH-XL

Table Size....................................................9" X 49"
Table Weight Capacity.........................................946 Lbs.
T-Slots On Table..............................................3
T-Slot Size...................................................5/8"
Spindle Taper.................................................R- 8
Spindle Speeds Low............................................80 To 550 Rpm's
Spindle Speeds Variable High..................................600 To 4,200 Rpm's
Spindle Feeds.................................................0.00015 To 0.0047 I.P.R.
Spindle Quill Travel..........................................5"
Quill Diameter................................................3.375"
Spindle Tilt..................................................+/- 45 Degrees
Spindle Swivel................................................+/- 90 Degrees
Spindle To Table Min. / Max...................................1-5/8" To 16-1/2"
Spindle Centerline To Column Min. / Max.......................4" To 25-5/8"
Saddle Travel In & Out........................................12"
Table Travel Longitudinal.....................................35"
Knee Travel...................................................16"
Main Motor....................................................3 Hp.
Floor Space Right To Left.....................................84"
Floor Space Front To Back.....................................84"
Height........................................................84"
Weight........................................................2,550 Lbs.

Manual Milling Machine Options And Prices:
Stock Number.....Description................................Price
Power Tool Lock:
WEBB-1035
Maxi Torque Power Draw Bar System for R-8 or 30 Taper.......$990.00
Webb-1036
Maxi Torque Power Draw Bar System for 40 Taper..............$990.00
Install Air Draw Bar .......................................$200.00
WEBB- 1200
Coolant Pump System.........................................$795.00
Install Coolant Pump System.................................$300.00
WEBB- 1205
Coolant/Chip Pan............................................$795.00
Riser:
WEBB- 2004....4” Riser Block with Hardware..................$750.00
WEBB- 2006 ...6” Riser Block with Hardware..................$795.00
WEBB- 2008....8" Riser Block with Hardware..................$845.00
WEBB- 2010....10” Rise Block with Hardware..................$890.00
Installation................................................$200.00
WEBB- 3100....Precision Ground Ball screws X and Y Axis.....$2,100.00
Power Feeds:
Servo Dynamo Power Table Feed:
SERVO Dynamo 150 Table Feed – Longitudinal..................$890.00
SERVO Dynamo 150 Table Feed – Cross.........................$890.00
SERVO Dynamo 150 Table Feed – Knee..........................$990.00
SERVO 150 Inch Pound Table Feed - Longitudinal..............$1,080.00
SERVO 150 Inch Pound Table Feed – Cross.....................$1,200.00
SERVO 200 Inch Pound Table Feed – Knee “ 200 Series”........$1,690.00
WEBB Factory Power Knee Feed Super Duty 4 and 5 Series ONLY $1,890.00
Table Feed Installation ....................................$250.00
Cross Feed Installation ....................................$225.00
Knee Feed Installation......................................$425.00
Tooling:
WEBB -1111
11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series........$189.00
WEBB -1126
6” Precision Machinist Vise ................................$780.00
6” Precision Vise Economy...................................$670.00
WEBB- 1152....52 Piece Work Hold Down Clamp Set.............$169.00
WEBB..1170-8..8 Inch Rotary Table / vert. and Horiz.........$995.00
WEBB..1170-8..10Inch Rotary Table / vert. and Horiz.........$1,295.00
WEBB..1170-12.12 Inch Rotary Table / vert. and Horiz........$1,490.00
D.R.O. System:
Newall 2 Model NMS800 Axis Table, Cross Installed ..........$3,750.00
Newall 3 Axis Model NMS800 Table, Cross And Knee Installed..$4,450.00
Mitutoyo Digimatic Quill Scale With Bracket Installed.......$950.00
Voltage:
440 Volts 3 Phase...........................................$425.00
Freight:
Freight Estimate From California ...........................$2,350.00

Prices Subject To Change Without Notice.

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
