48" New Rotary Dura Blast Cabinet And Dust Collector System

We provide a one-year warranty, full technical support, and readily available replacement parts.
The machine is considered a plug and play system and is easily moved by utilizing the built-in fork
pockets to locate the machine. It is a free-standing cabinet that has a heavy duty, lined, 48” table
with a 5000 lb. capacity for material handling. It has one direct drive 15HP, 7-blade blast wheel,

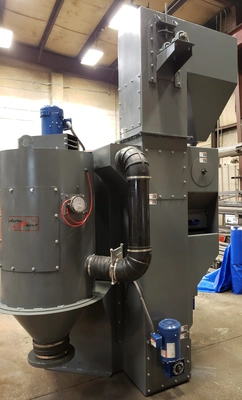

and our dust collector can be mounted directly to the machine to save additional floor space. The

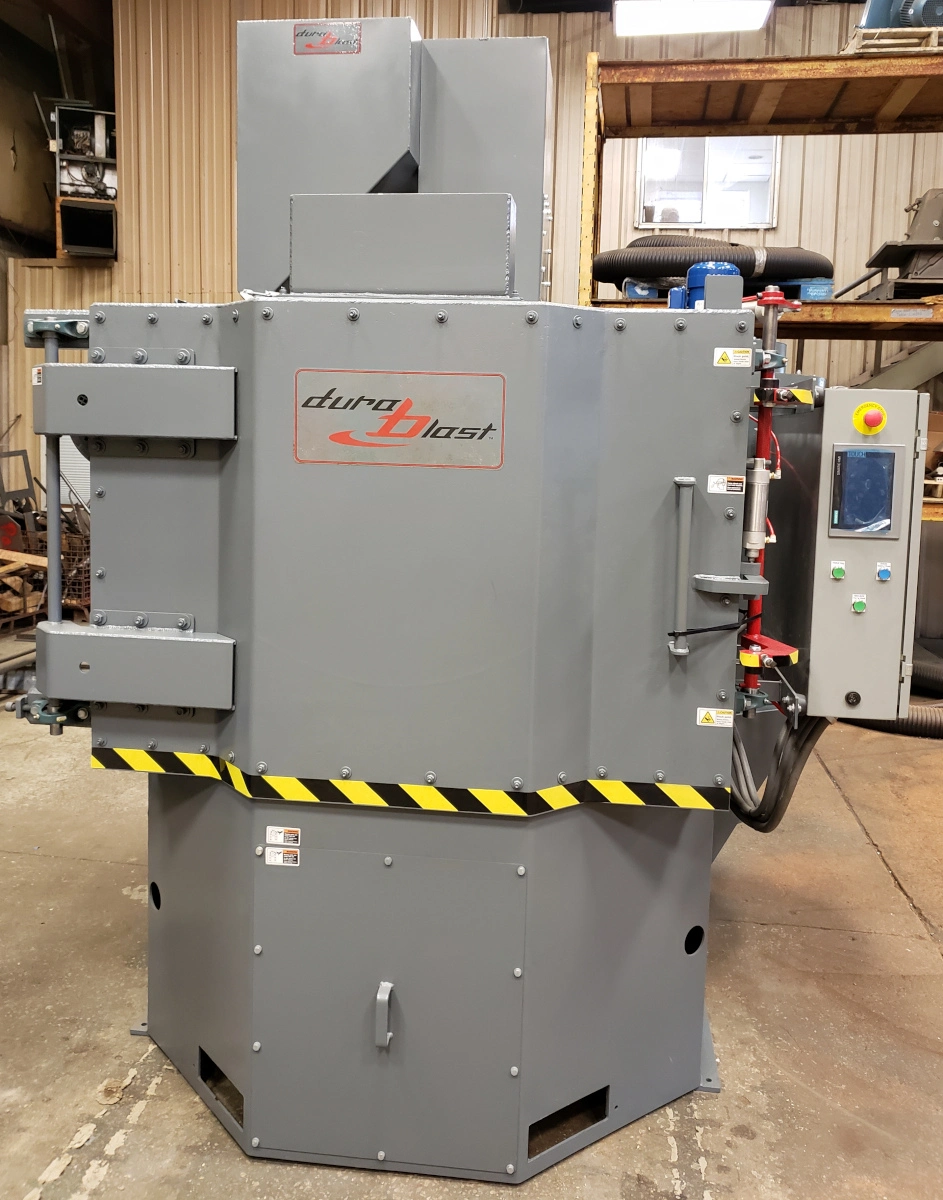

PLC/Touch Screen controlled, electrical panel is mounted on the right side of the cabinet and is
protected by vibration dampening mounts.
We utilize a double elevator system to fully air wash all the abrasive thrown by the blast wheel.
The two-belt system allows us to keep the air wash and trash clean-out at eye level, so it is easier
to adjust and maintain. This design also allows us to keep the overall height to a minimum, by
removing the air wash from above the hopper.
Many of our “standard” features are add-ons and upcharges with other manufacturers,
so pay close attention to quotes on similar machines, to see what you are getting for your money.

SPECIFICATIONS – DURABLAST 48” TABLE
CENTRIFUGAL BLAST WHEEL
Wheel: The direct drive blast wheel revolves at 3600 RPM for maximum abrasive velocity.
The blast wheel is available in 12”, 13.5” and 15” diameters. Balanced wheel components assure
smooth operation.
Blades: Long life, abrasive resistant cast alloy blades, matched by weight for proper wheel balance.
Control Cage: Dial type cage.
Blast Wheel Housing: Available in ¼” mild steel, AR steel, or manganese steel. All liners are
replaceable.

CABINET CONSTRUCTION
Outer Cabinet: AR 500 construction, fork truck pockets for easy placement.
Cabinet Lining: Replaceable cast alloy liners in direct blast area, options to fully line the blast
cabinet area, or just line certain areas as needed.
Worktable: 48” diameter worktable is constructed of 1/2” steel plate. Table liner is 3/8” abrasive
resistant steel. Cabinet cutout makes worktable accessible by overhead hoist. Heavy duty table
support bearings are completely enclosed for protection from stray abrasive.
Table Drive: Chain driven by an electric motor and gear reducer located under the table. Table
revolves at 4 RPM.
Double-Lock Door: Our 48-table door has both a pneumatically operated air cylinder clamp, and a
pneumatically operated vertical door pin. If power or air is cut to the machine, the door cannot
open, and we integrate a timer in case the E-Stop is activated, so you have to wait for the wheel to
slow down before you can open the door. Rubber door seal helps prevent abrasive escape. A
mangalloy door skin helps reduce wear on the inside of the door, and does away with unwanted
rubber liners.
Work Loading Height: 36”
Maximum Working Dimensions: 48” diameter, 19” high at edge of table and 37” height at center
of table.
Workload 7,055 Capacity: 5,000 pounds.

ABRASIVE CLEANING & RECOVERY SYSTEM
Elevator and Air Wash: Double V-belt system that carries the abrasive to an adjustable, eye-level
separator where 100% of the abrasive is air washed, then cleaned abrasive is carried up to the
abrasive storage hopper for feeding of the blast wheel. Easy access screens are in place to help
keep larger, foreign items from damaging the blast wheel components. Elevator belts are adjustable
to prevent the belts from slipping as they wear.
Abrasive Flow: Manually adjustable, butterfly type abrasive valve for setting blast wheel amperage
and controlling abrasive flow. Optional Magna-Valve available for automatic adjustment with
different abrasives or Shot Peening use.
Abrasives: Most standard shot or grit type abrasives can be used, and the initial abrasive charge is
1000 lbs.

Dura-Blast Six16 Dust Collector, 800 CFM, Reverse Pulse,
6 Cartridge, 240/480-volt 3ph electrics, 48TB & 6BB $7,055.00 Included

Separator: 12” gravity lip has adjustable abrasive spreader and refuse gate for maximum
contaminate removal.

SPECIFICATIONS – DuraBlast 48” TABLE BLAST

VENTILATION
*Optional Dust Collector: Requires 800 CFM
Power & Air Requirements
Control Panel: Nema 12 electrical enclosure, optional voltages available, 3 phase, PLC/Touchscreen
controlled, standard automated cycle, digital cycle timer, various adjustable machine timers,
audible alarm, heavy duty push buttons, ammeter, and overload protection.
Required Air: 80-100 PSI at 5-10 cfm to operate door latch, door safety pin, abrasive valve, and
dust collector cleaning cycle.
Electric Motors: 15HP blast wheel motor, 1HP table drive motor, 1HP elevator motor, and 2HP
dust collector motor.
Optional Blast Wheel Configuration: Two (2) 10HP, 3600RPM blast wheels

Standard Operating & Safety Information
Safety: Blast wheel will not operate if door is not closed. Door pin safety system keeps the door
from opening, even if all power is lost. Standard guards, covers, warning labels, and electrical
protections in place.
Noise: Approximately 80 DB if properly maintained and in good functioning condition.
Shipping Information: Approximately 5600 lbs., ships in one piece on a single-drop trailer, and
overall footprint is 7’9” wide x 7’9” deep x 10’ tall.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Dura-Blast 48” Table Blast
Standard Features included in Price:
(1) 15 HP Direct Drive 12” Blast Wheel Assy. Mounted on hip.
1/2” White iron alloy Liners in line with Blast Wheel
Mangalloy and AR500 Blast Cabinet and Door
Dual V-Belt Elevator Belts with Poly Buckets
Digital Blast Cycle Timer, Hour Meter, Amp Meter on Touch Screen
AR500 Table Liner
12” Single Lip Separator with removable screen above separator

Options:
Auto Abrasive Adder Hopper..................................$1,850.00
Heavy Duty Wheel package....................................$283.00
Magnavalve (each)...........................................$5,100.00
Cast Alloy Liners on RH Wall................................$3,675.00
Cast Alloy Liners Roof......................................$3,675.00
Cast Alloy Liners Back Wall.................................$3,675.00
Manganese Table Liner.......................................$790.00
Variable Freq. Drive Blast Wheel 460/3/60...................$4,100.00
Variable Freq. Drive Blast Wheel 230/3/60...................$4,725.00
Peening Paclage.............................................$10,000.00
Foundry Duty Elevator (2 – 20” Separators)..................$12,600.00
2nd Blast Wheel Option (2) 10Hp Blast Wheels................$8,500.00

DuraBlast 616 Dust Collector
(Pulse Type, 6 Cartridges, 800 cfm, Magnehelic Gauge)
616 (mounted on machine, used with 5-Gallon Bucket)........$8,950.00
616 (not on machine, for use with 55-Gallon Barrel)........$10,900.00
Six32 Dust Collector for 2-Wheel Option, 1050 cfm...........$11,450.00
HEPA After Filter...........................................$1,325.00
Photohelic Gauge Kit........................................$725.00
Silencer....................................................$725.00

Dura-Blast Shot Trap (6” inlet/outlet)......................$1,825.00
Foundry Duty option requires different dust collector:
DuraBlast 1032 Dust Collector, 1500 cfm.....................$13,125.00
(Pulse Type, 10 Cartridges, 1,500cfm, 55-gallon drum)
HEPA After Filter...........................................$2,900.00
Photohelic Gauge Kit........................................$800.00
Silencer....................................................$975.00
Ductwork Quoted on request

***Prices shown are in US Dollars and are exclusive of all federal, state,
and local, excise, sales, use and similar taxes and are subject to change
without notice.

Terms: 50% Down with Purchase Order
40% Due at Machine Runoff
10% Due 15 days after Shipment

Freight will be included on final 10% invoice unless customer arranges own
shipping.
Quote Valid for 30 Days.
Prices do not include transportation or freight charges.
We strongly encourage a representative from your company to be present at
runoff.
Warranty
Please refer to the following page for the specifics of our one-year warranty. All new Dura-Blast
equipment includes our standard one-year warranty.
We truly appreciate the opportunity to do business with your company and
look forward to quickly providing you the best valued abrasive blast parts
and equipment.
