SPECIFICATIONS:
ARM LENGTH: 5′

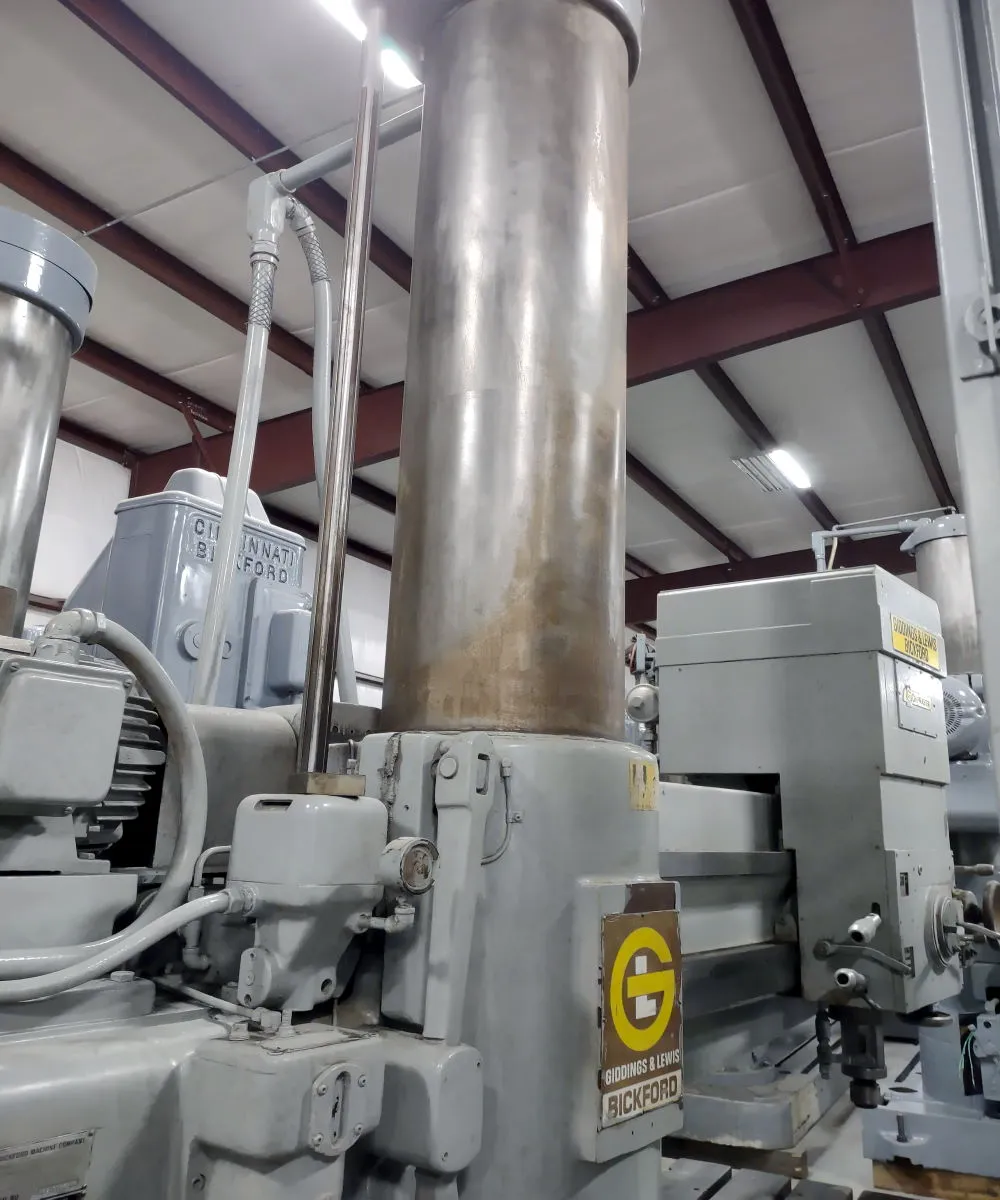

COLUMN DIAMETER: 13″
SPINDLE SPEEDS: (32) 15-1200 RPM
MORSE TAPER IN SPINDLE: # 5
DIAMETER OF SPINDLE AT POINT OF DRIVE: 3 1/4”
FEED RANGE: (9) .006 – .125 IPR
FEED TAP LEADS: 8 & 11 1/2 TPI
MINIMUM DISTANCE FACE OF COLUMN TO SPINDLE: 15″
HORIZONTAL TRAVERSE OF HEAD ON ARM: 48″
DISTANCE SPINDLE TO BASE: MINIMUM: 27″
DISTANCE SPINDLE TO BASE: MAXIMUM: 87″
TRAVEL OF SPINDLE IN HEAD: 20″
TRAVERSE OF ARM ON COLUMN: 55″
HEIGHT OF BASE: 12"
MAIN DRIVE MOTOR:15 HP
ELECTRICS: 230/ 460 V/ 3 PH/ 60 HZ
FLOOR SPACE: 120″ x 60″
Machine Height: 120"
WEIGHT: 24,000 LBS
Plain Bos Table 24" X 30" X 24" H
POWER CLAMPING TO COLUMN AND HEAD
POWER RAPID HEAD TRAVERSE
HYDRAULIC PRE-SELECT OF FEED AND SPEEDS
HYDRAULIC POWER CLAMPING OF HEAD AND ARM
HYDRAULIC POWER ELEVATION OF ARM ON COLUMN
COOLANT SYSTEM
AUTOMATIC LUBRICATION TO HEAD
CLUTCH ON SPINDLE FEED
